SPECIFICATIONS

Antenna: External Antennas

Audio Interface: RCA Out & OPTICAL Out

Bluetooth Version: V5.2

Brand Name: NONE,Lavaudio

Current: <150mA

Distance: Up to 164ft (50m) in open air and up to 50-70ft (20-30m) indoors

High-concerned chemical: None

Input Power: 5V DC

Model Number: DS200Pro

Origin: Mainland China

Place of Origin: Guangdong, China

Private Mold: Yes

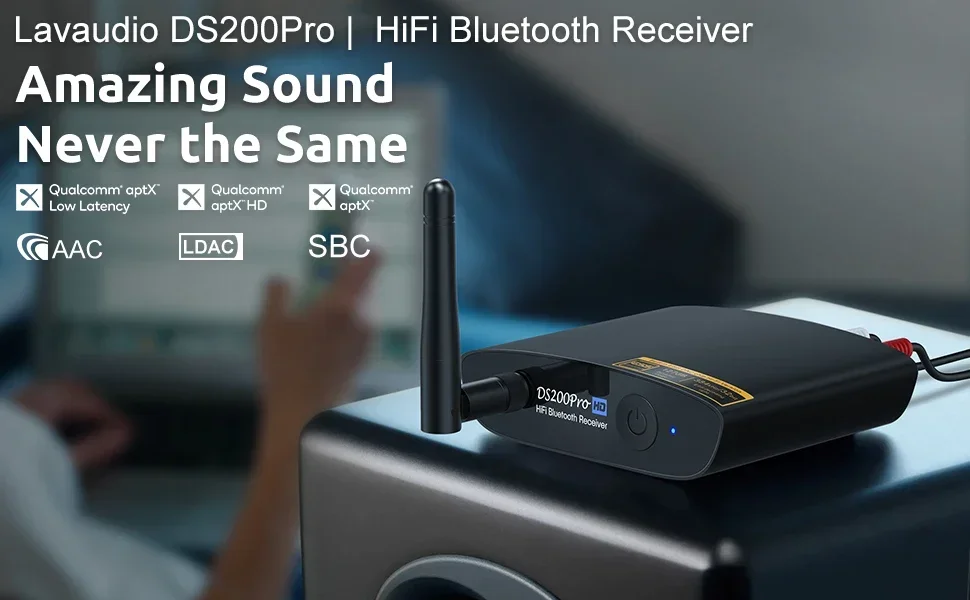

Product name: HiFi Bluetooth Receiver

Use: DOOR

Warranty: 12 Months

Working temperature: -20 ~ + 60 ° C





Product Paramenters

Product Name	BlUETOOTH HiI-FiI RECEIVER
Wireless Momel/Chip	Bluetooth 5.2/CSR8811
Built-in individual DAC Chip ESSSABRE9018(121dB/384KHz/32bit)

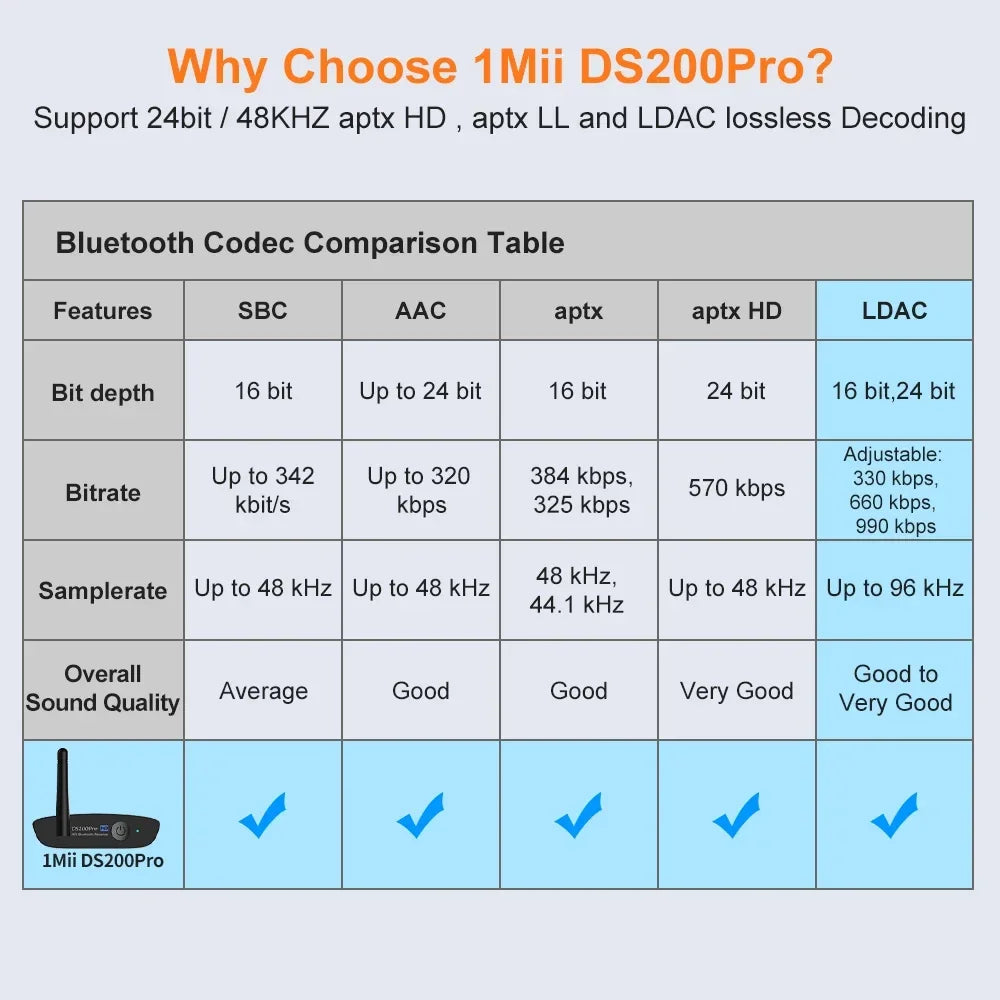

Complies with	A2DP/AVRCP/HFP/HSP/ SBC/AAC/APTX/APTX-LL/APTX-HD/APTX Adaptive/LDAC
Audio Interface	RCA Out & OPTICAL Out
RCA ouput voltage	1.8Vrms/0dB
Antenna	External Antenna
Input Voltage/ Current	5V DC/<150mA
Working distance	Up to 164ft (50m) in open air and up to 50-70ft (20-30m) indoors
Working temperature	-20 ~ + 60 ° C
Product Size	113 x 92 x 25.5mm (110g)
Package Size	14.2 x 12.4 x 5.7cm (345g)



Products Description

Product compatibility

1. DS200 Pro Bluetooth Receiver for Home Stereo is featuring Bluetooth 5.2 (CSR8811) chip which is a premium solution delivering high quality wireless audio performance and supporting for aptX, aptX LL, aptX HD, AAC, LDAC decoding.

2.Featuring with ESSSABRE9018 Reference DAC which is a high-performance audio chip with 32-bit, 384kHz PCM data, delivers a DNR of up to 127dB and THD+N of –120dB, a performance level that will satisfy the most demanding audio enthusiasts.

3. Build-in Nichicon Multiple-stage Audio Capacitor Array which is the high-end audio capacitors make the DS200Pro sound outstanding,with deep bass, more flexible, and more delicate and clear treble.

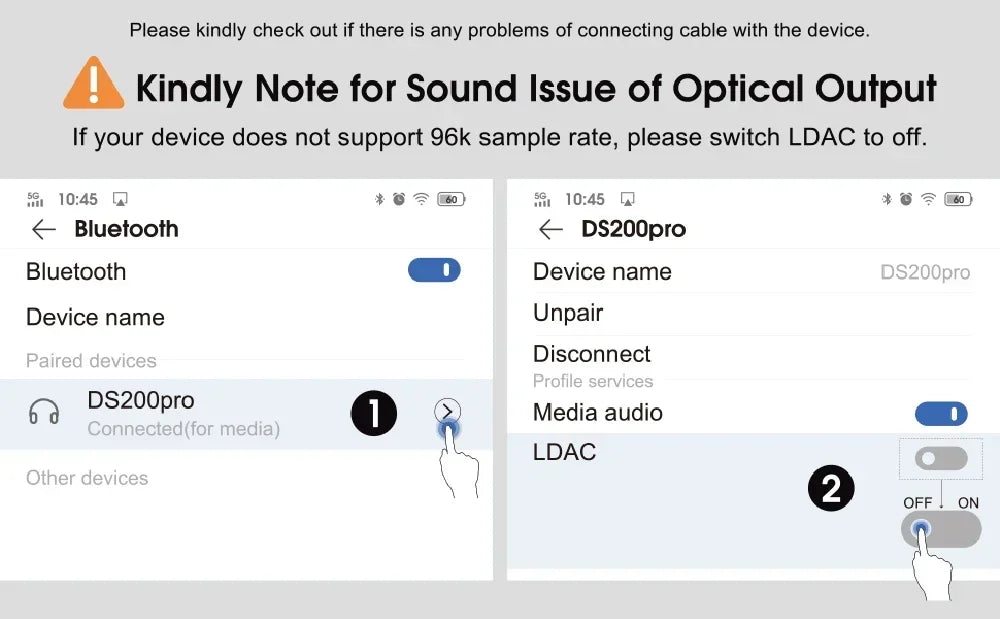

4.LDAC allows you to enjoy high quality wireless audio via Bluetooth. With 3x the data transmitted, provides an enhanced wireless listening experience for all your music, supports the transfer of 24-bit, 96 kHz (Hi-Res) audio.

5.Utilizing Class 1 Bluetooth technology and designed with external gain antenna. DS200 Pro Bluetooth receiver can achieve a range of up to 100ft.

6.DS200Pro can access and play music from any music apps such as Tidal, Spotify, Qobuz and Pandora, podcasts etc. Open the door of unlimited HiFi music for you at any time, bringing you a convenient and high-quality lifestyle

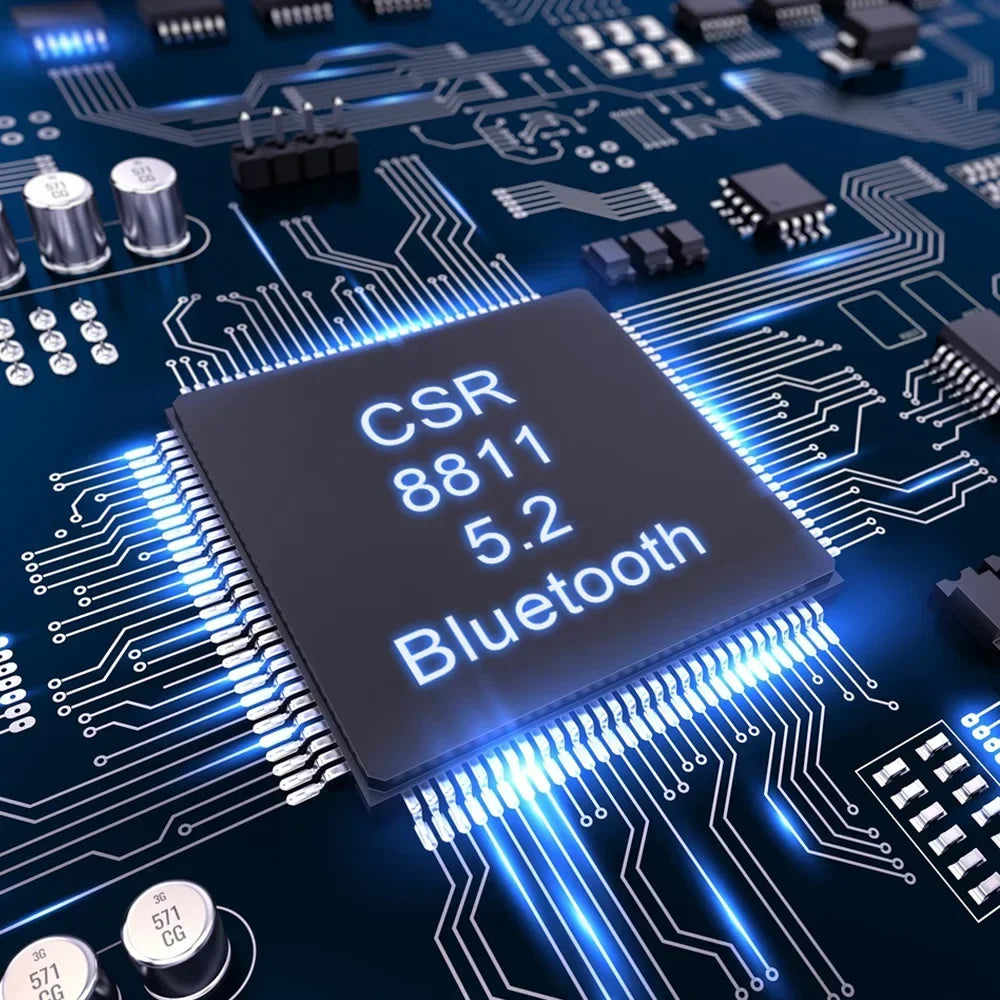

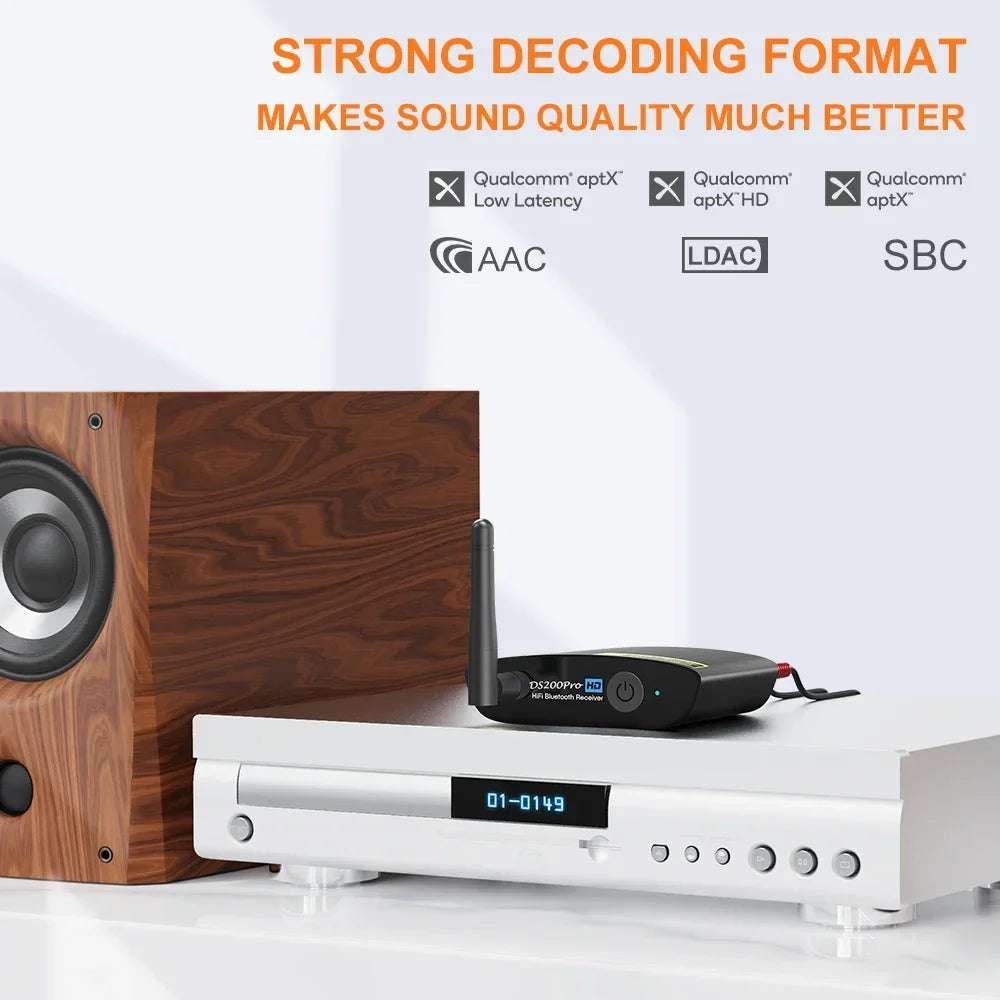

Premium Bluetooth Chip

DS200Pro Bluetooth Receiver for Home Stereo is featuring Bluetooth 5.2 chip which is a premium solution delivering high quality audio performance and supporting for APTX, APTX LL, APTX HD, AAC, LDAC decoding.

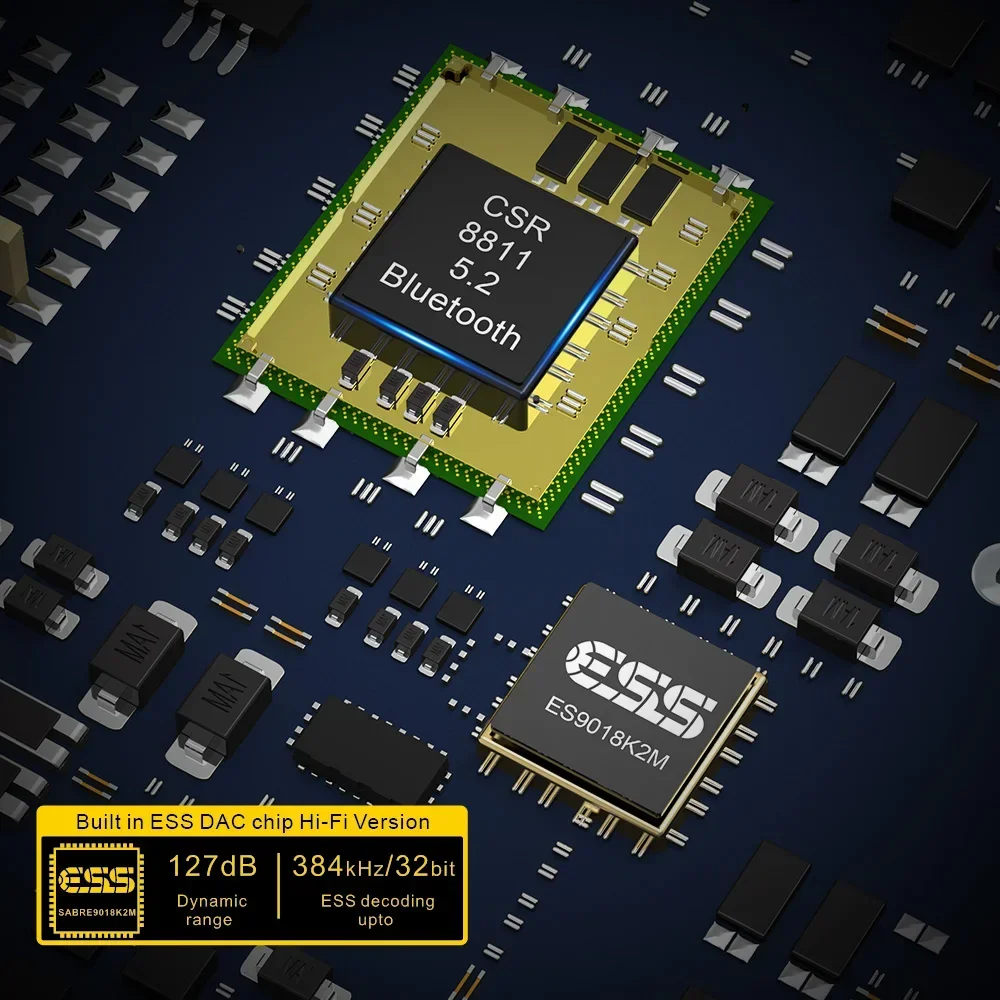

Audiophile HiFi DAC

Featuring with ESSSABRE9018 Reference DAC which is a high-performance audio chip with 32-bit, 384kHz PCM data, delivers a DNR of up to 127dB & THD+N of –120dB, satisfy most demand audio enthusiasts.

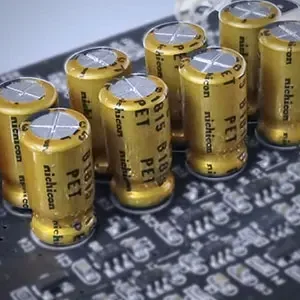

Professional Audio Capacitor

Build-in Nichicon Multiple-stage Audio Capacitor Array which is the high-end audio capacitors make the DS200Pro sound outstanding, with deep bass, more flexible, and more delicate and clear treble.

CD Sound Quality

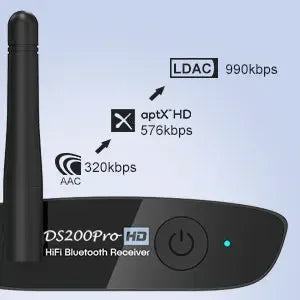

LDAC allows you to enjoy high quality wireless audio via Bluetooth. With 3x data transmitted, provides an enhanced wireless listening experience for all your music, supports the transfer of 24-bit, 96 kHz (Hi-Res) audio.

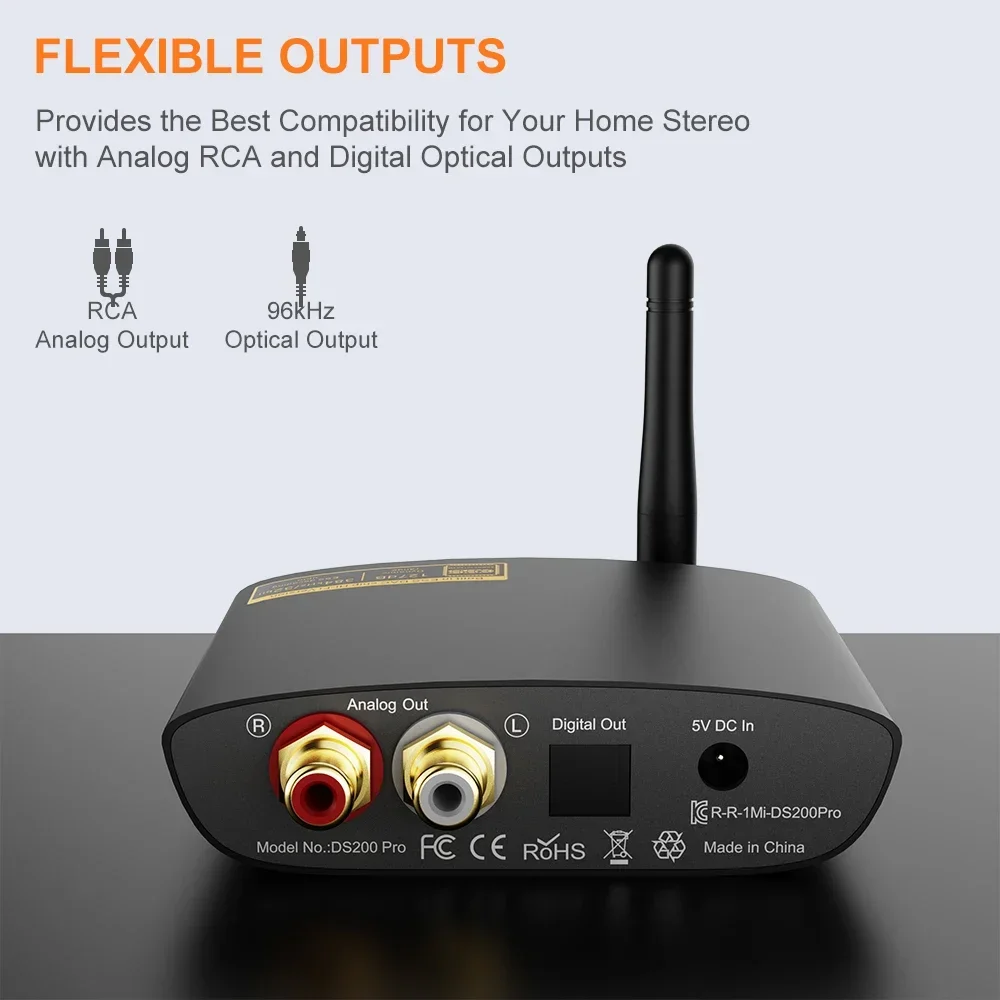

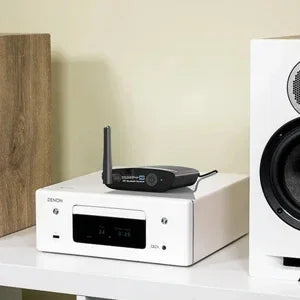

Flexible Connectivity

Supports both analog (RCA / 3.5mm AUX audio) and digital (optical) outputs, provides ultimate compatibility with your existing stereo equipment.

Extended Wireless Range

Utilizing Class 1 Bluetooth technology and designed with external gain antenna. DS200Pro Bluetooth receiver can achieve a range of up to 100ft.

Wide Compability

DS200Pro can access and play music from any music apps such as Tidal, Spotify and Pandora, podcasts etc. Open the door of unlimited HiFi music for you at any time.

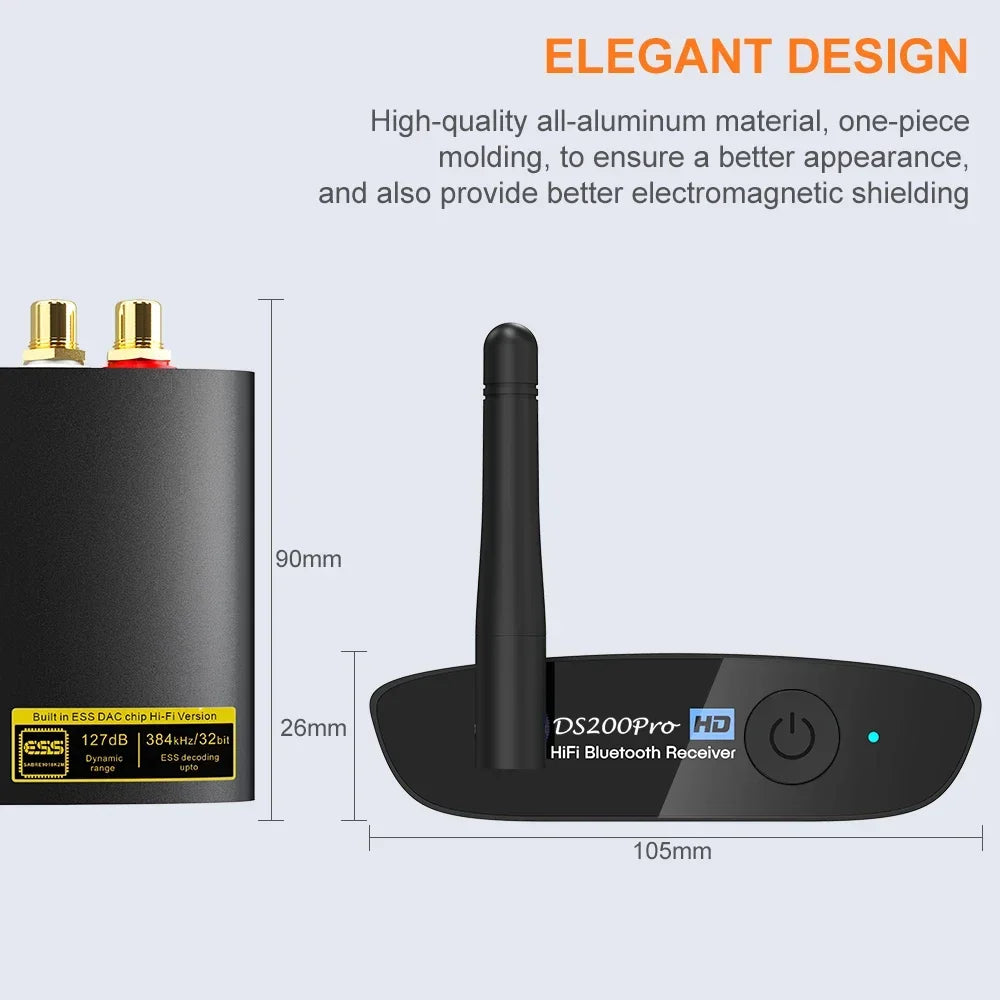

Elegant Design

High quality all-aluminum material, one-piece molding, to ensure a better appearance, and also provide better electromagnetic shielding.

How to power it?

For a better sound experience, please make sure to use a power adapter for power supply, power adapter comes in the device box.**This way will eliminate ground loop noise.**
