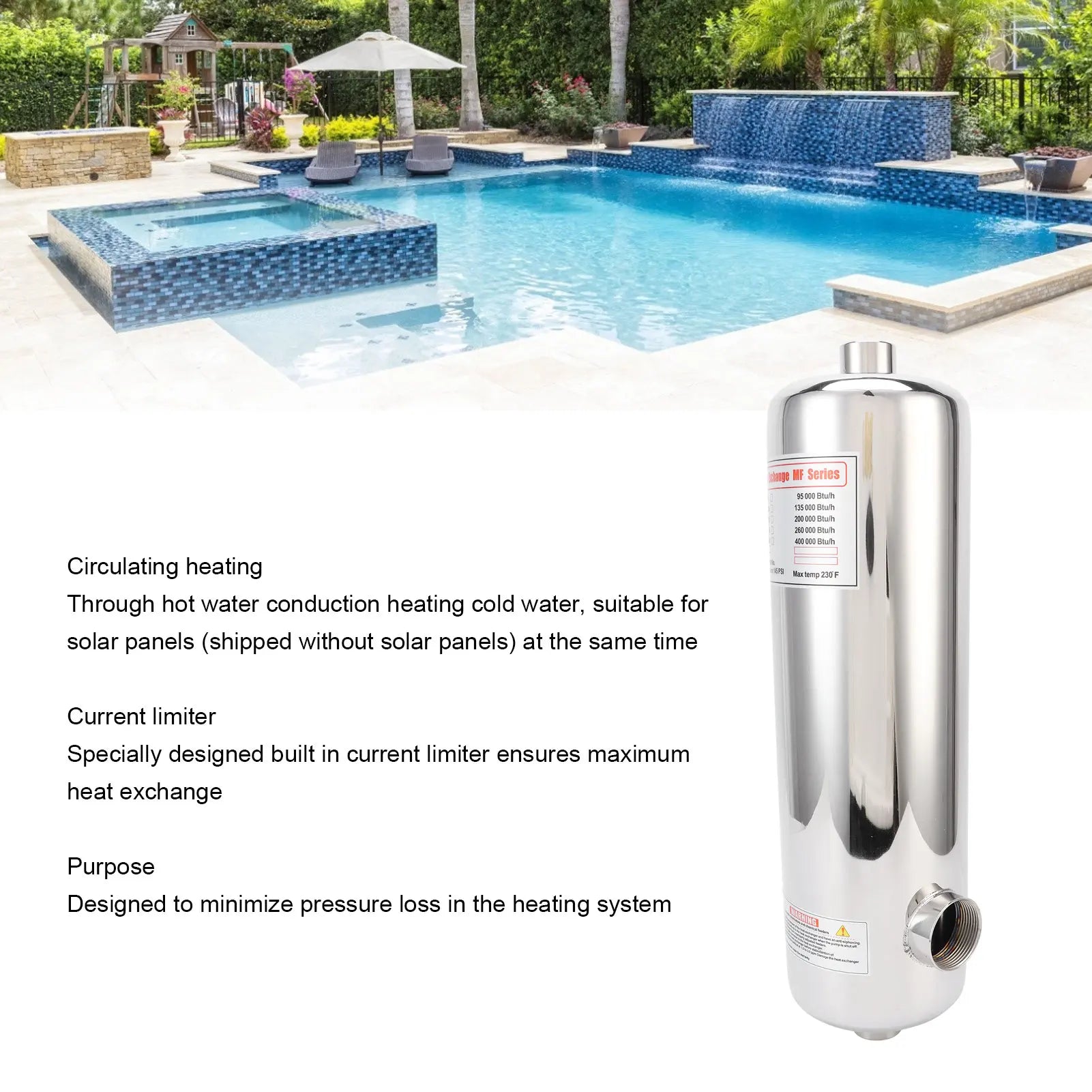

1. Cyclic Heating: It is heated by water and conducted by hot water, it turns cold water into hot water by heat energy and heats cold water, suitable for the simultaneous use of solar panels (shipped without solar panels).

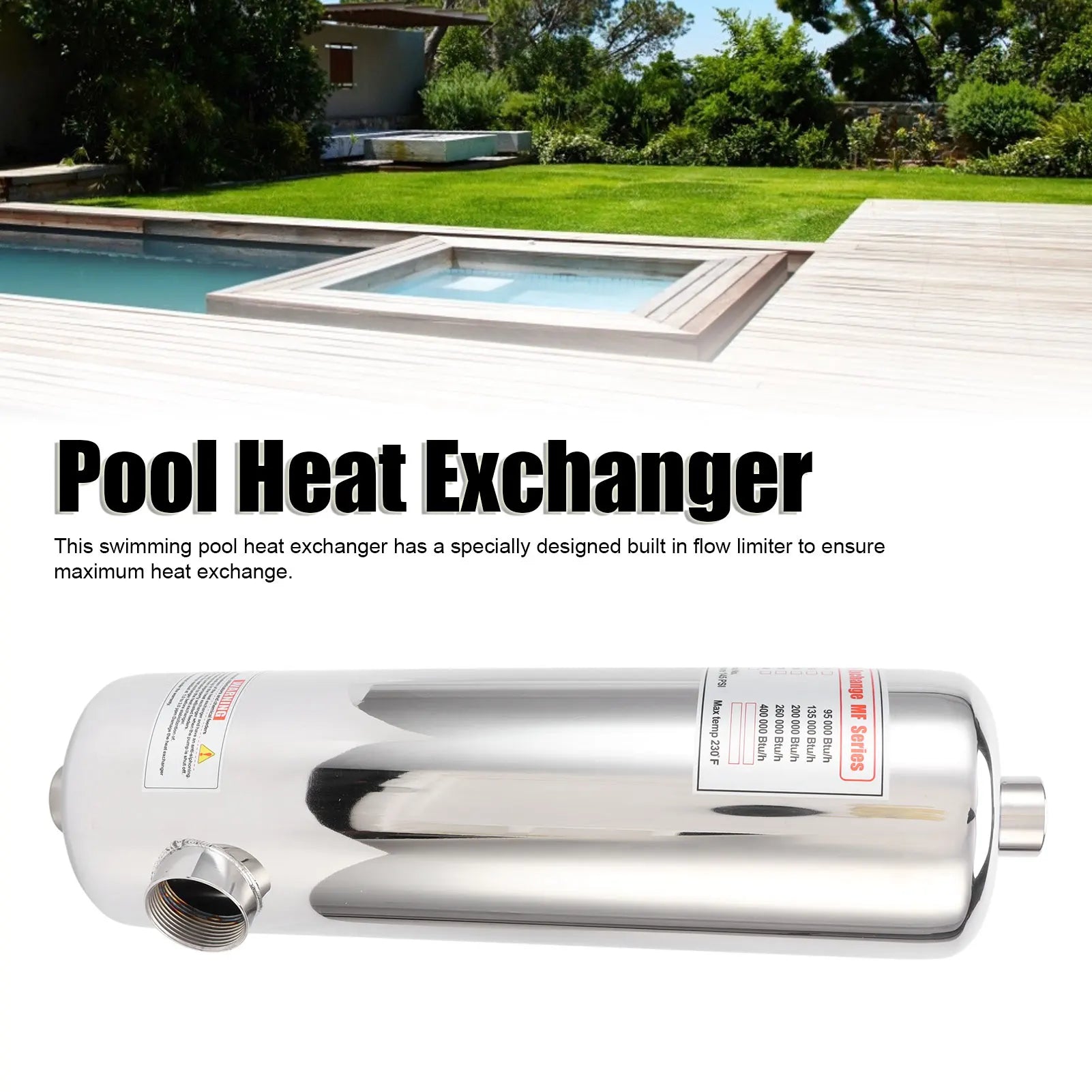

2. Built in Flow Limiter: This swimming pool heat exchanger has a specially designed built in flow limiter to ensure maximum heat exchange.
3. Purpose: The thermostat heating equipment is designed to minimize the pressure loss in the heating system and save energy.

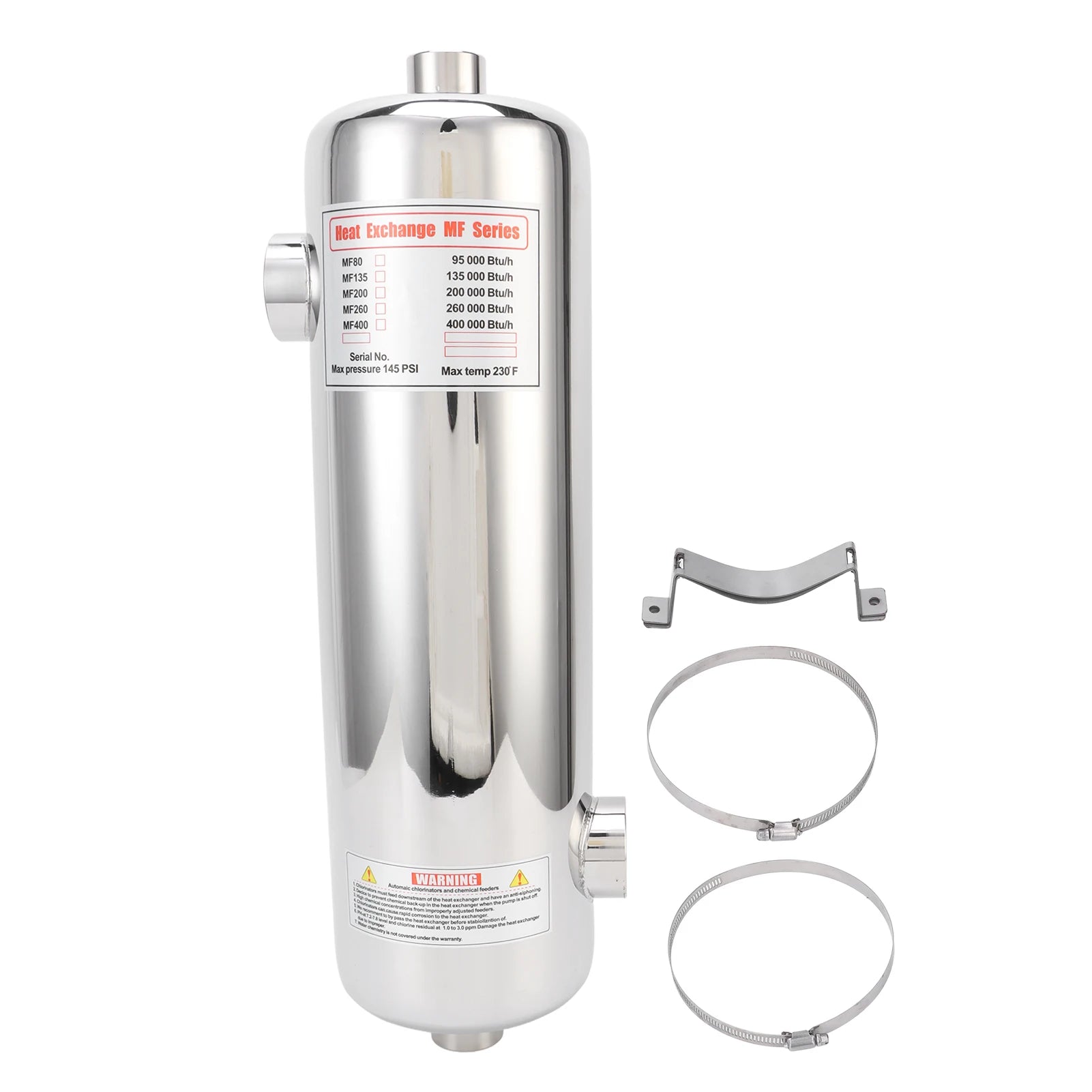

4. Compact: It is small and compact, requires minimum installation space, light in weight, and equipped with a fixed bracket, which is convenient for installation and use.
5. Corrosion Resistance: This heat exchanger is made of premium corrosion resistant stainless steel, which is sturdy and has a long service life.

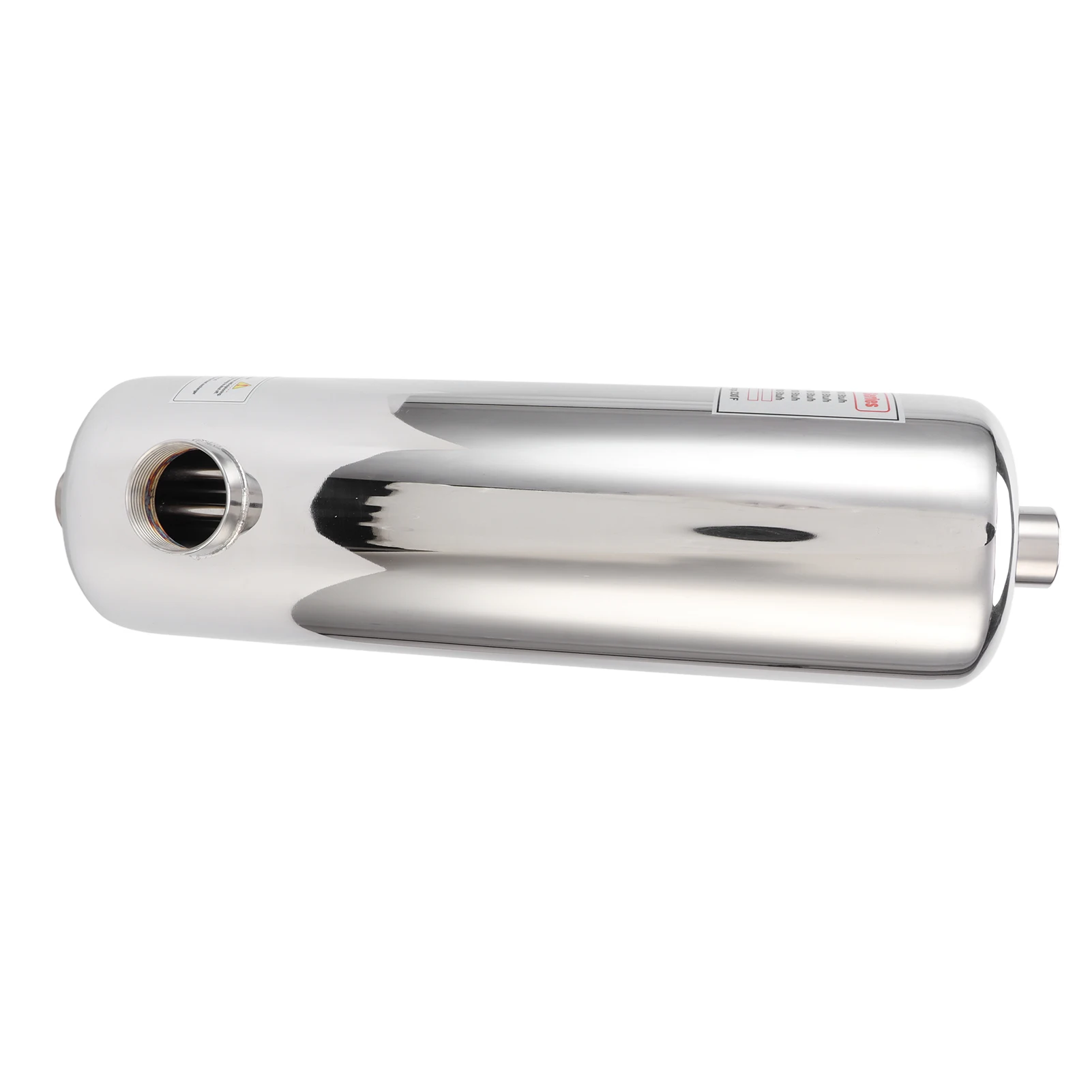

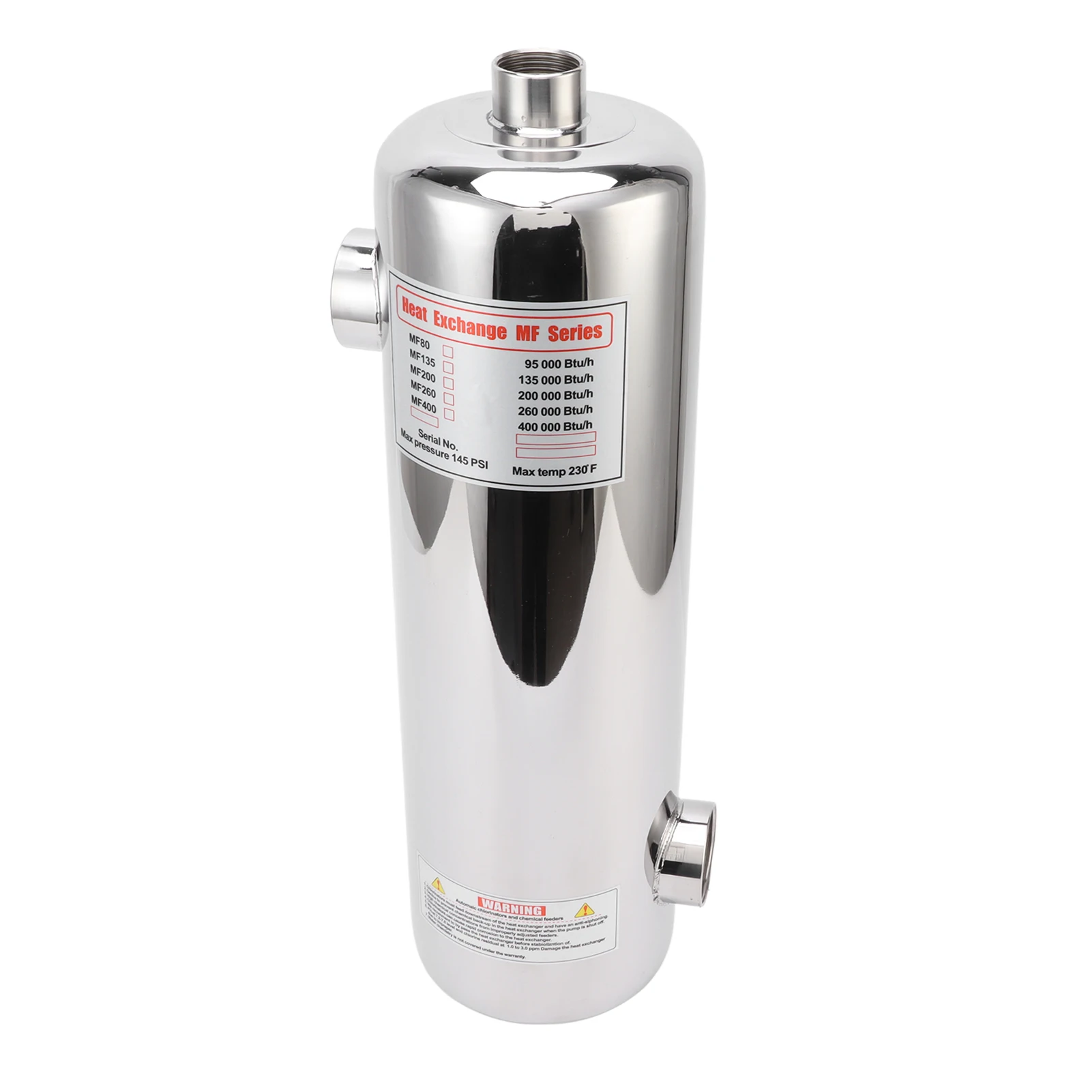

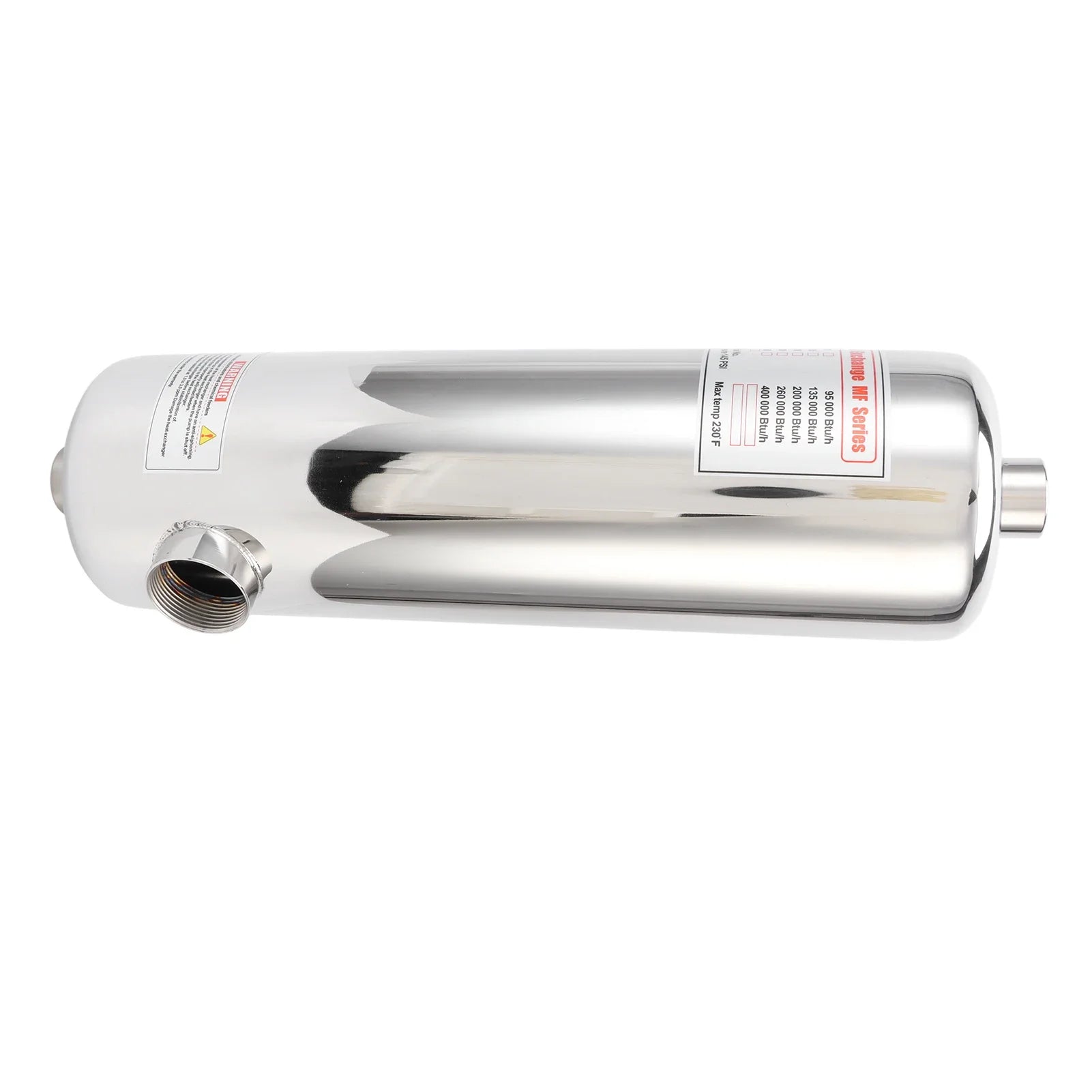

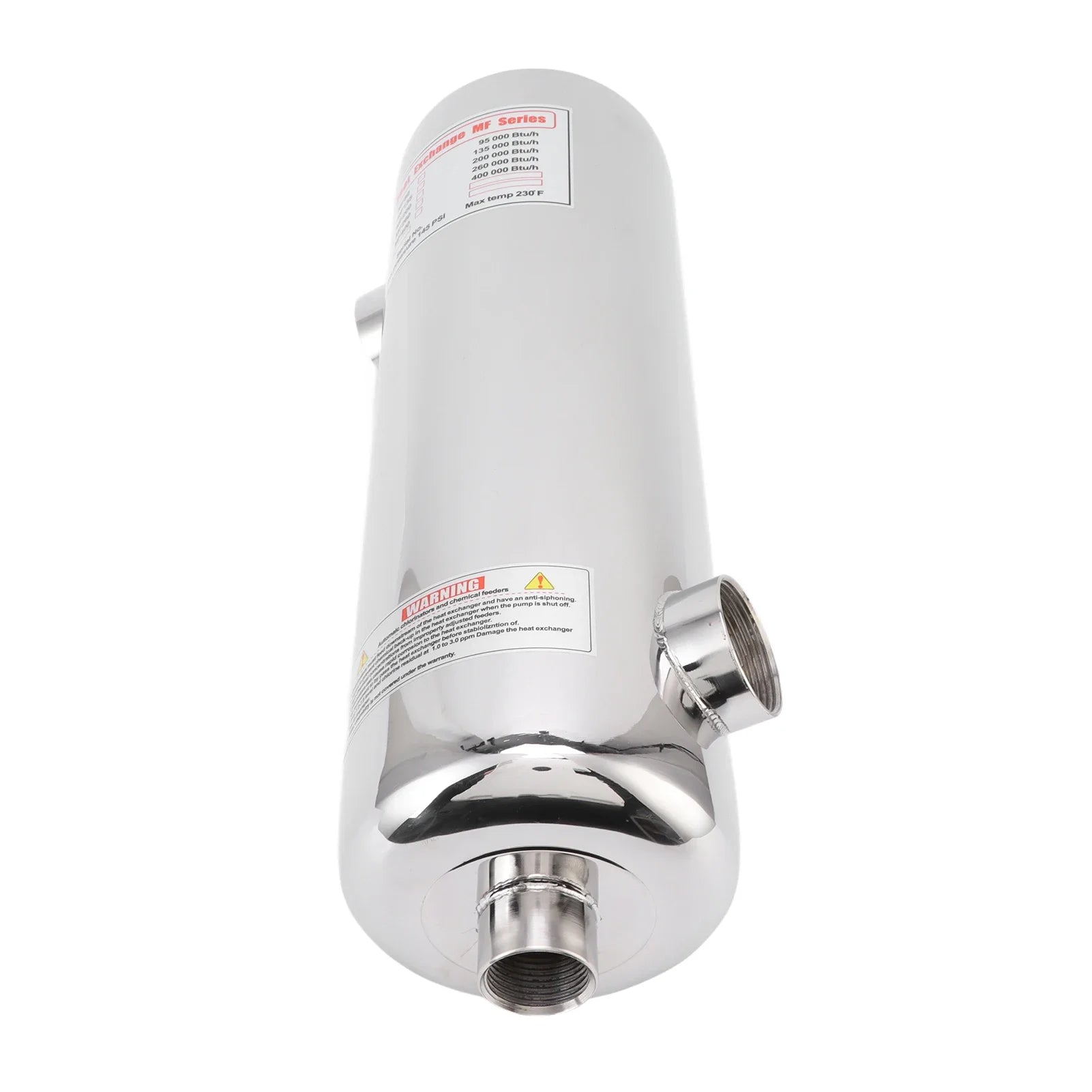

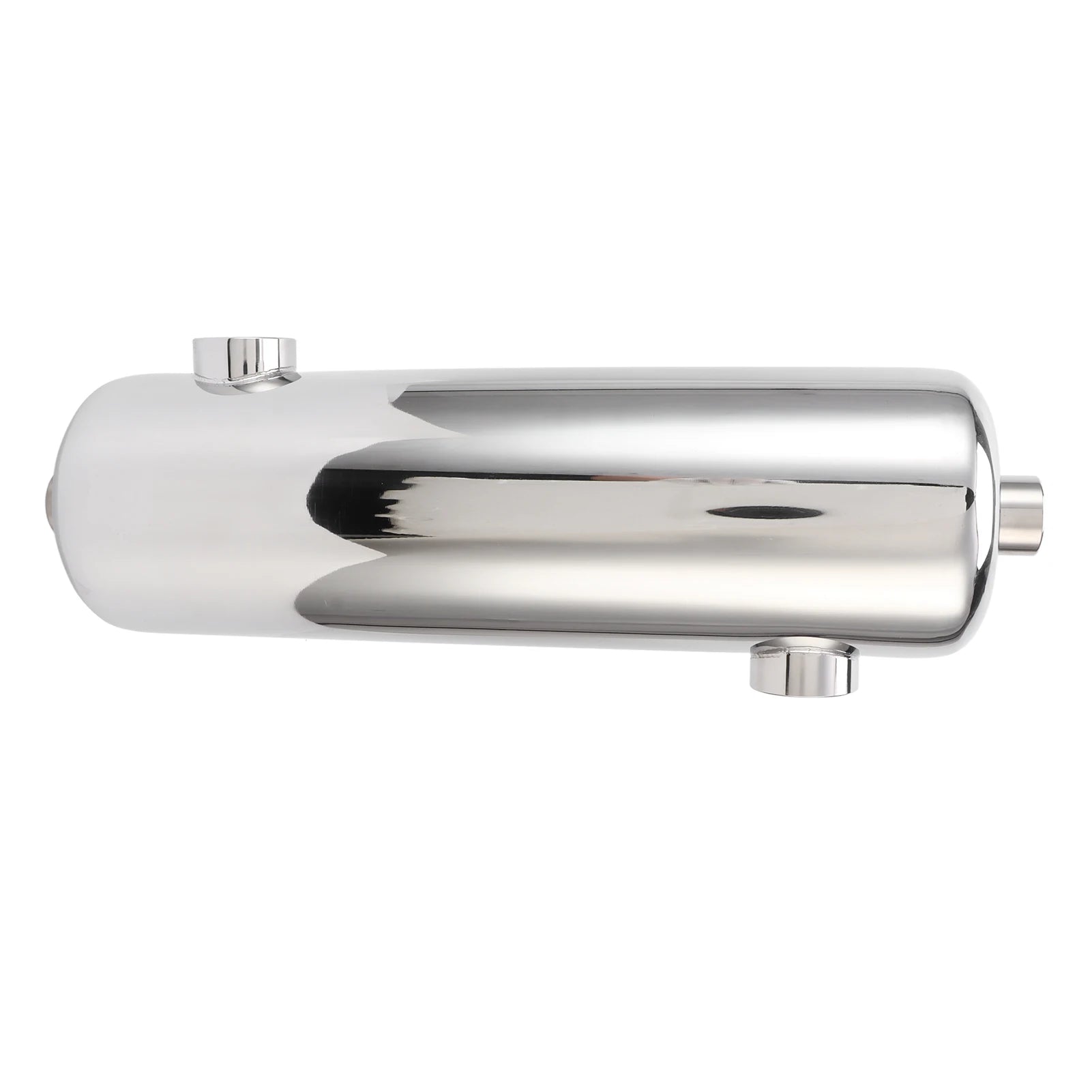

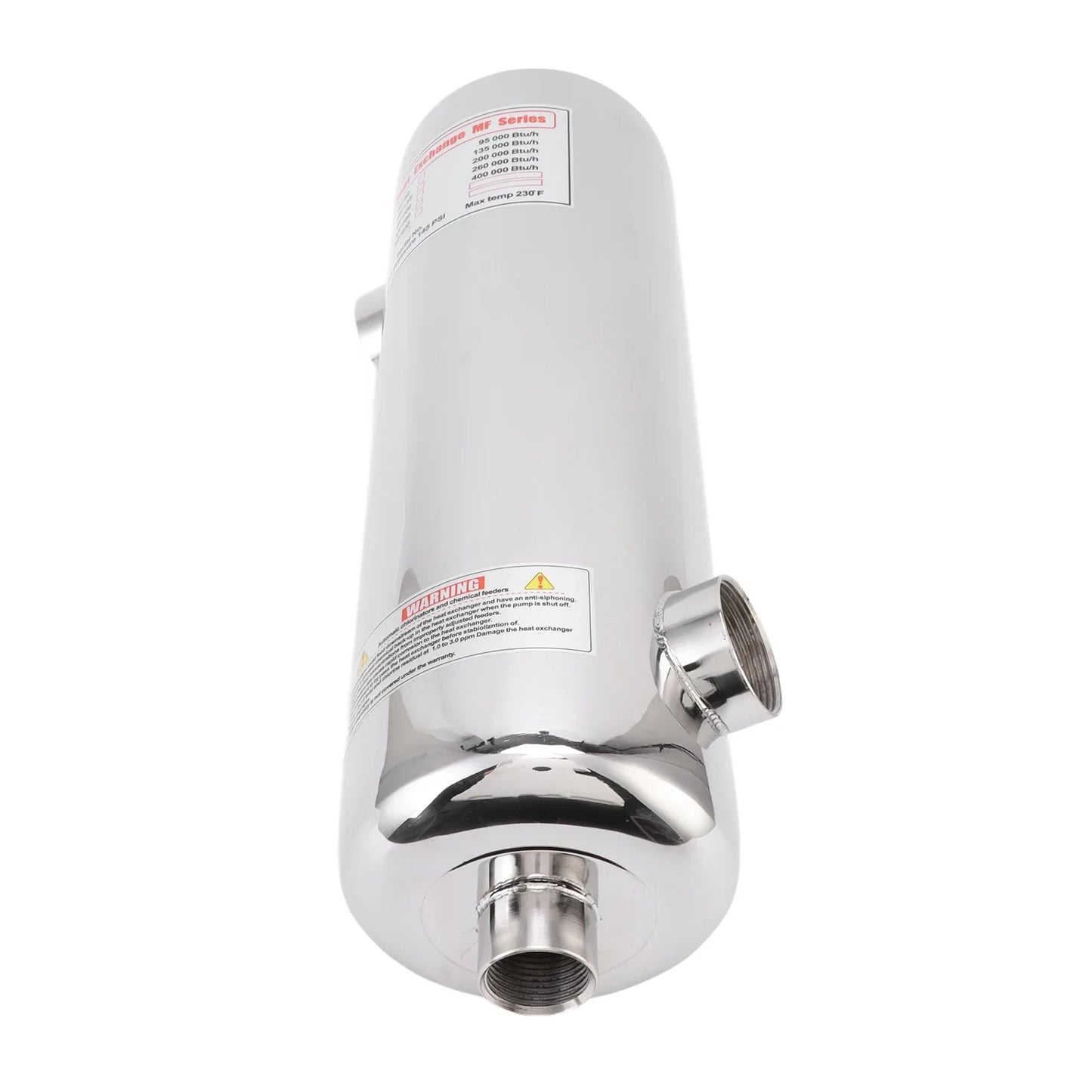

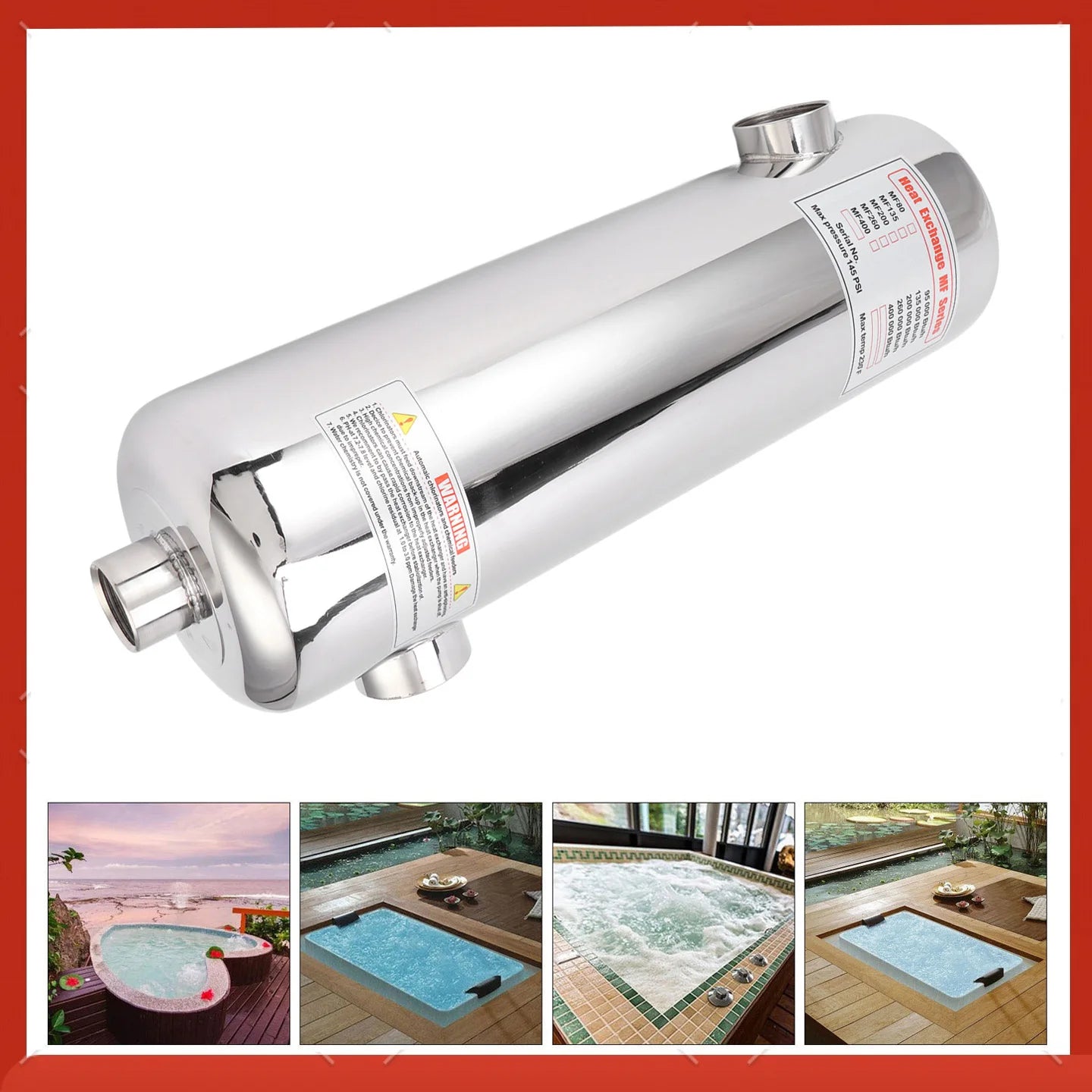

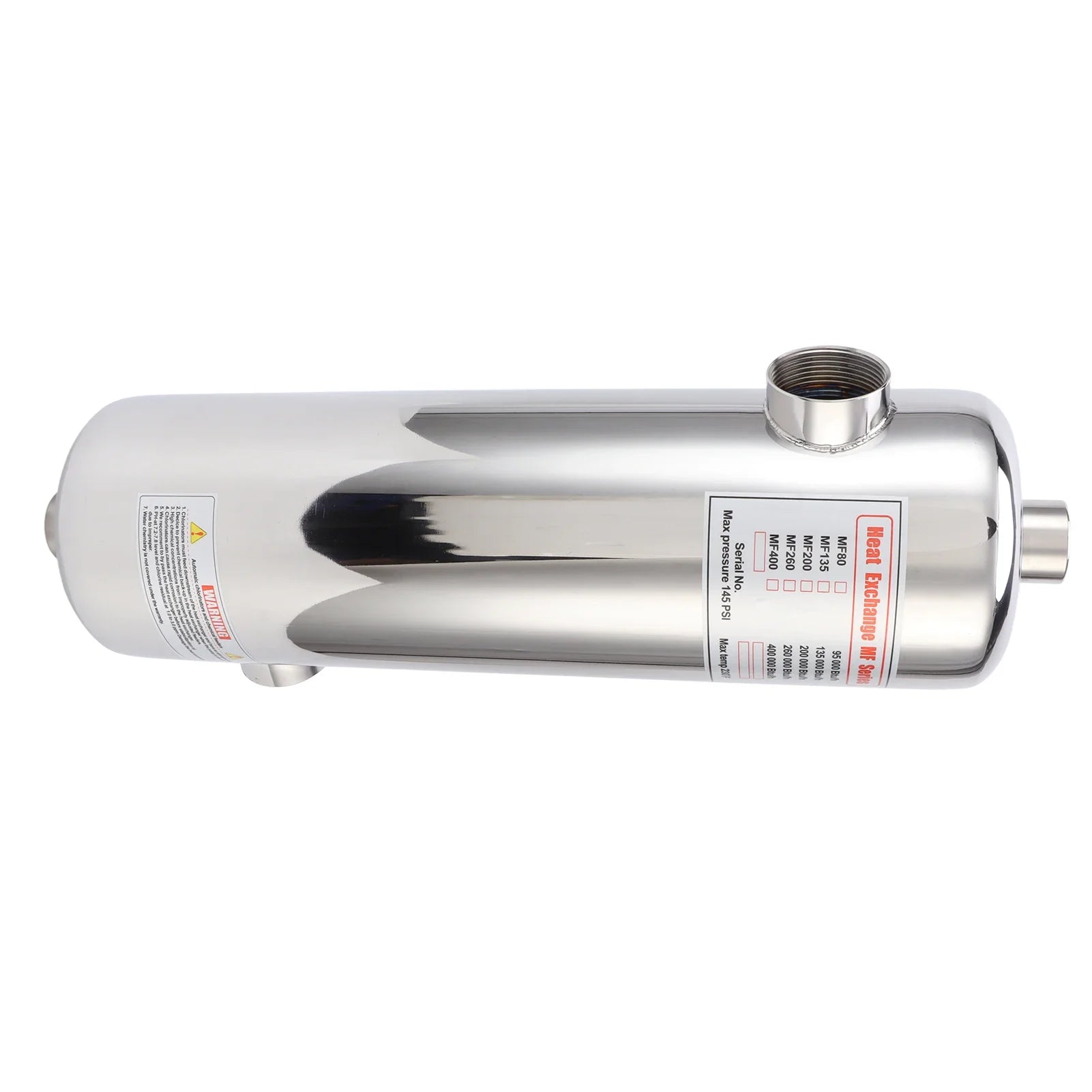

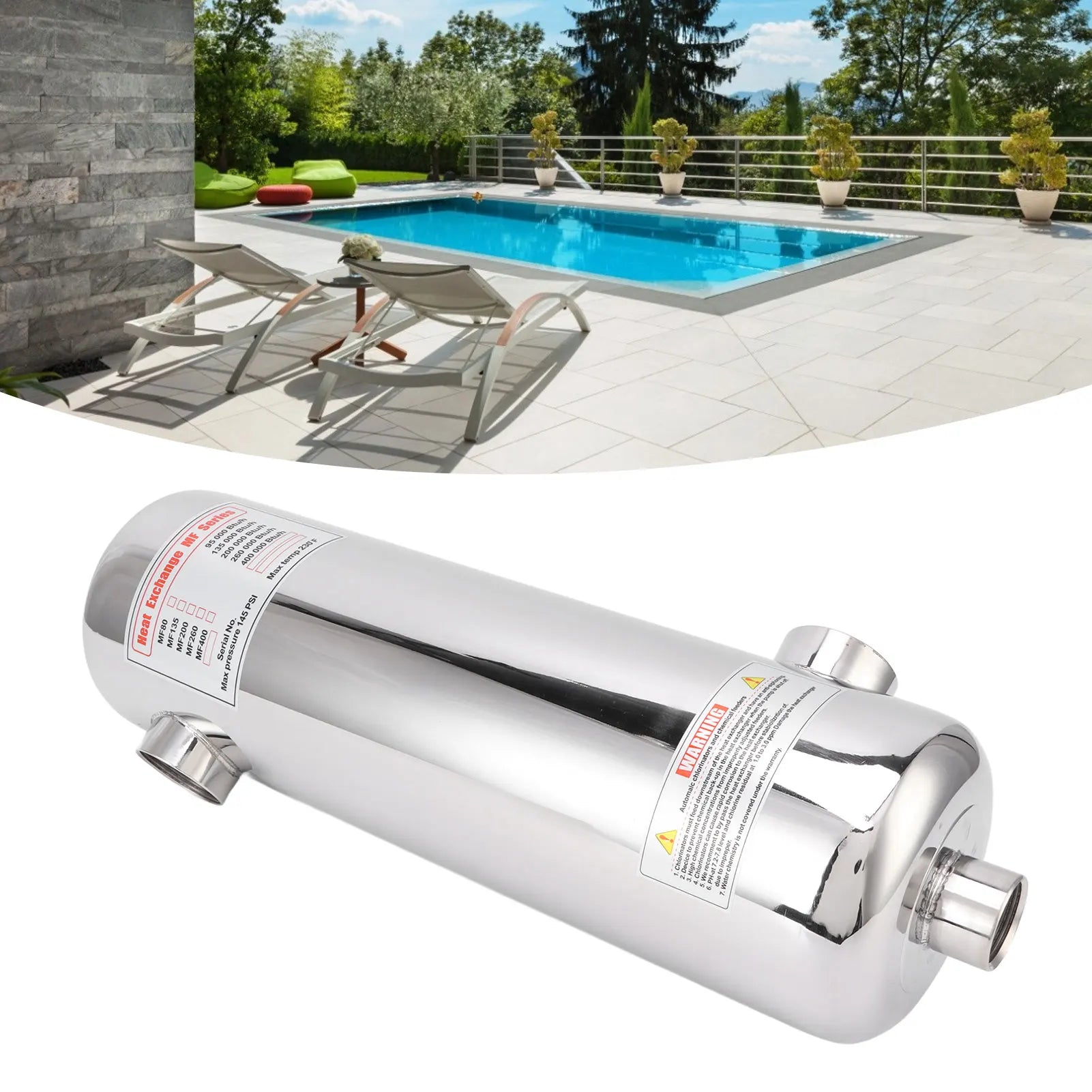

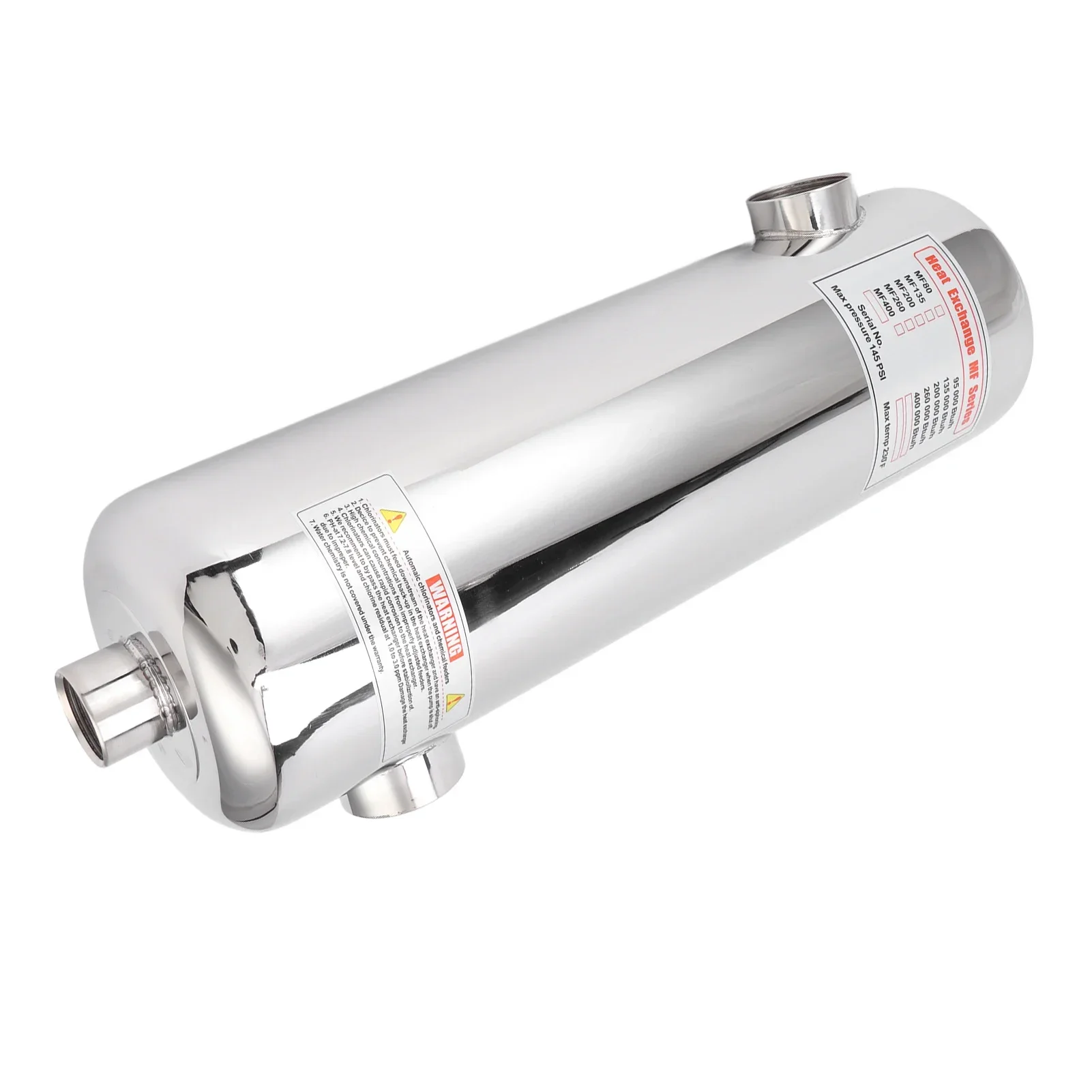

Item Type: Swimming Pool Heat Exchanger
Material: Stainless Steel
Gross Weight: 3800g / 134.0oz
Product Size: Approx.48.5 x 15.7cm / 19.1 x 6.2in
60KW

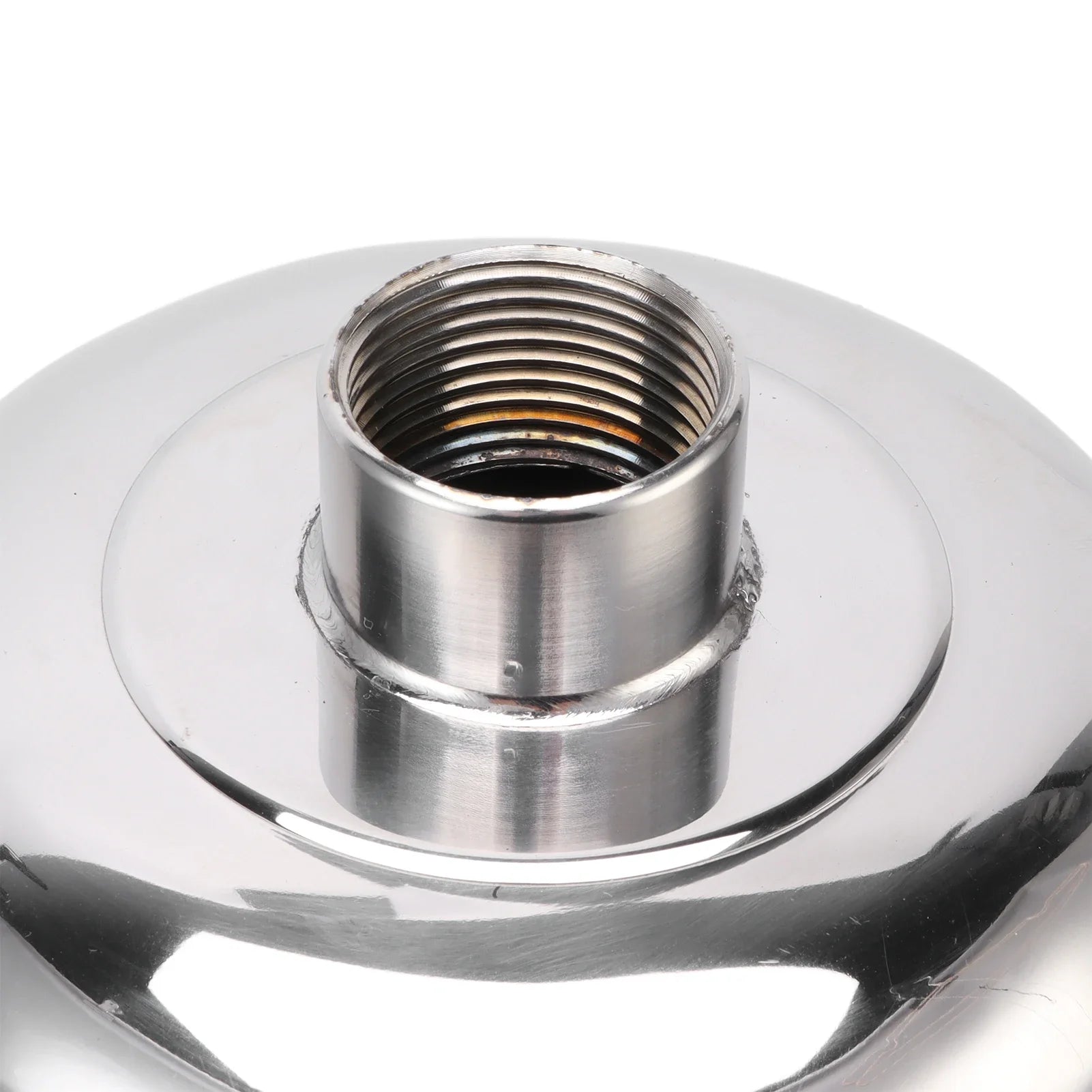

Side Thread: female thread Approx.45mm / 1.8in
Front Rear Thread: female thread Approx.32mm / 1.3in
Maximum Operating Temperature: 230℉ (110℃)
Usage: applicable to all types of swimming pools, spas and hot pools
Applicable Scene: swimming pool, hot spring, hot bath

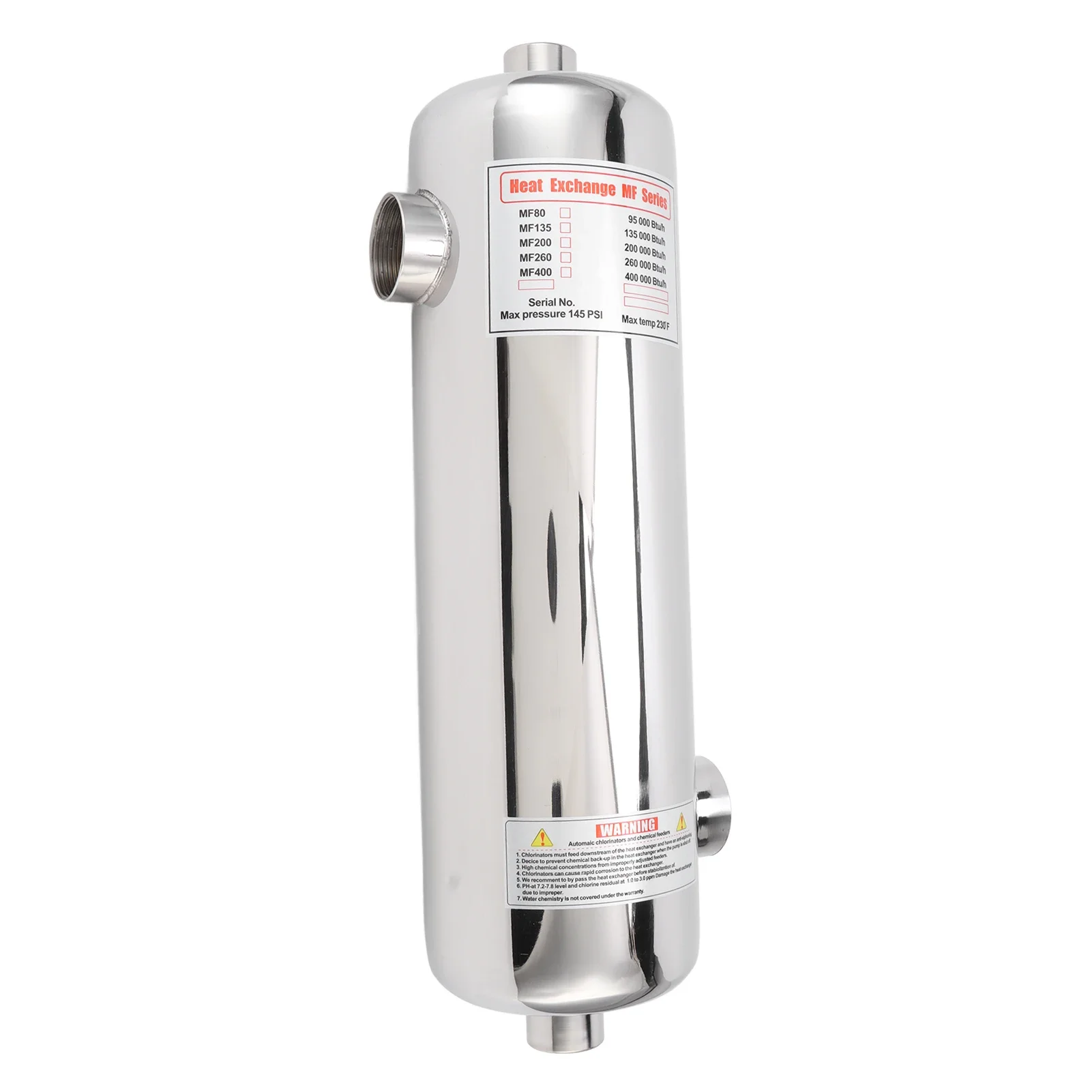

Heat Exchanger Model: MF 200
18000 Gallon Pool Area: Temperature Required to Rise 1°F/h Required Boiler: 150147 btu/ hour; Temperature Required to Rise 1°F/h Required Boiler: 166830 btu/ hour
20000 Gallon Pool Area: Temperature Required to Rise 1°F/h Required Boiler: 166830 btu/ hour; Temperature Required to Rise 1°F/h Required Boiler: 166830 btu/ hour
22000 Gallon Pool Area: Temperature Required to Rise 1°F/h Required Boiler: 183513 btu/ hour; Temperature Required to Rise 1°F/h Required Boiler: 166830 btu/ hour

1. First, determine the temperature rise rate of the pool water, generally, the temperature rise of the swimming pool that is open for a long time in summer is 1℉ per hour (1℉ is equal to 0, 56℃), while the temperature rise of the swimming pool that is only used for a short time is 20℉ per hour;

2. Calculate the volume of the pool (in gallons: 1 cubic meter is equal to 2642 gallons);

3. Check the following table, select the model of the heat exchanger according to the volume of the pool water and the required heating rate, and ensure that the output power of the boiler meets the requirements in the table;

4. Calculate the heat loss rate to ensure that the output power of the boiler is greater than the heat loss rate calculated by the following formula: heat loss rate (btu/hour) is equal to 23328 multiply the area of the swimming pool (square meter) multiply (the required temperature of the pool water ℃ subtract the lowest average external temperature ℃ during use)

Note: The water temperature of the swimming pool is generally required to be 26℃.

4 x Accessories

Excluding electricity
