Acid Dosing Pump Electric Diaphragm Meterinng Pump 220V Acid Alkali Resistant Dosing Pump Pluse/4-20mA Micro Dosing Equipment
Acid Dosing Pump Electric Diaphragm Meterinng Pump 220V Acid Alkali Resistant Dosing Pump Pluse/4-20mA Micro Dosing Equipment
Regular price
$669.99 USD
Regular price
$418.46 USD
Sale price
$669.99 USD
Unit price
per
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: tungfull
Certification: CE
Choice: yes
Fuel: Electric
Hign-concerned Chemical: None
Origin: CHINA
Power (W): Electric
Pressure: Low Pressure
Structure: Diaphragm Pump
semi_Choice: yes

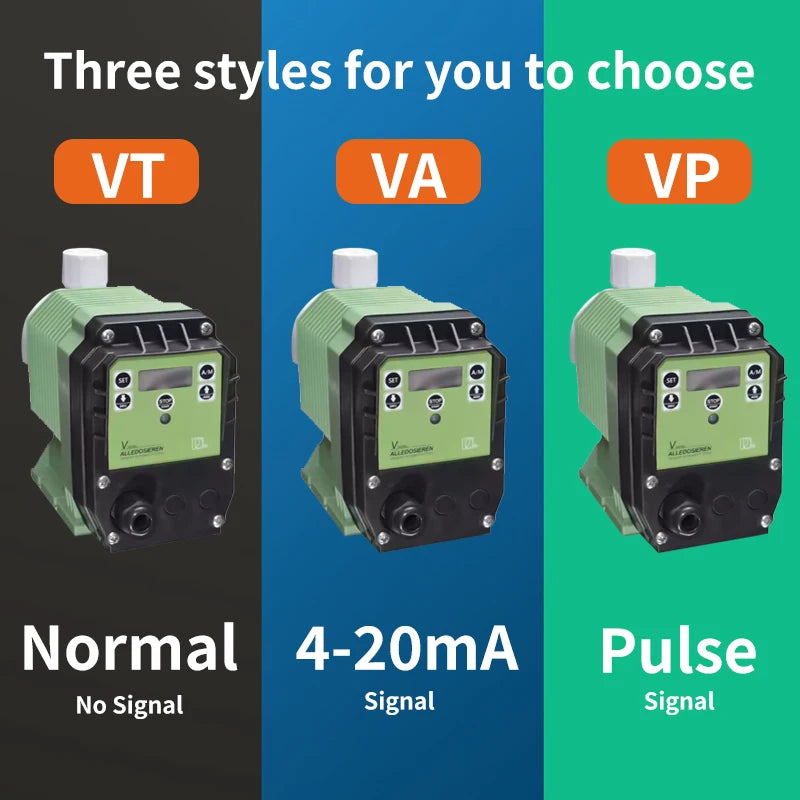

There are three options regarding signals.
1. No external signal
2.4-20mA signal

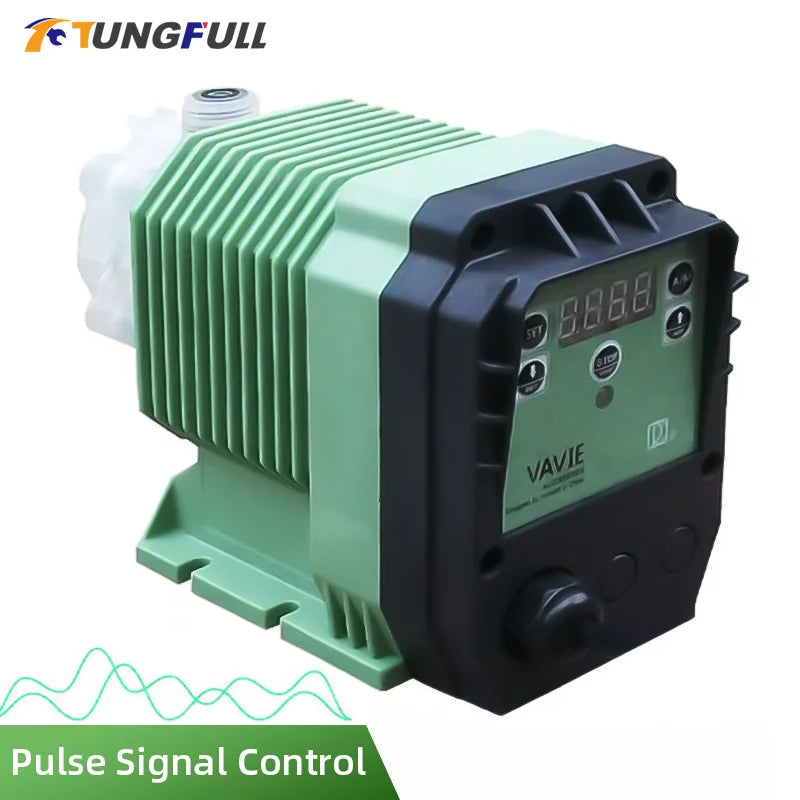

3. Pulse signal
Please choose according to your own needs!
You can change the dosage of the metering pump by adjusting the stroke speed.
Set speed = rated maximum speed ×
Required dosageRated maximum dosage
Required dosageRated maximum dosage

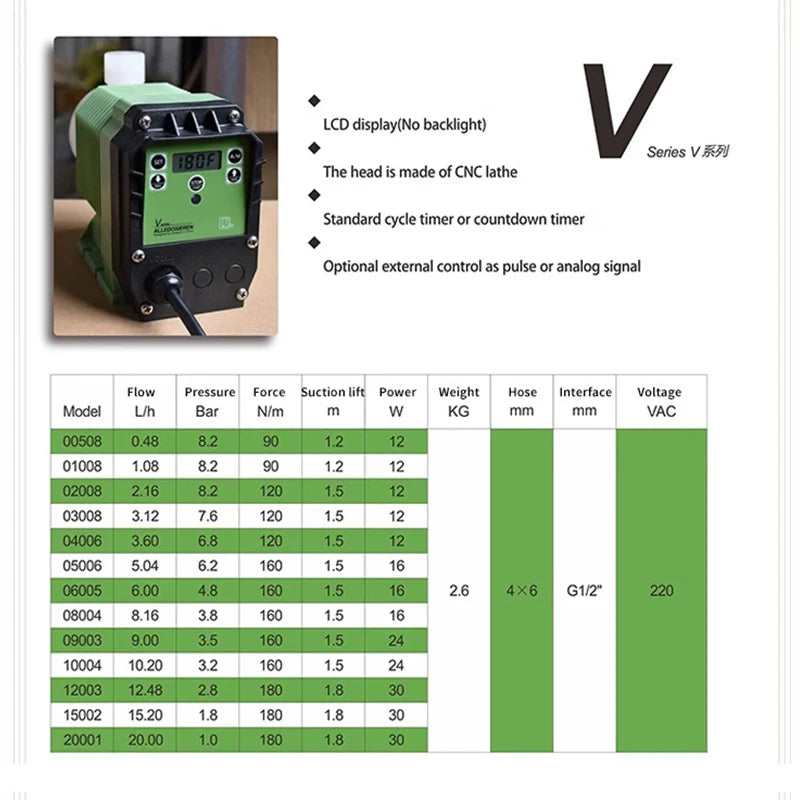

"Rated maximum dosage" can be found on the pump selection table or on the pump nameplate;
"Rated maximum speed"
Example: For pump 03008, its rated maximum dosage and pressure are 3.12L/h, 7.6Bar. It is also found
that the rated maximum speed of this model is 120 times per minute. If
you need to adjust the flow rate to 2.00L/h, then:
Set speed=120×
2.00÷3.12 .The calculated speed is 76.9
2.00÷3.12 .The calculated speed is 76.9
Use ↑ and ↓ to adjust the speed to 77.
