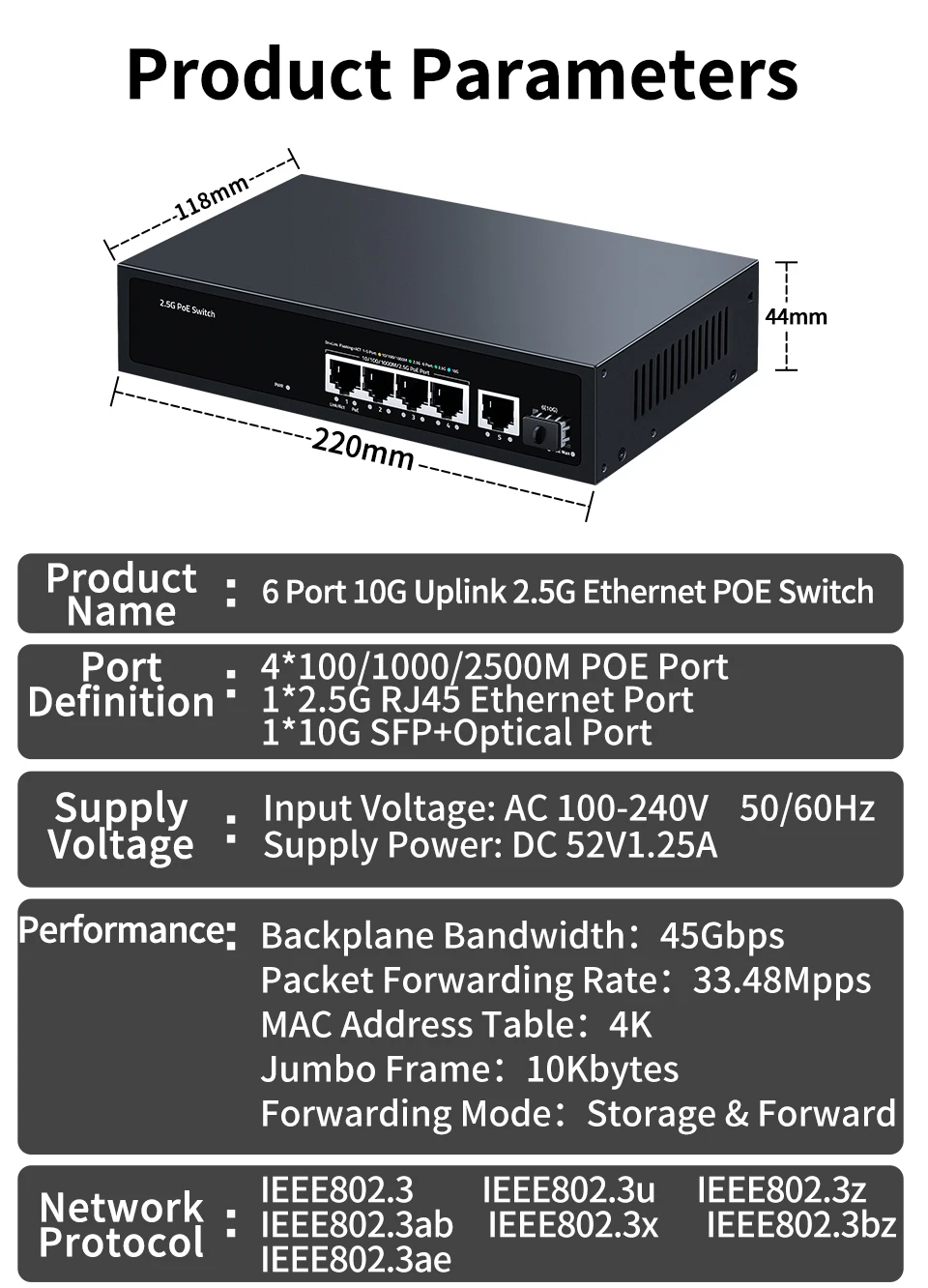

SPECIFICATIONS

1-5 Port green light: On: 2.5G Link connect normal; Off: Link off; Flashing: data transmitting

1-5 Port yellow light: On: 10/100/1000M Link connect normal; Off: Link off; Flashing: data transmitting

Brand Name: HORACO

Certification: CE,FCC,RoHS

Communication Mode: Full-Duplex & Half-Duplex

Forwarding mode: Store and forward

Function: POE,QoS

High-concerned chemical: None

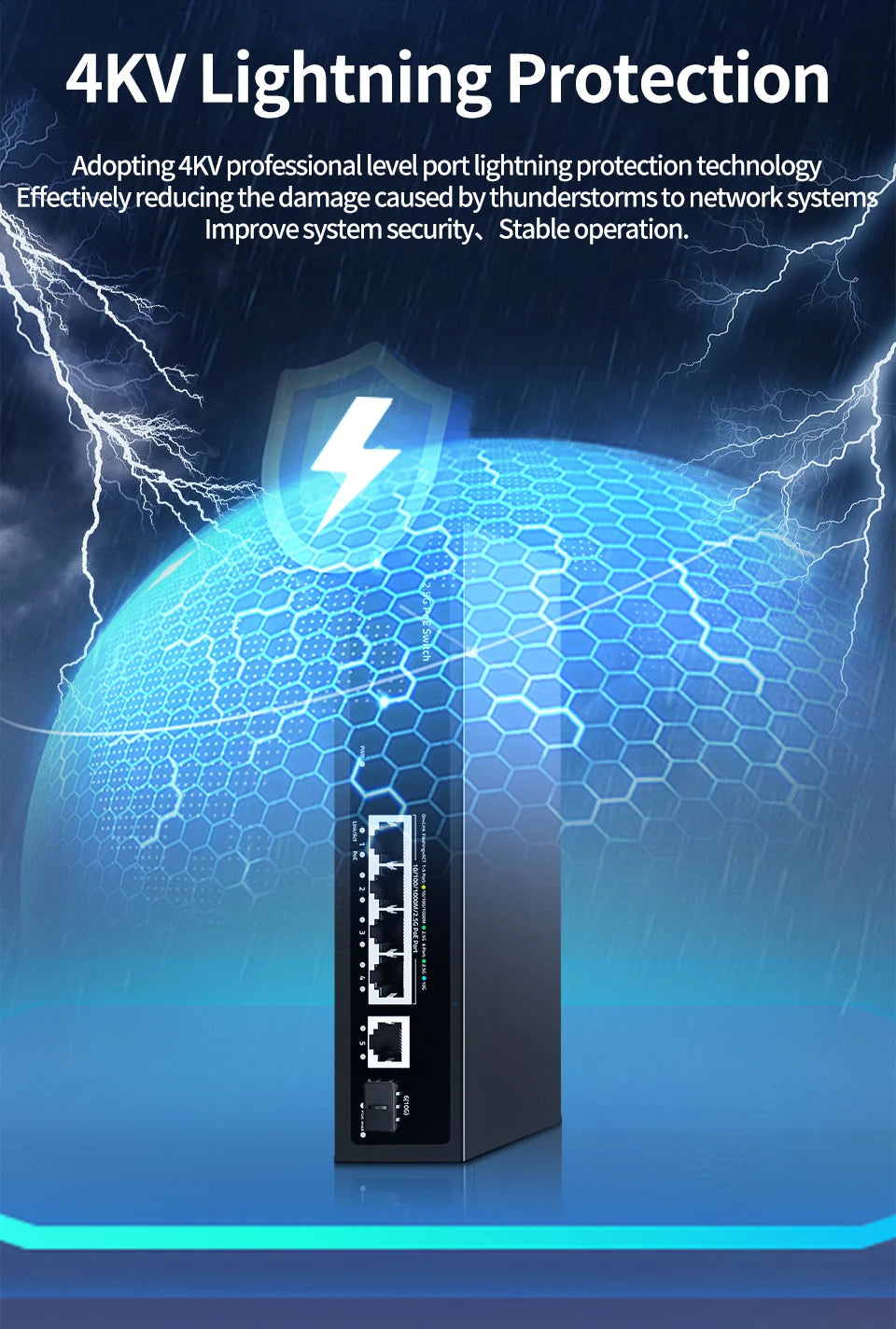

Industry standard: EMS: EN61000-4-2 (ESD), IEN61000-4-5 (Surge)

Jumbo frame: 10Kbytes

MAC Address: 4K

MTBF: 100000 Hours

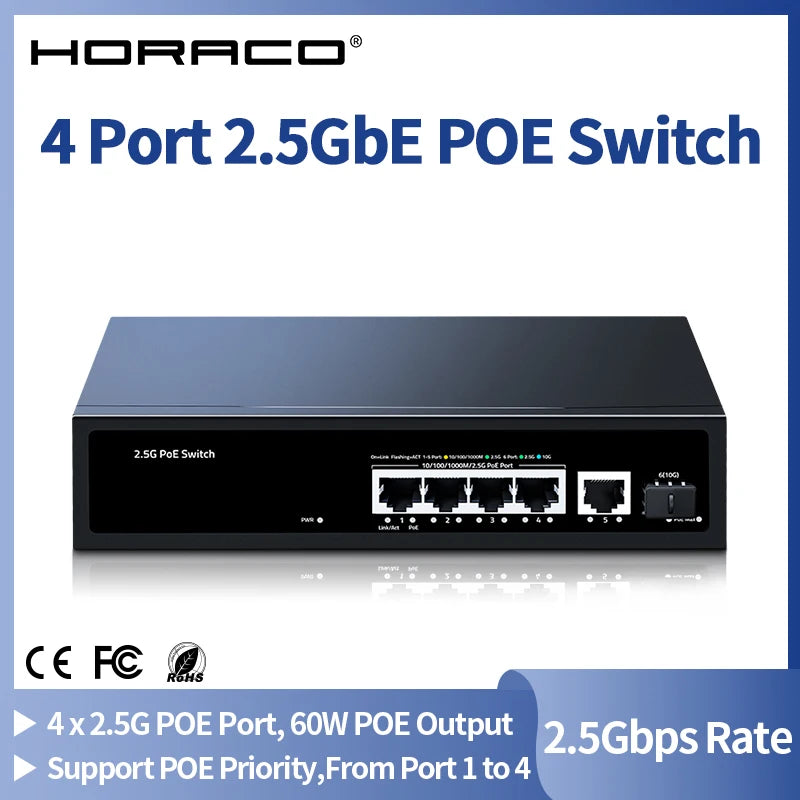

Model Number: ZX900-AFG-SWTG015ANS

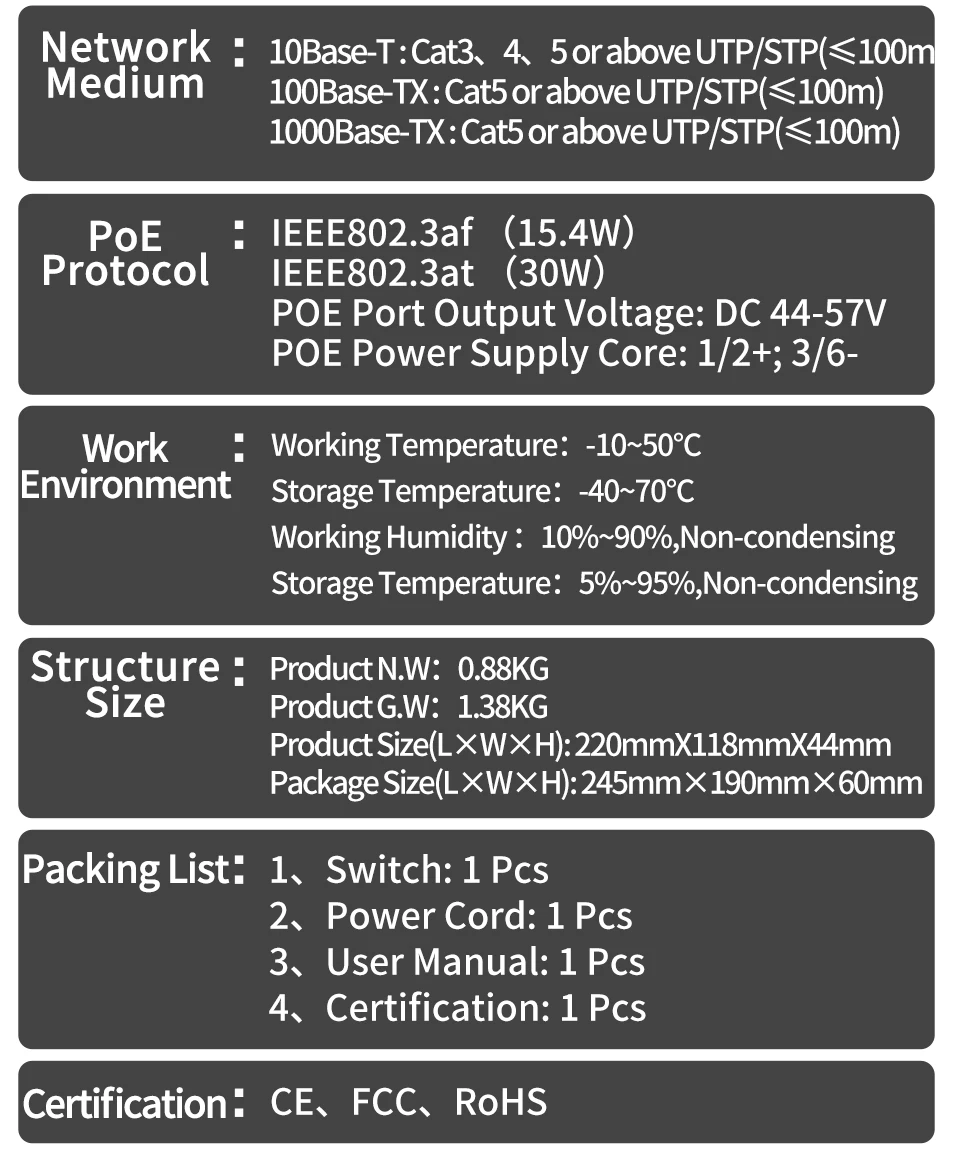

Network Medium: 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m); 100Base-TX: Cat5 or above UTP/STP(≤100m); 1000Base-TX: Cat5 or above UTP/STP(≤100m)

Network protocol: IEEE802.3 (Ethernet); IEEE802.3u (Fast Ethernet); IEEE802.3ab(Gigabit Ethernet); IEEE 802.3bz (5G Ethernet); IEEE 802.3z (Gigabit Ethernet); IEEE 802.3ae (10G Ethernet); IEEE802.3x (Flow control)

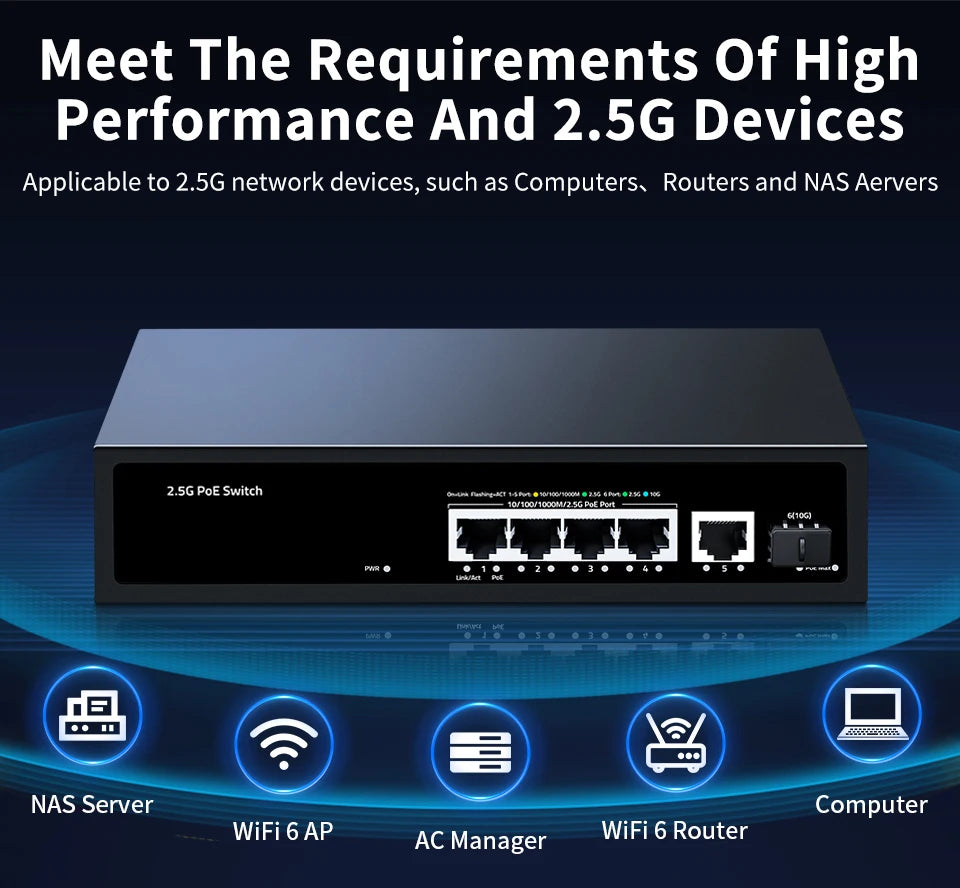

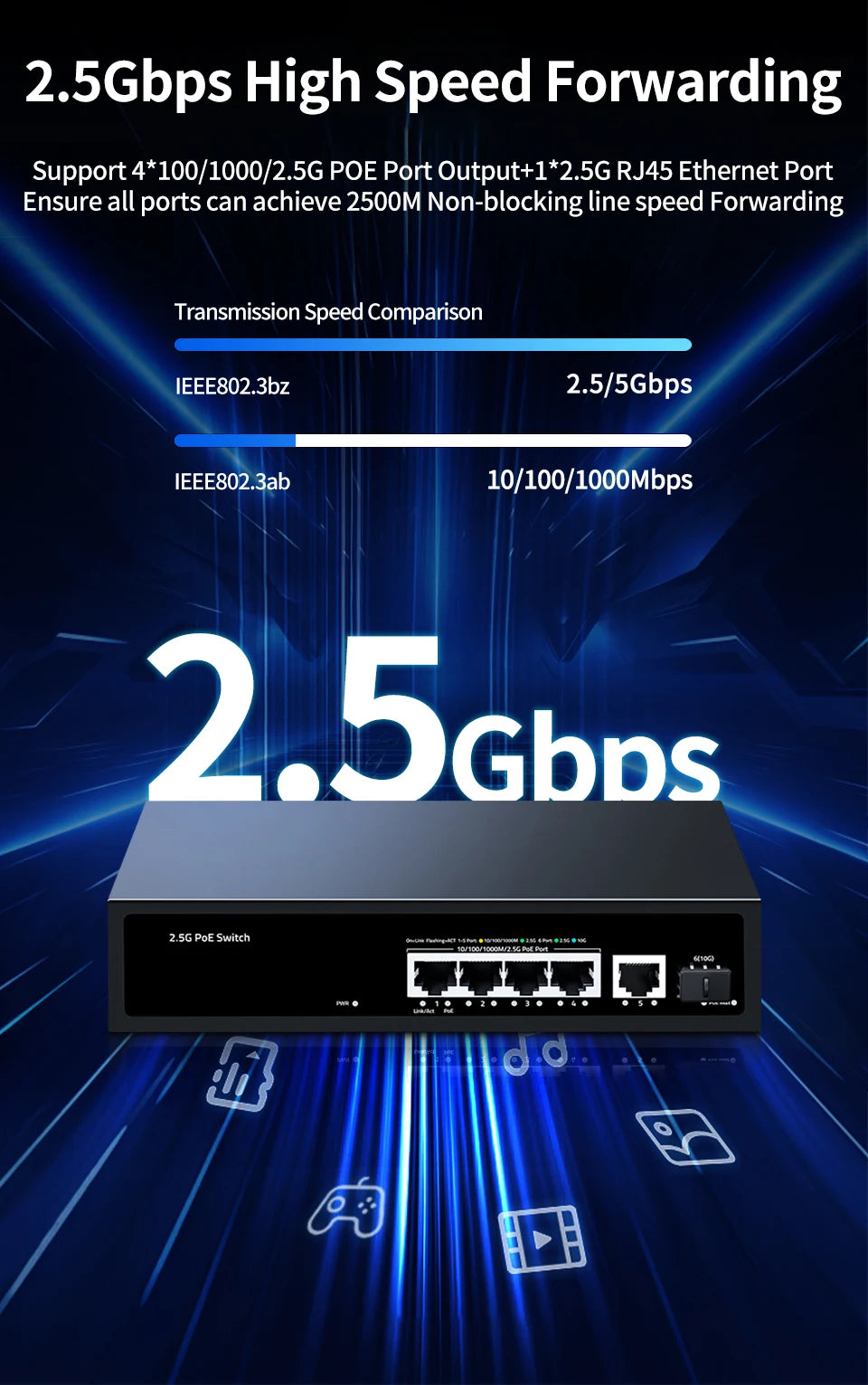

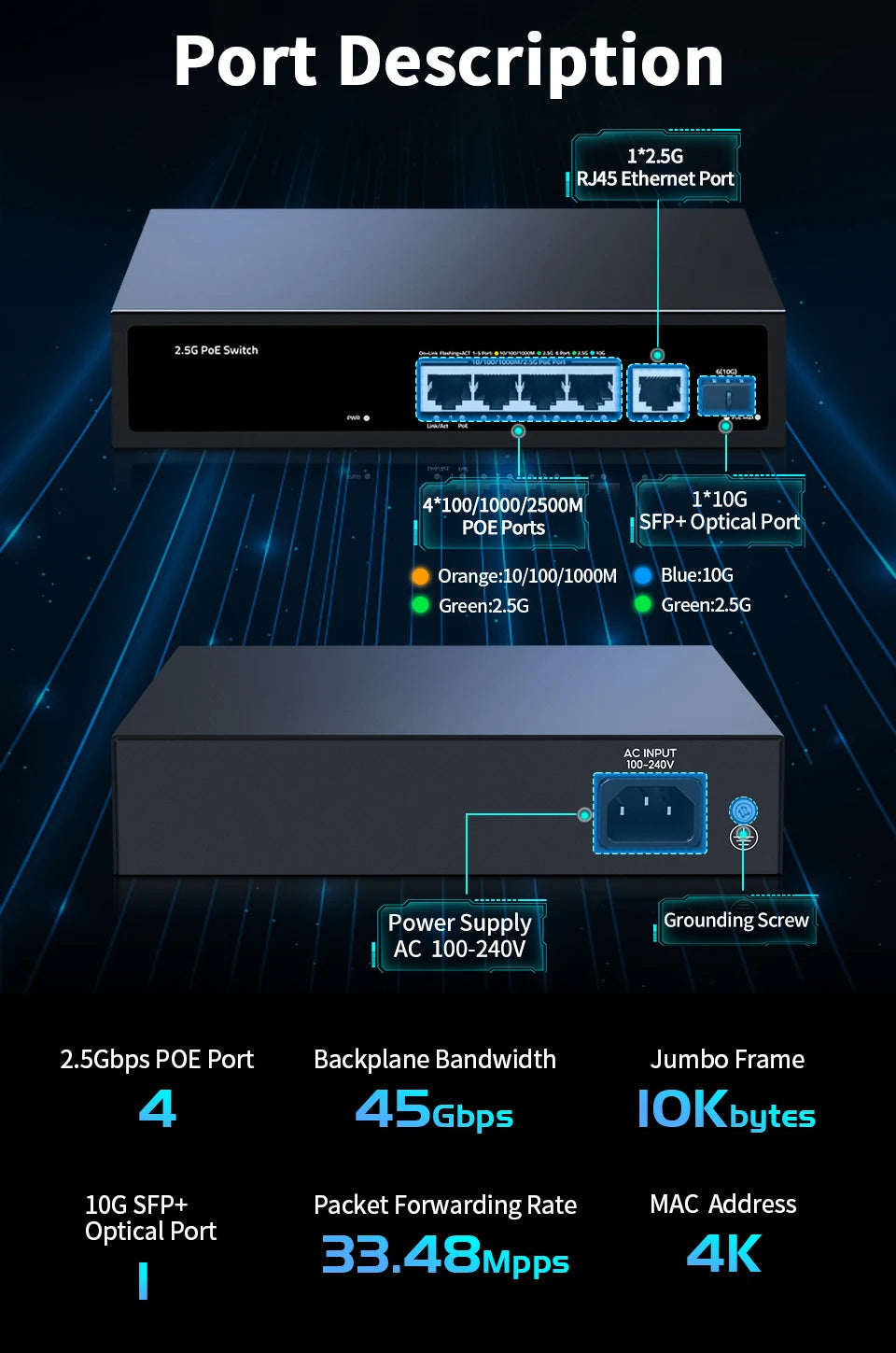

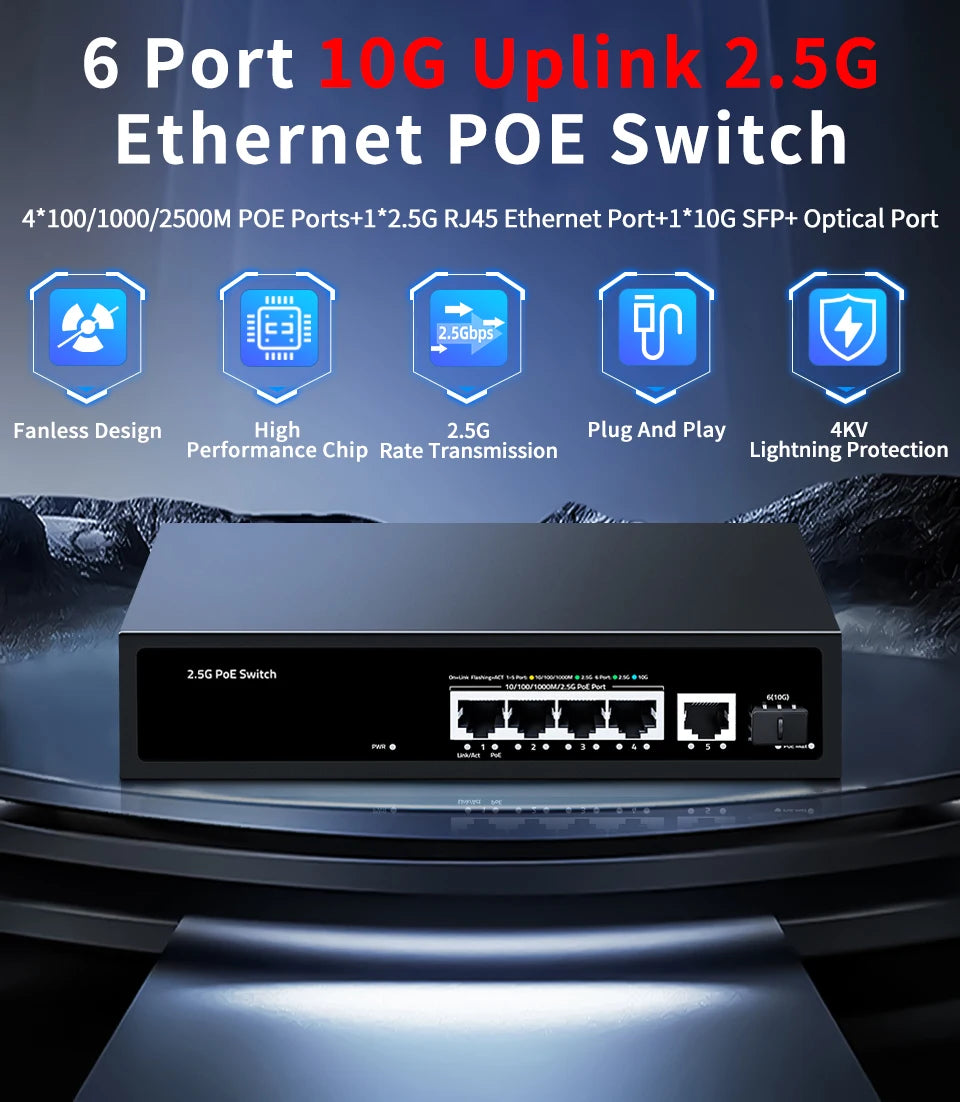

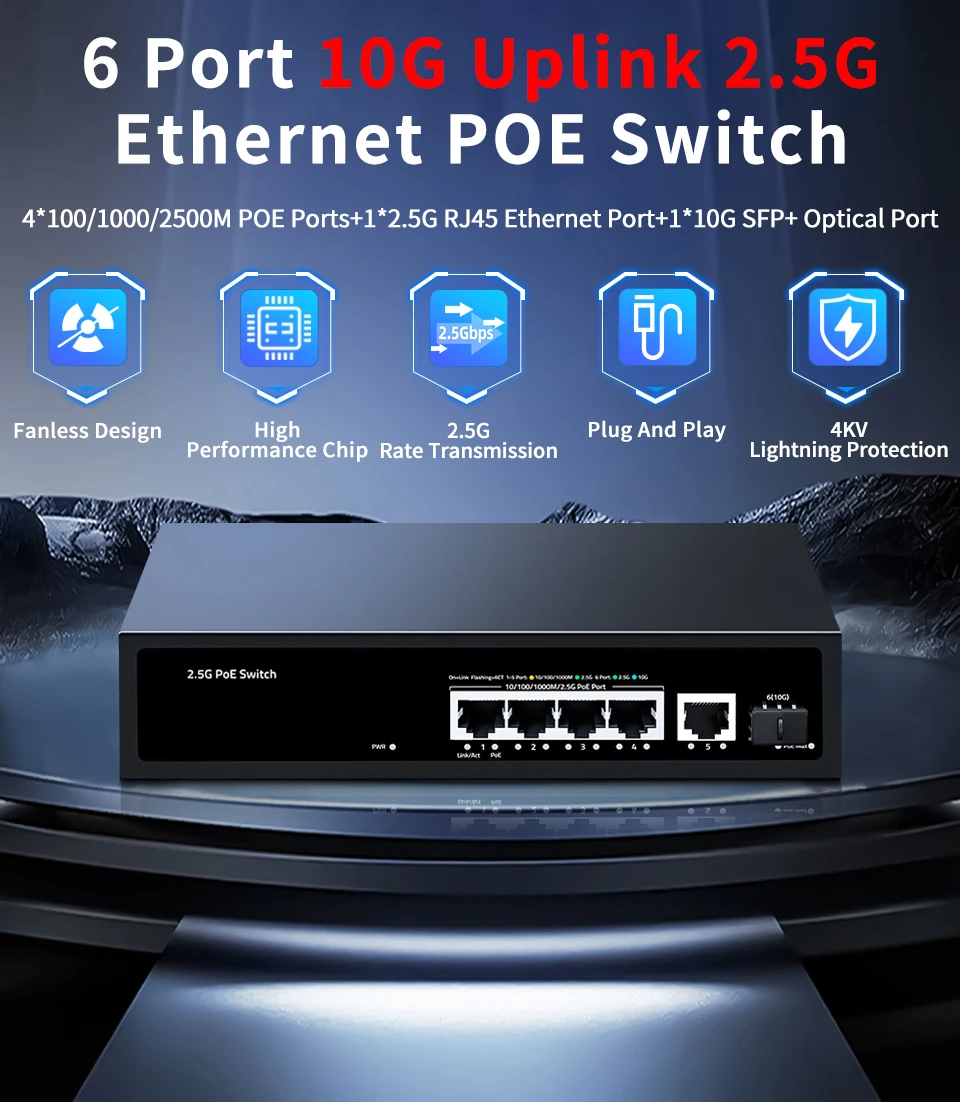

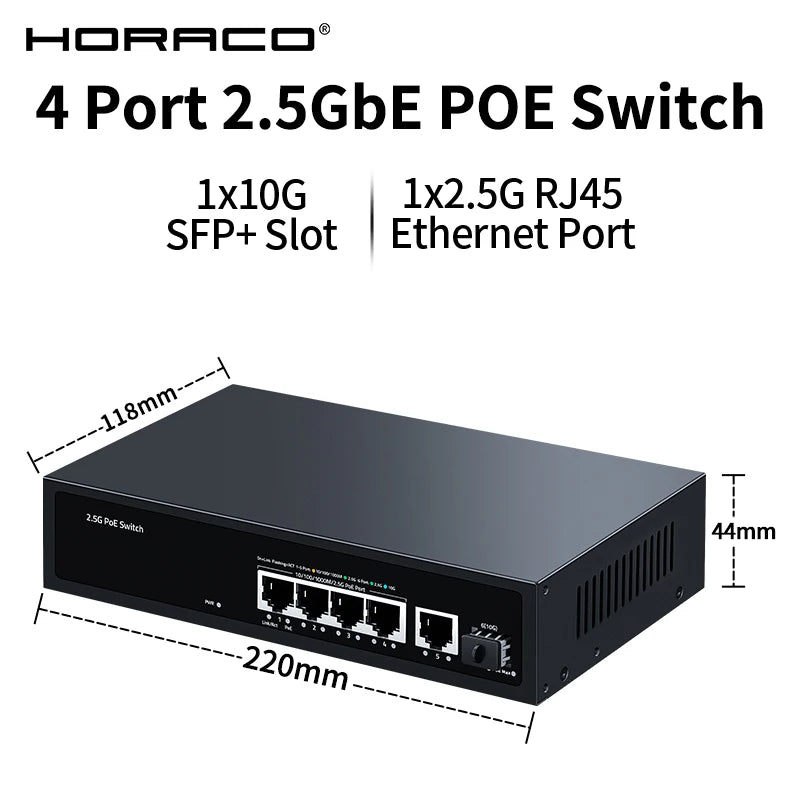

Number of Interfaces: 6 Ports,4*2.5G POE ports,1*2.5G RJ45 Ethernet port, 1*10G SFP+ ports

Optical Medium: Multimode optical fiber: 50/125, 62.5/125, 100/140um, Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um

Origin: Mainland China

PWR (Power): On: Powered on; Off: Powered off

Package: Yes

Packet forwarding rate: 33.48Mpps

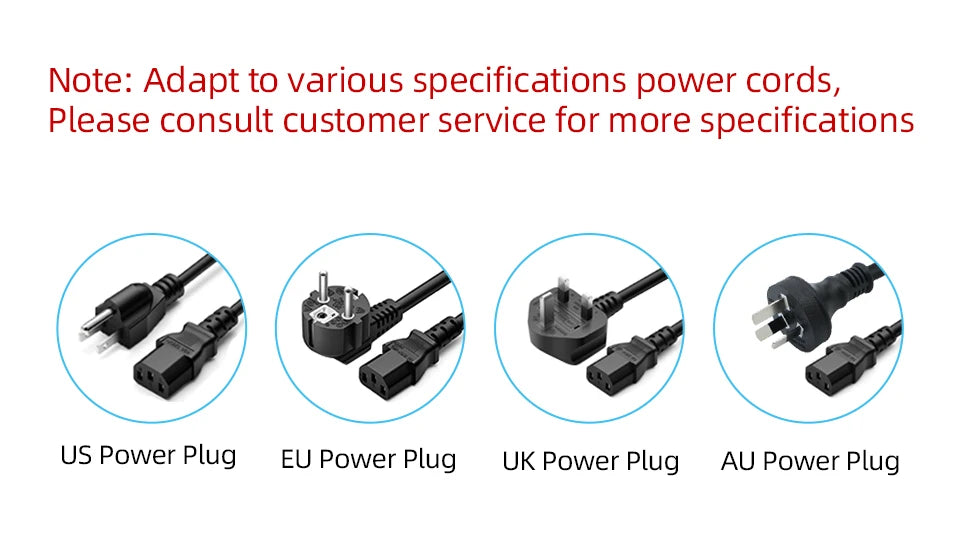

Plug Type: EU Plug

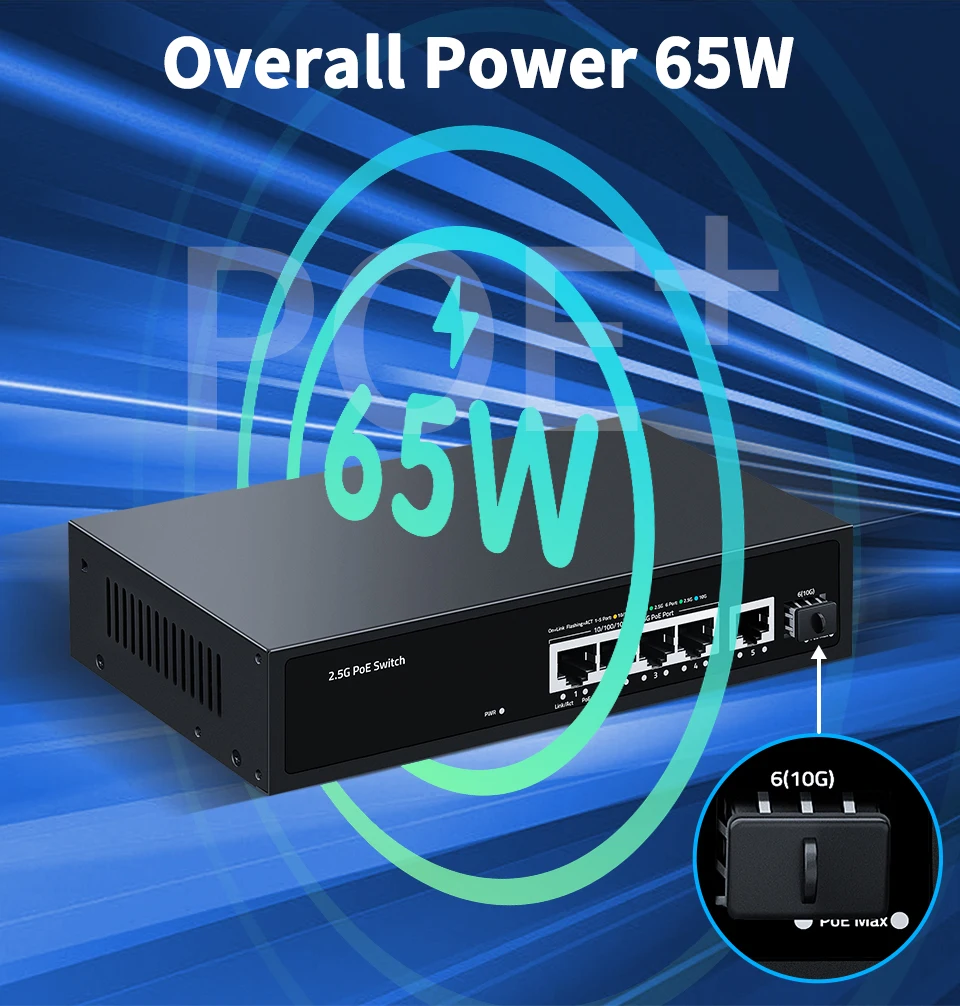

Power: AC 100-240 V 50/60HZ,Product power: maximum 5W, POE power: maximum 60W

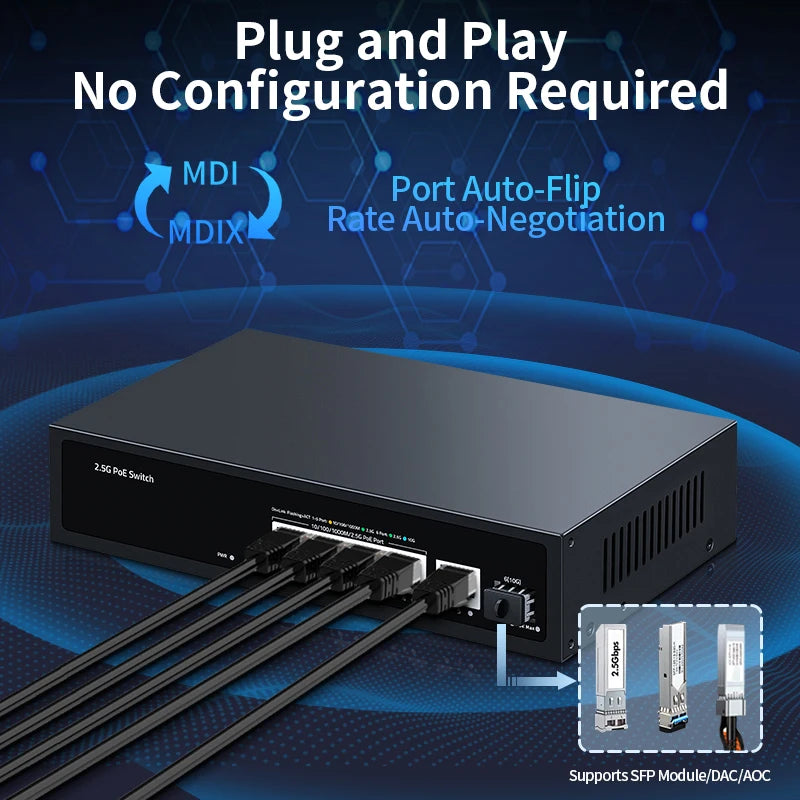

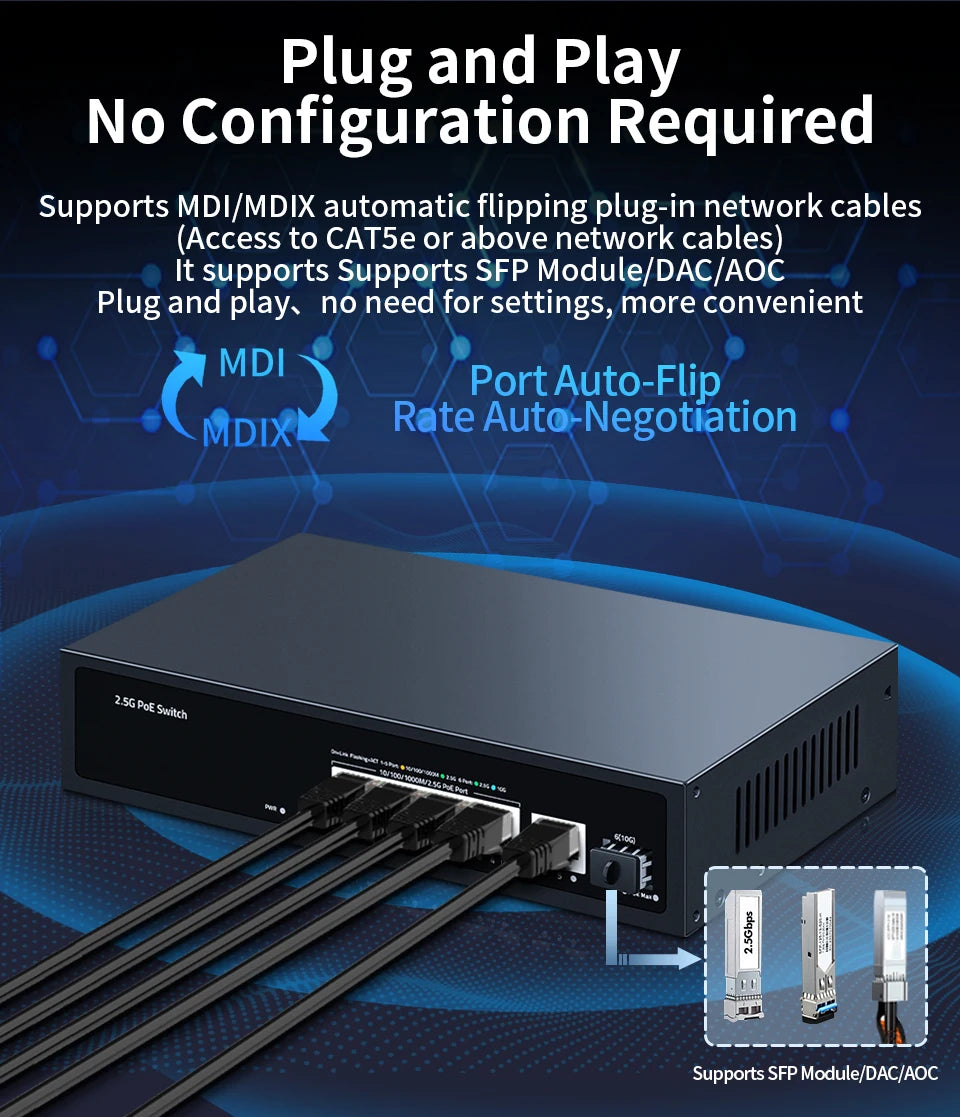

SFP+ Port: Supports 10M/100M/1G/2.5G/10G

SFP+ Port Green Light/ Blue Light: Blue on:10G link, Green on: 1000/2500M link, Off: Link blocked, Flashing: Data transmitting

Switch Capacity: 45Gbps

Switch Type: Ethernet

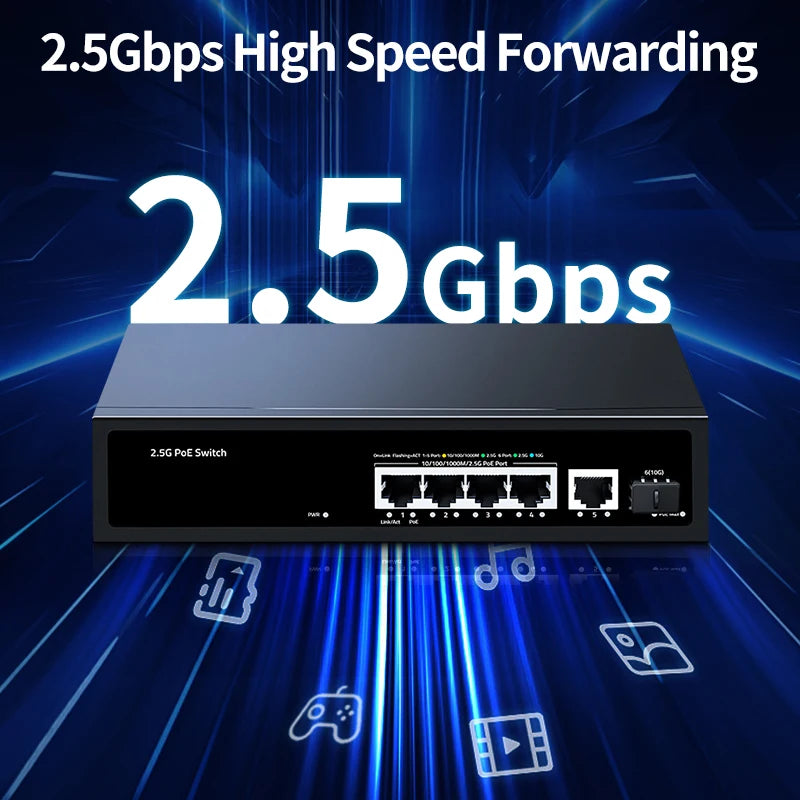

Transmission Rate: 2000 Mbps,10/100Mbps/1G/2.5Gbps

VLAN: NO

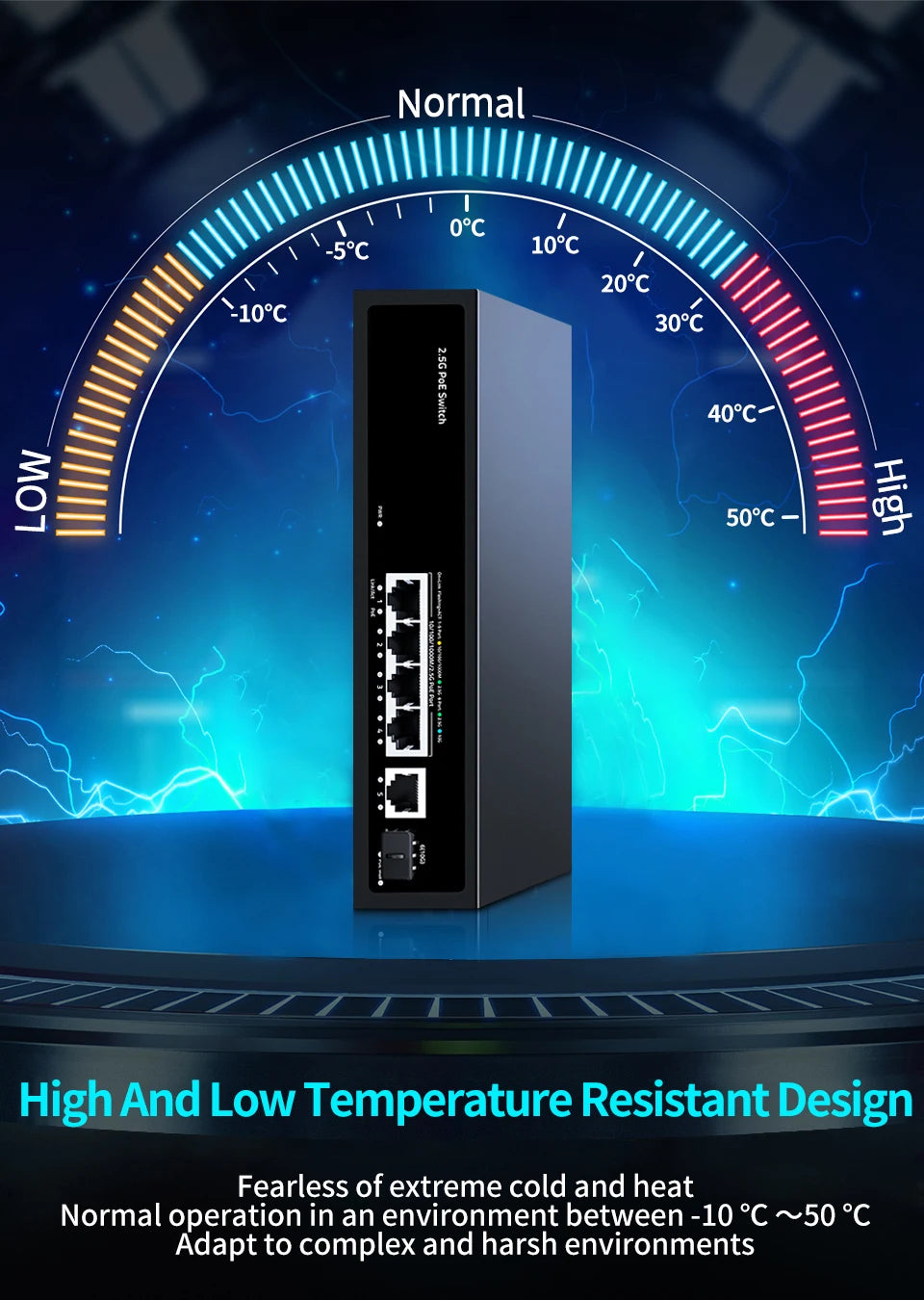

Working environment: Working Temperature: -10-50°C; Storage Temperature: -40-70°C; Working Humidity: 10%-90%, non-condensing; Storage Temperature: 5%-90%, non-condensing;
