Hydraulic Pressure Testing Pump

Accurate Testing Up to 60 Bar with 3.2 Gallon Tank and Durable Hose

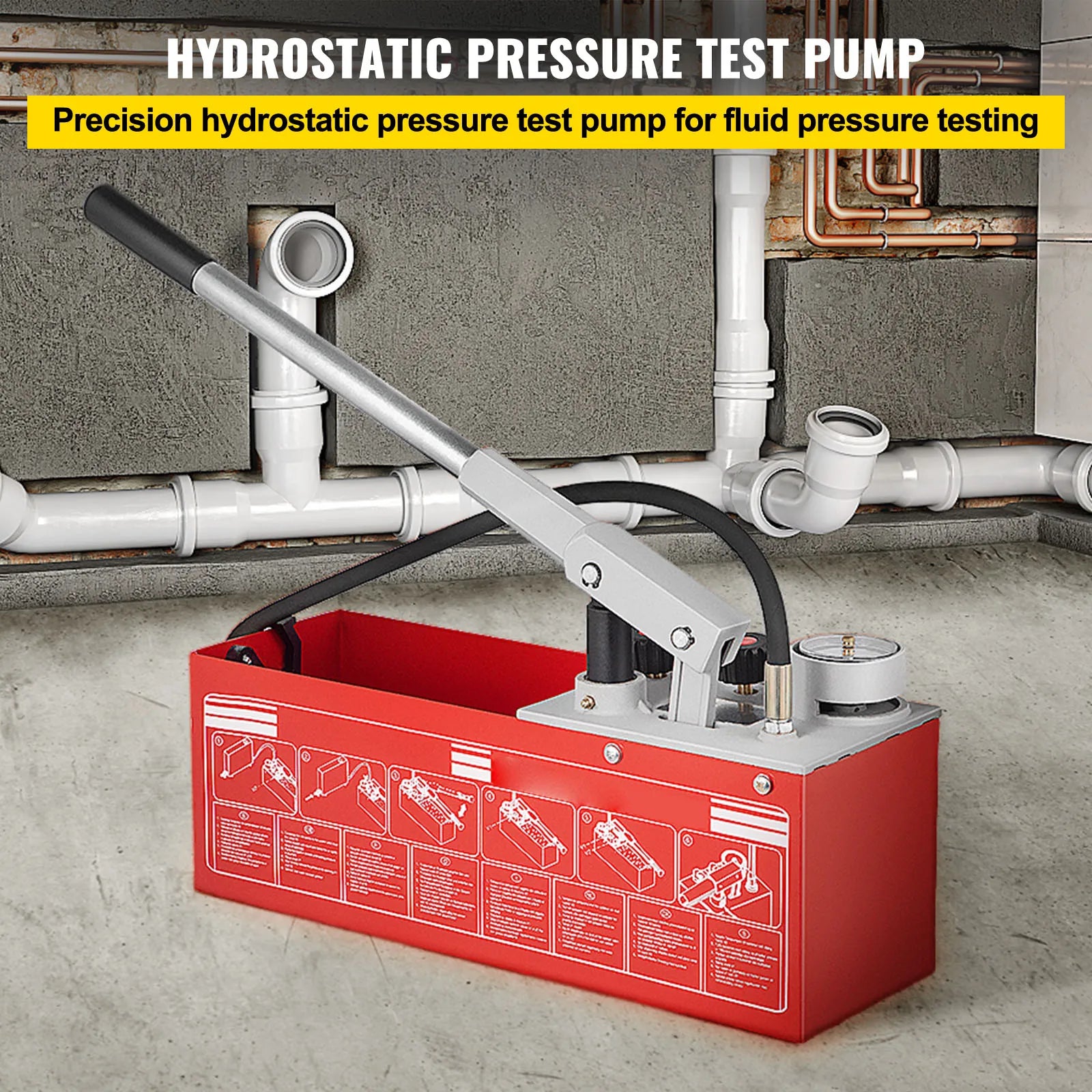

Experience reliable and precise water pressure testing with this robust steel hydrostatic pump. Capable of testing up to 60 bar, it features a three-unit gauge and a dual valve system for accurate readings. The ergonomic handle and smooth pump plunger ensure quick pressurization. The 3.2-gallon tank with reinforced walls is ideal for pipeline, heating, and oil equipment applications, providing clear and accurate test results.

• 60 Bar Three-Unit Gauge Dual Valve System Quick and Effortless Pressurization 3.2 Gallon Reinforced Tank

Key Features

•


• 3.2 Gallon Water Tank:


• This pressure test pump features a durable 3.2-gallon tank with reinforced walls for exceptional sealing and minimal leakage over time. The test hose is built to handle high pressure, ensuring accurate readings.


• Fast & Effortless Pressurization:


• The lubricated pump plunger and ergonomic handle with a non-slip rubber grip make pressurization quick and easy, reducing effort and simplifying operation.


• 60 Bar Precision Gauge:


• With a range up to 60 bar/860 psi/6 MPa, the precise gauge offers reliable measurements in three units: bar, psi, and MPa. It includes distinct black and red pointers for easy reading.


• Versatile Usage:


• Suitable for testing pressure in water or oil pipelines across various applications, including irrigation systems, fire hoses, sewer lines, steam lines, heating systems, and more.


• Dual Valve Mechanism:


• Featuring two copper valves, this pump allows for precise pressure adjustments and reliable self-testing, enhancing measurement accuracy.

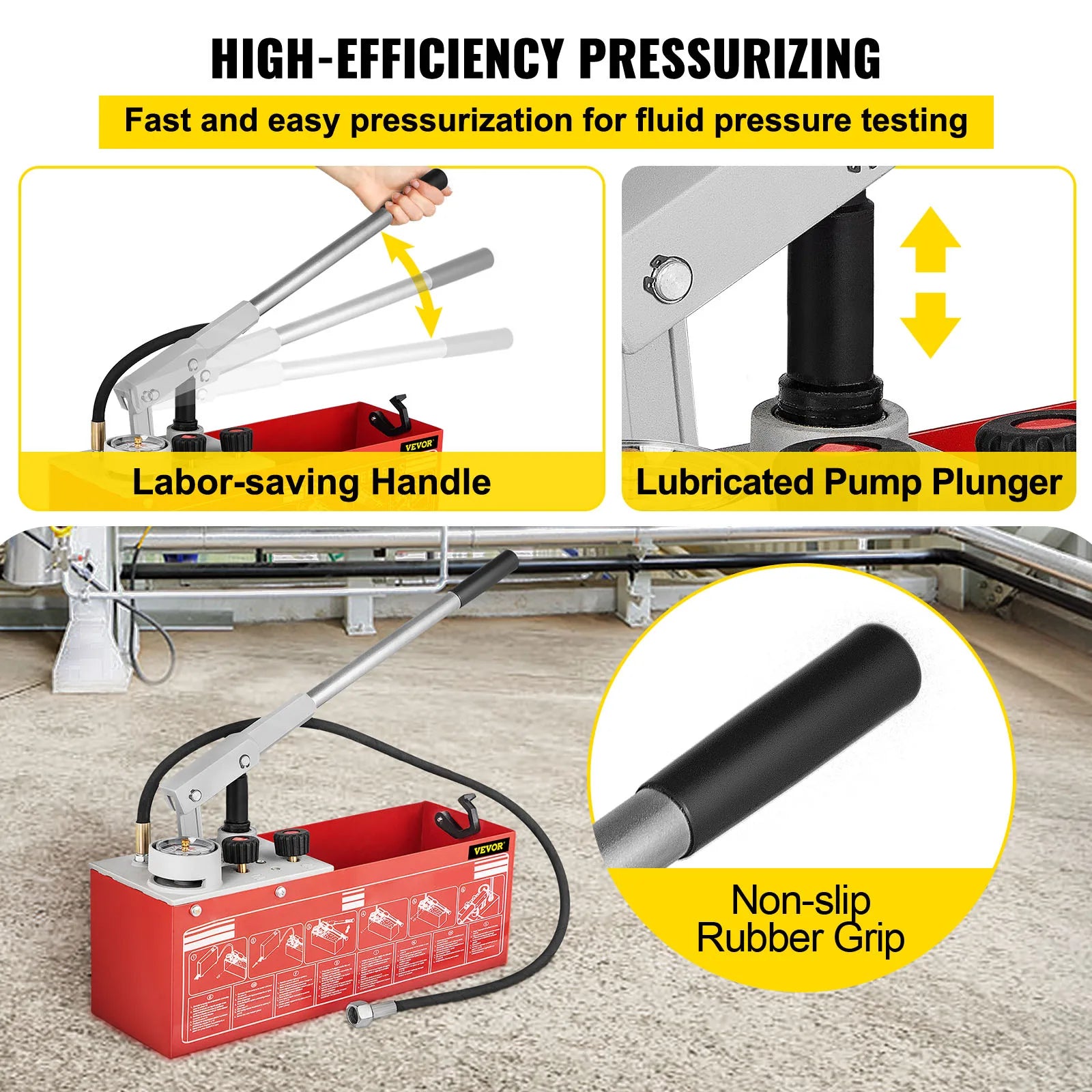

Smooth Operation

The lubricated pump plunger offers efficient pressurization, while the extended rubber-coated handle provides comfort and ease during use.

Versatile Application

Ideal for use in various systems including water pipes, irrigation, heating, oil installations, and solar power systems.

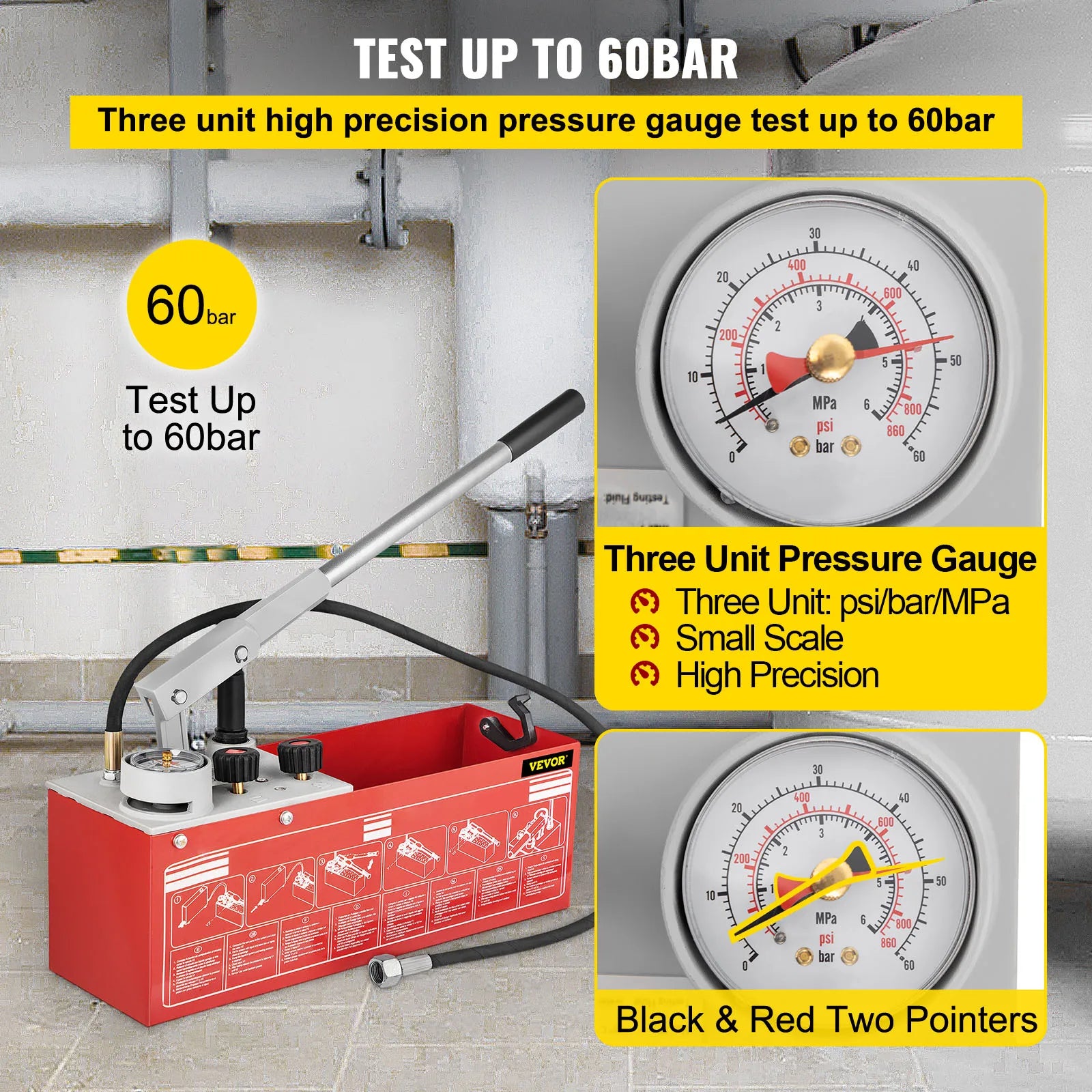

60 Bar Pressure Capacity

Our test pump handles pressures up to 60 bar/860 psi/6 MPa, making it versatile for various applications. The gauge provides precise readings in three different units for comprehensive measurement..

Reinforced Test Hose

The included thickened test hose is designed to withstand high pressures without risk of bursting, delivering reliable readings.

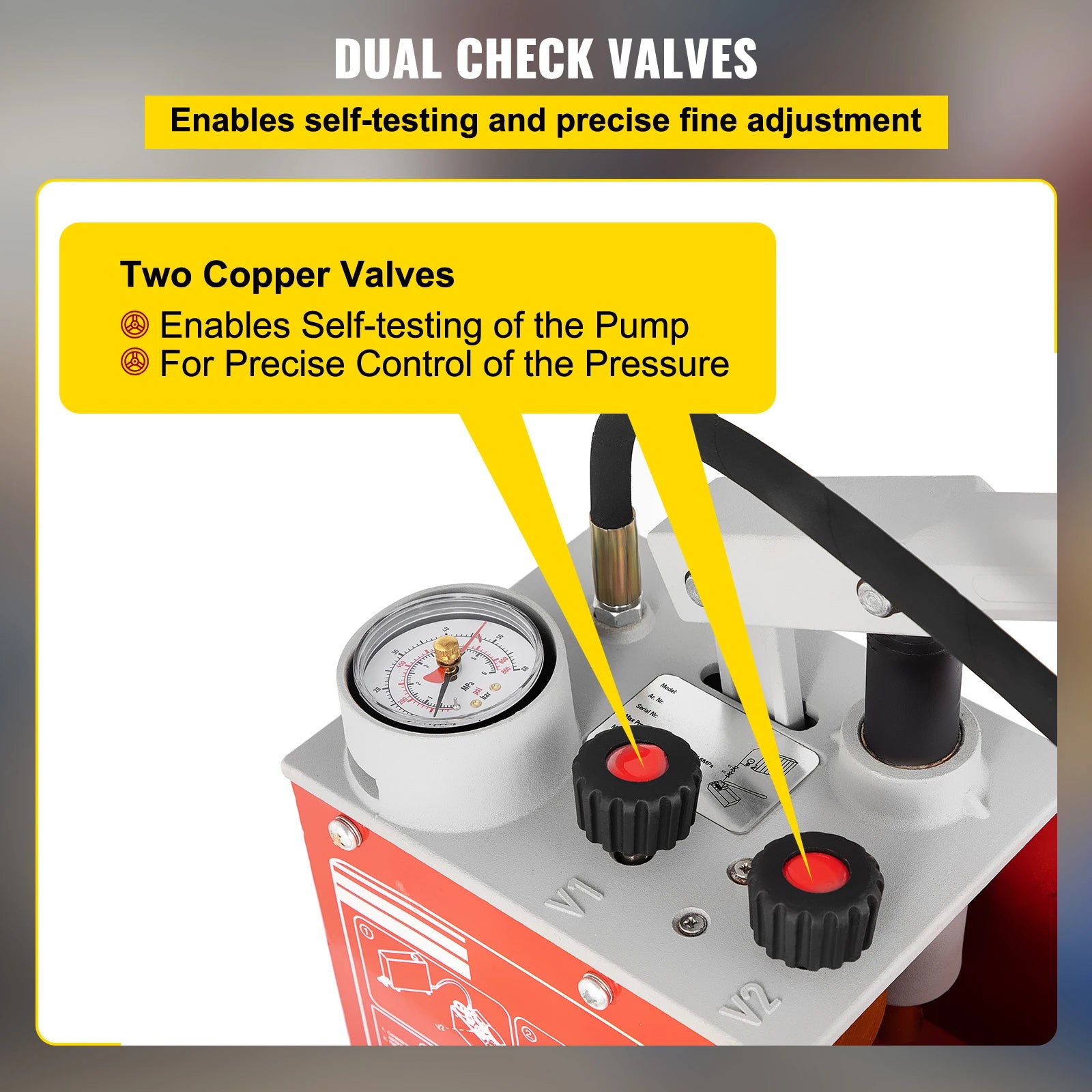

Dual Valve Mechanism

Featuring dual copper check valves, this pump ensures accurate control of the return flow and enhances measurement precision. It also allows for self-testing capabilities.

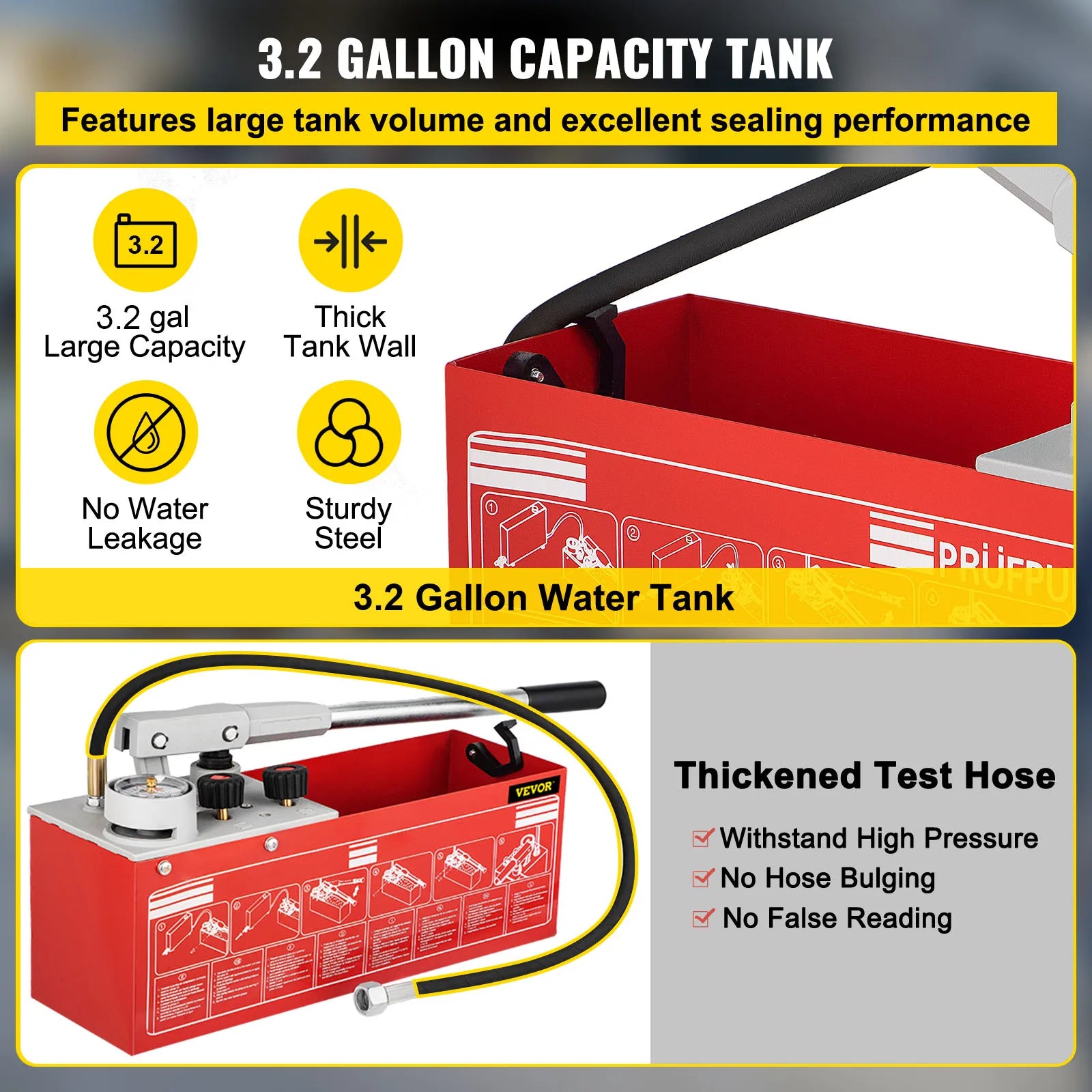

Spacious Tank

Equipped with a 3.2-gallon tank, this pump features a robust wall and seamless construction to prevent leaks and ensure effective sealing.

Specification

• Material: Steel, Aluminium, Copper, Max. Pressure Range: 6 MPa / 60 bar / 860 psi, Test Hose Length: 1.2 m / 47"", Suction Capacity per Stroke: 45 mL / 1.5 oz, Tank Volume: 12 L / 3.2 Gallon, Connection: R 1/2"", Pressure Gauge: Three Units (MPa/bar/psi), Product Size: 49 x 16 x 17 cm / 19.3"" x 6.3"" x 6.7"", Product Weight: 8 kg / 17.6 lbs, Model: SYB-60B

Package Content

• 1 x Hydrostatic Pressure Test Pump
