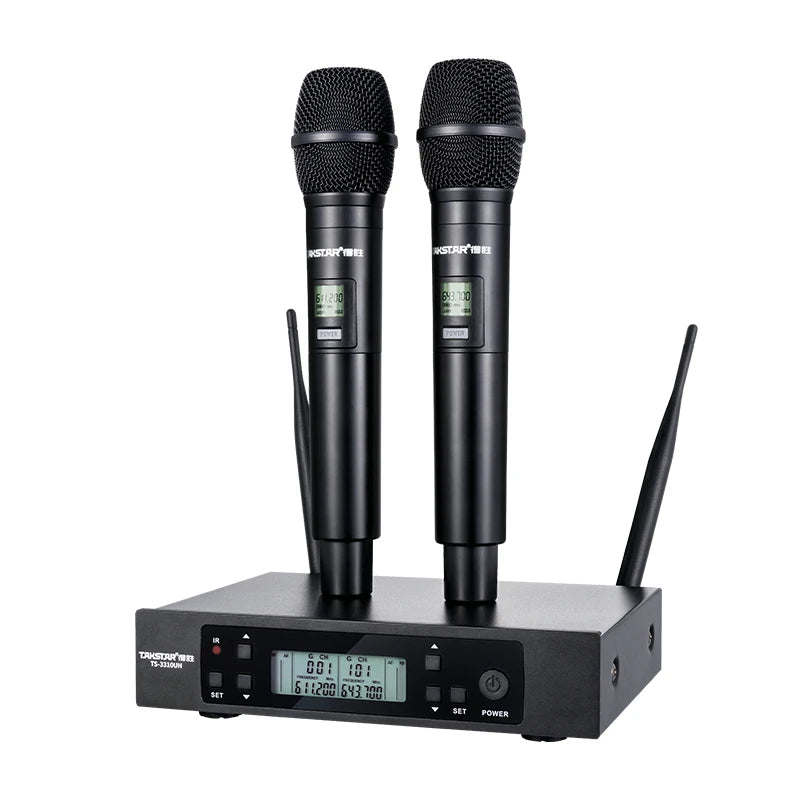

Takstar TS-3310UH Wireless Microphone UHF integrated circuit KTV Conference Home Entertainment Outdoor Performance
Takstar TS-3310UH Wireless Microphone UHF integrated circuit KTV Conference Home Entertainment Outdoor Performance
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Item Type: Wireless Microphone
Model Number: Takstar TS-3310UH
Origin: Mainland China

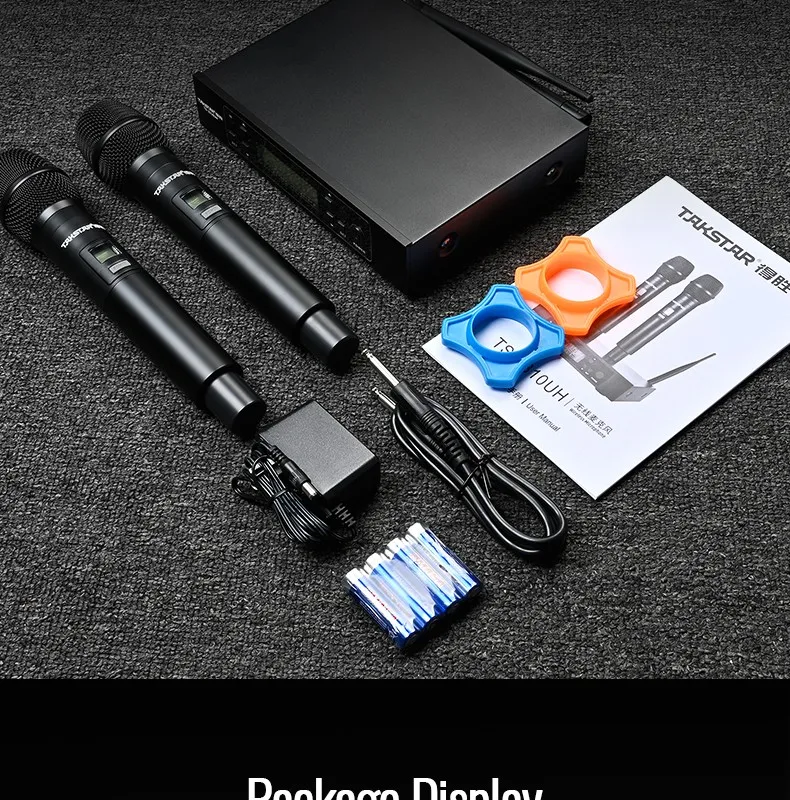

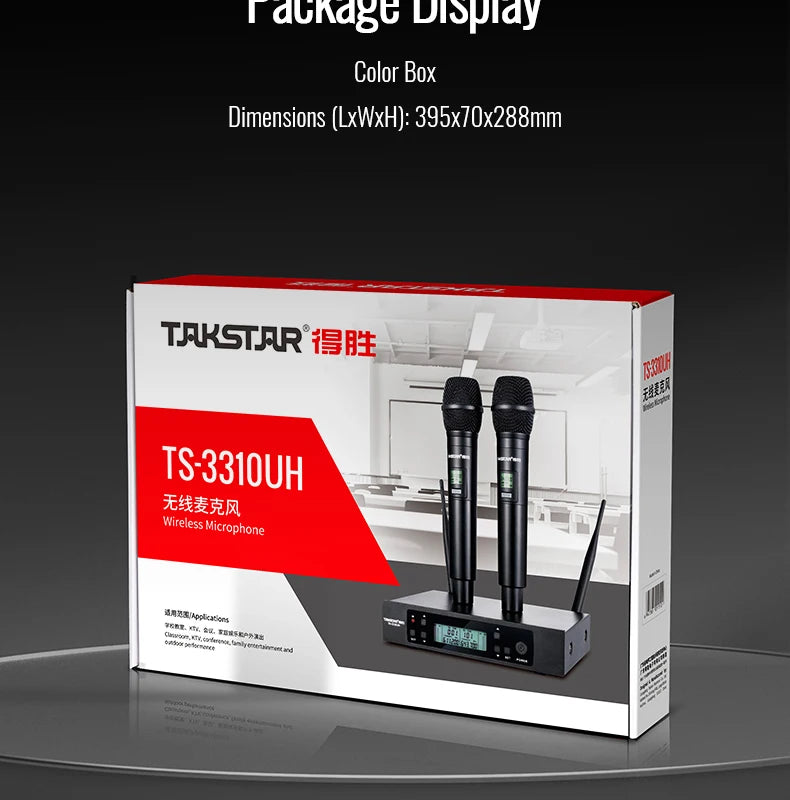

Package: Yes

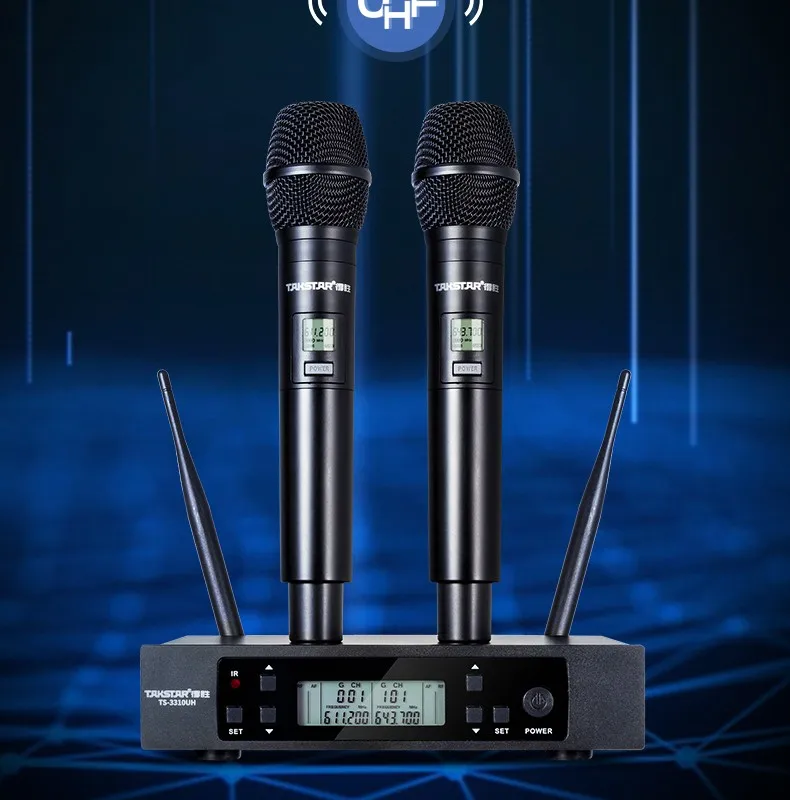

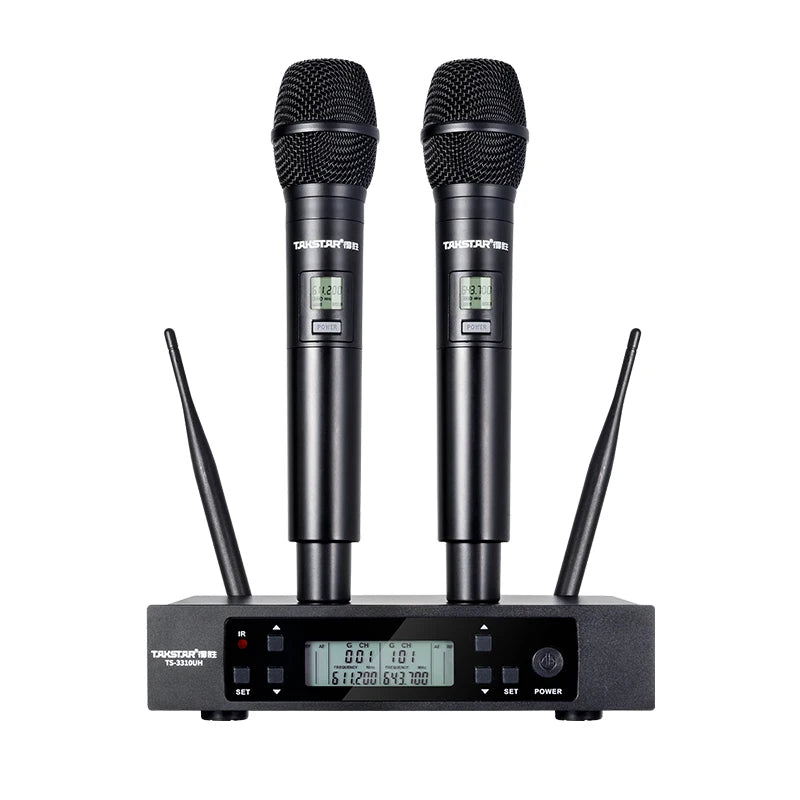

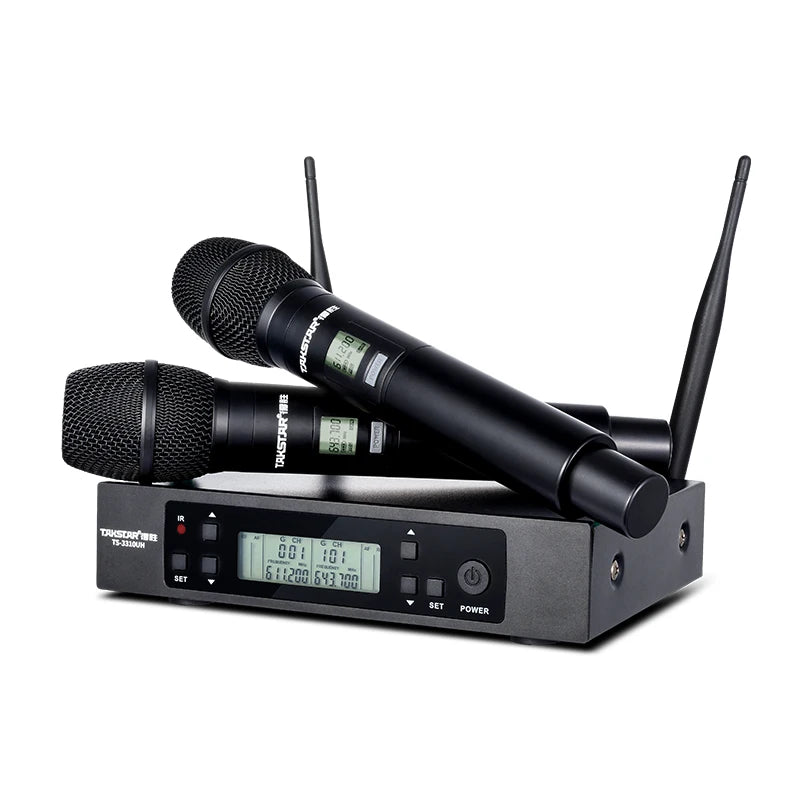

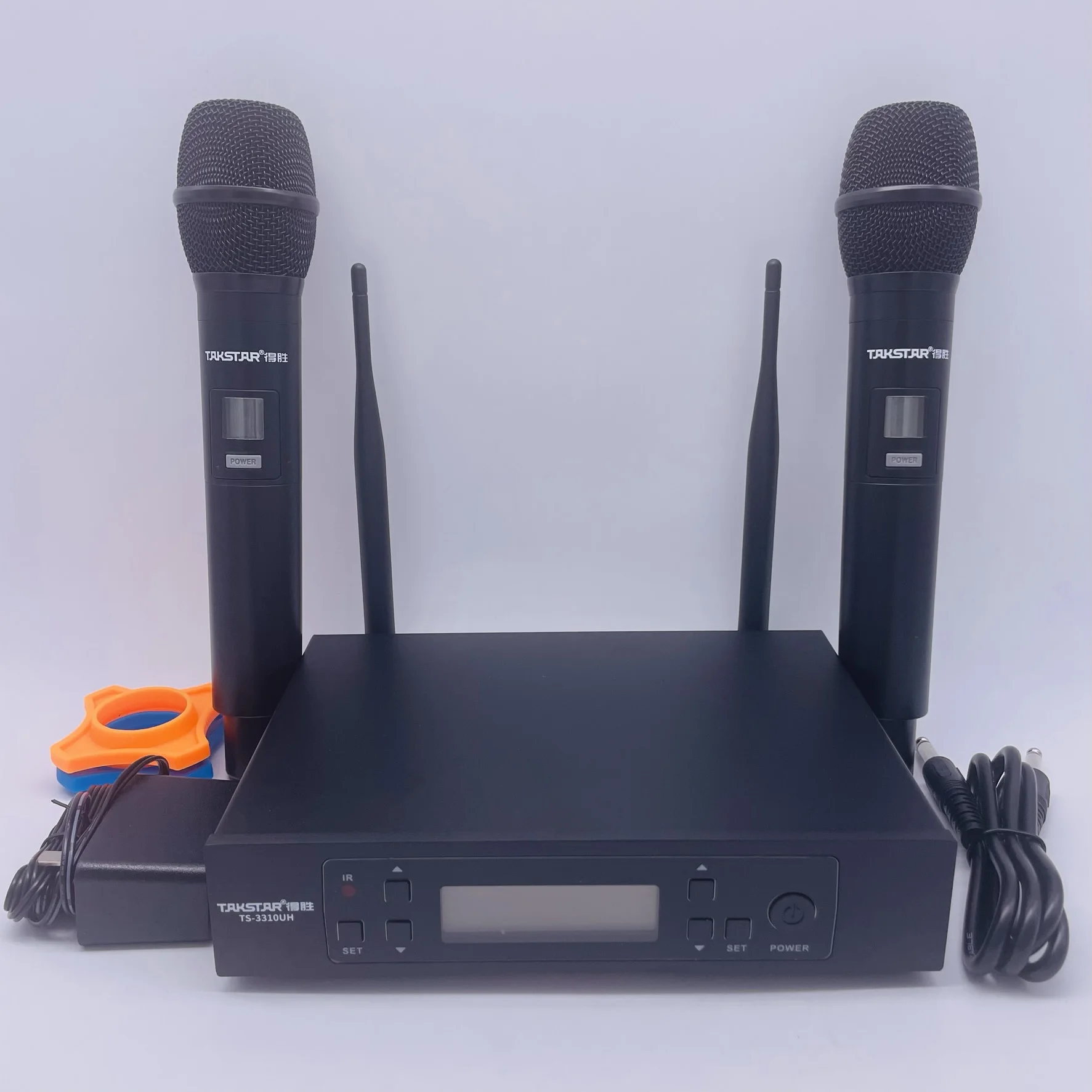

TS-3310UH Wireless Microphone
• High-performance UHF integrated circuit, multiple frequency channels selectable, better stability and nook coverage
• Special channel ID code (tone-key) function effectively prevents crosstalk

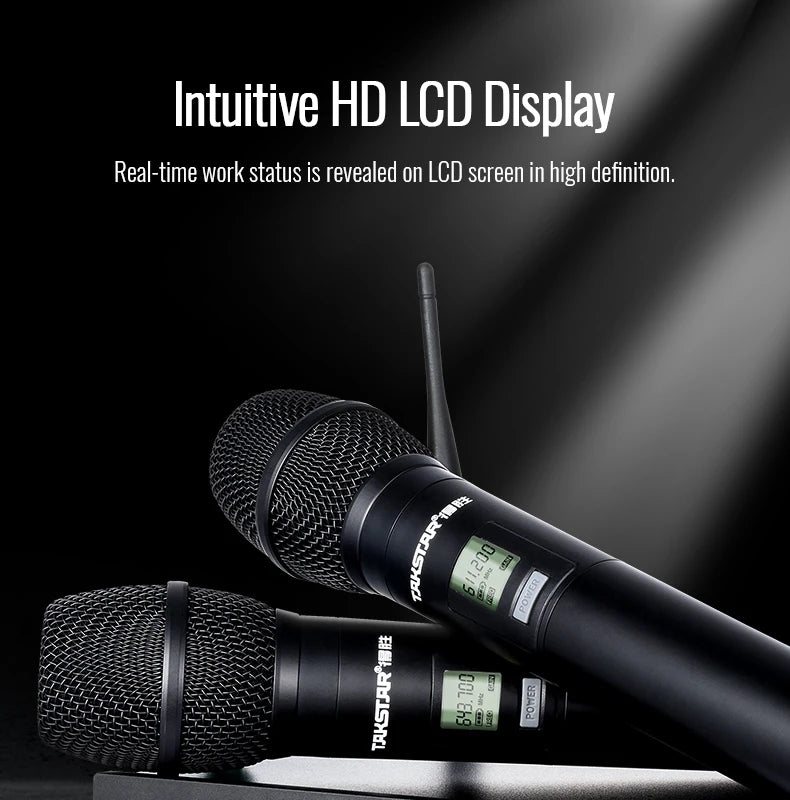

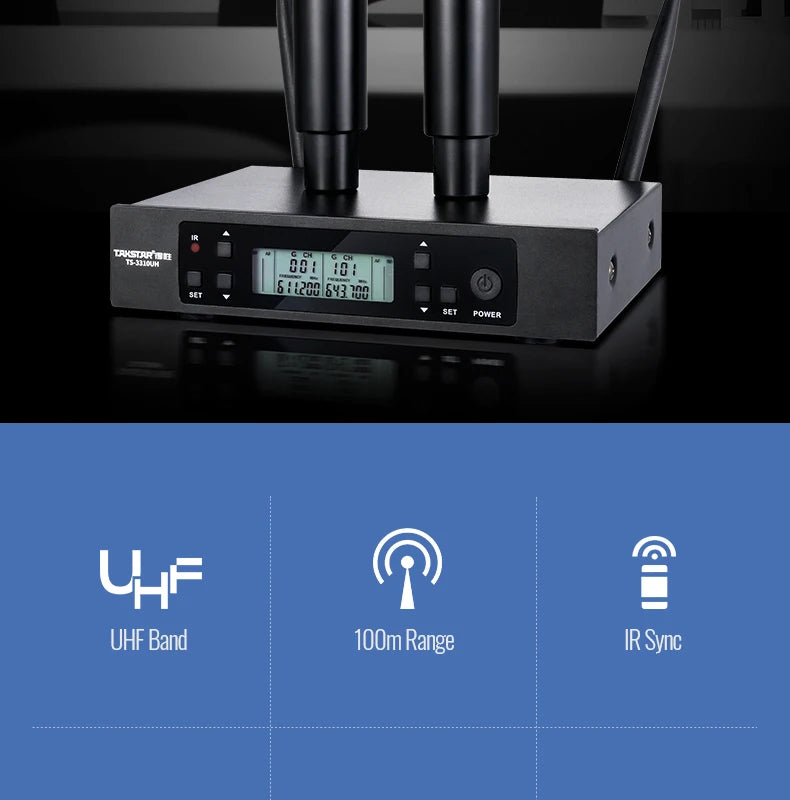

• Intuitive work status overview on LCD display
• One-key scan function on receiver automatically finds the best available channel

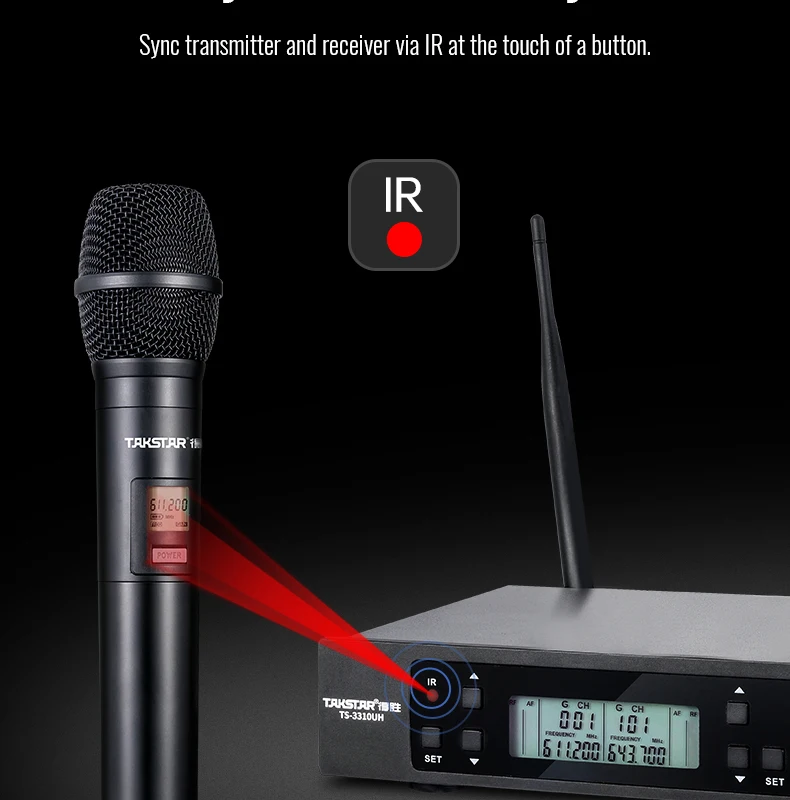

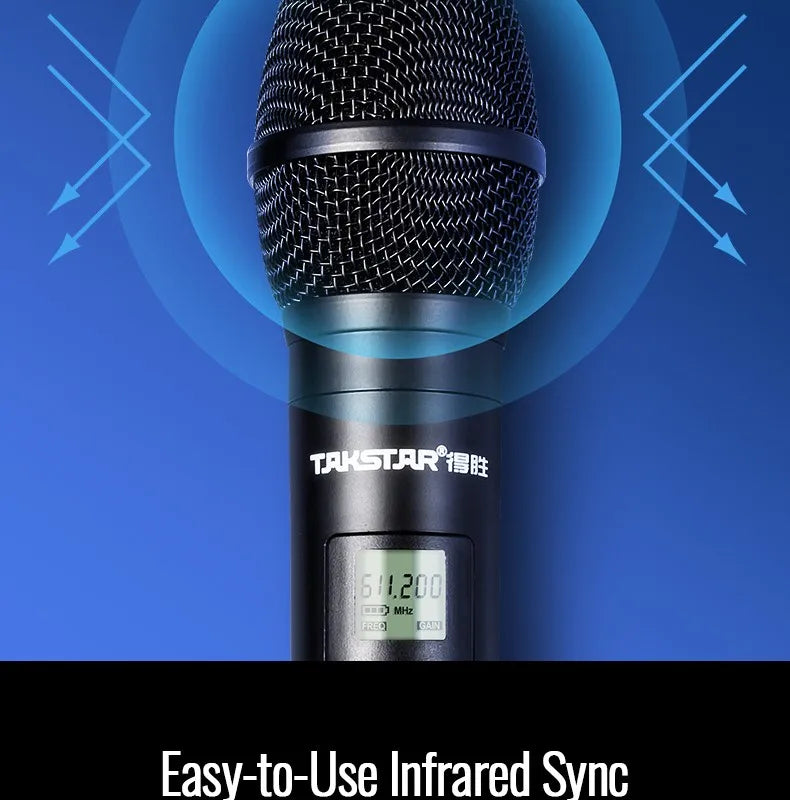

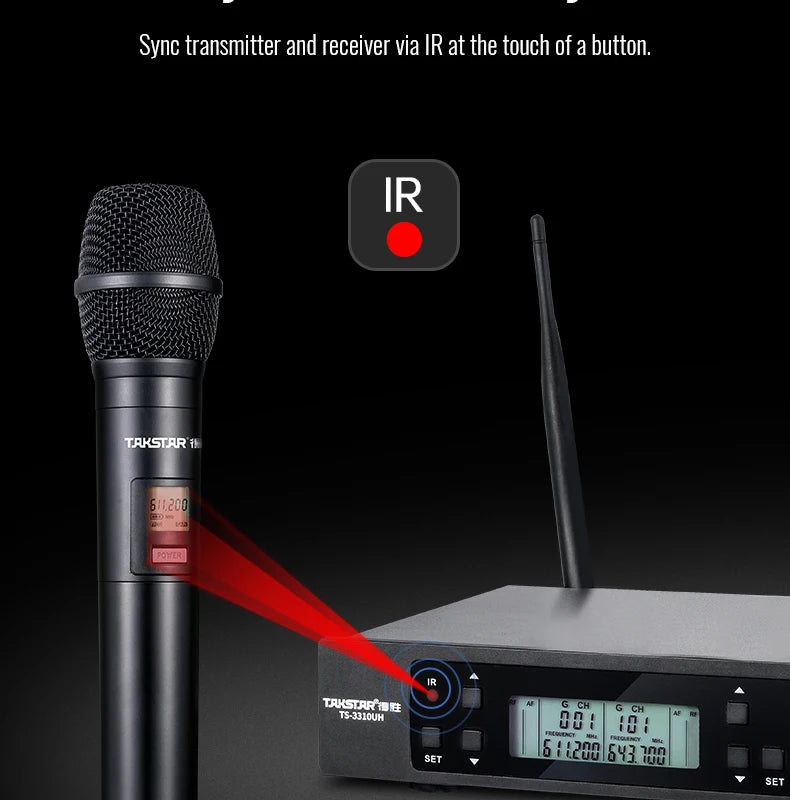

• IR sync to easily sync transmitter and receiver in one easy press

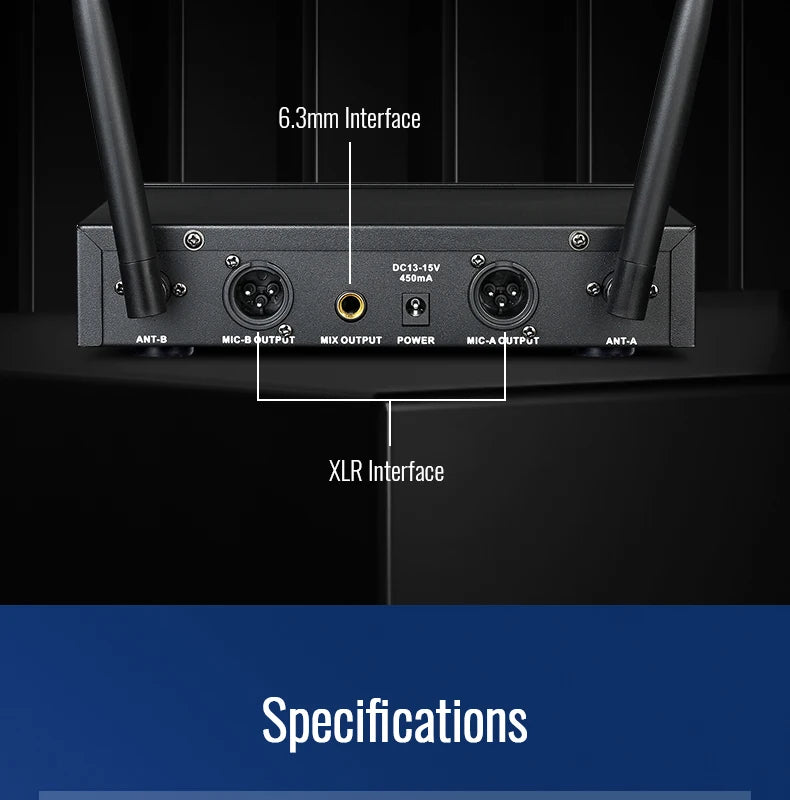

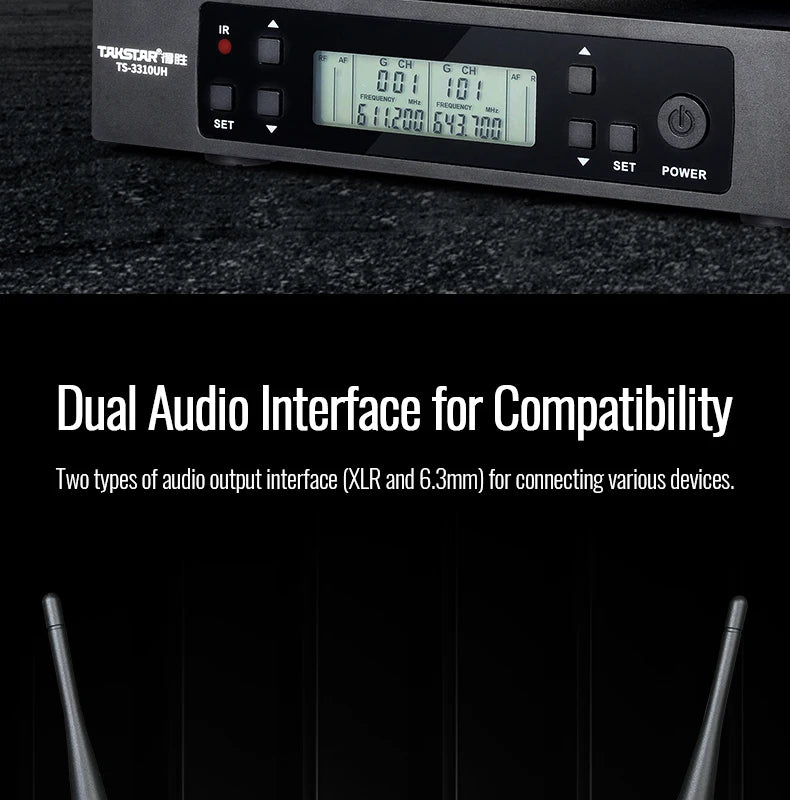

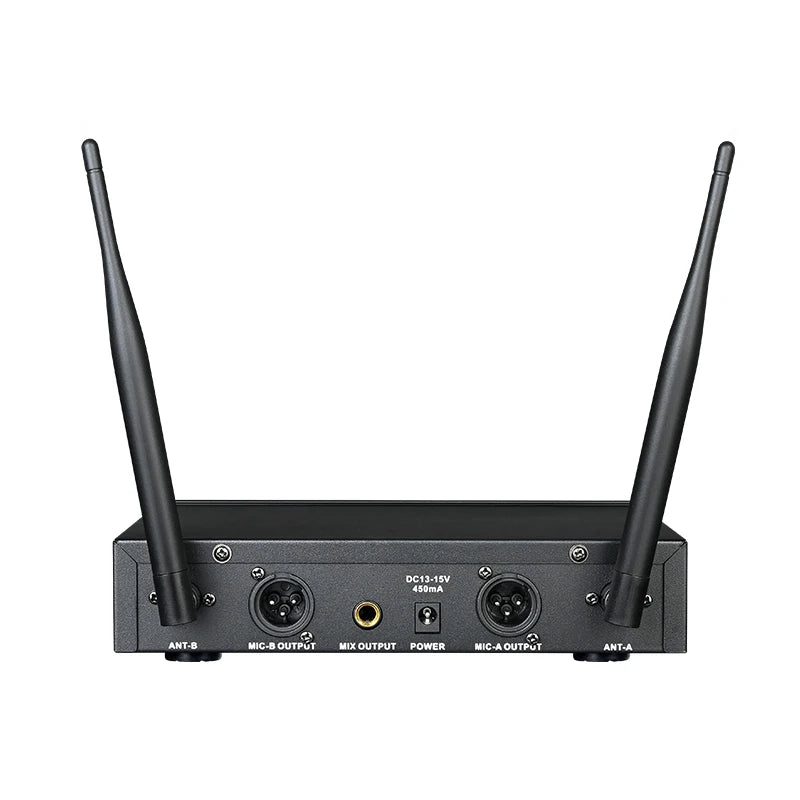

• Independent balanced XLR and unbalanced 6.3 combo output

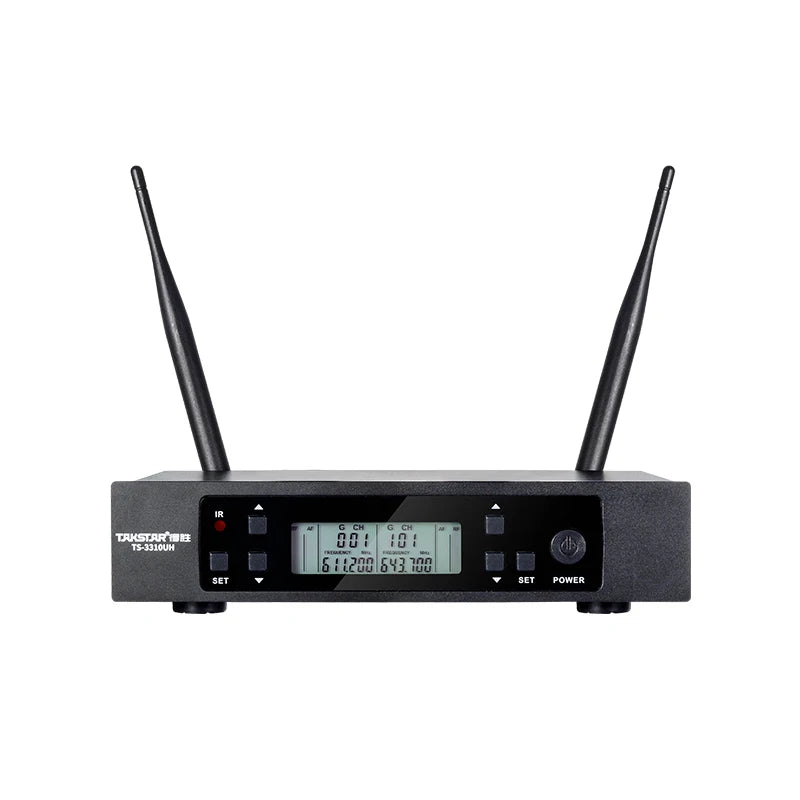

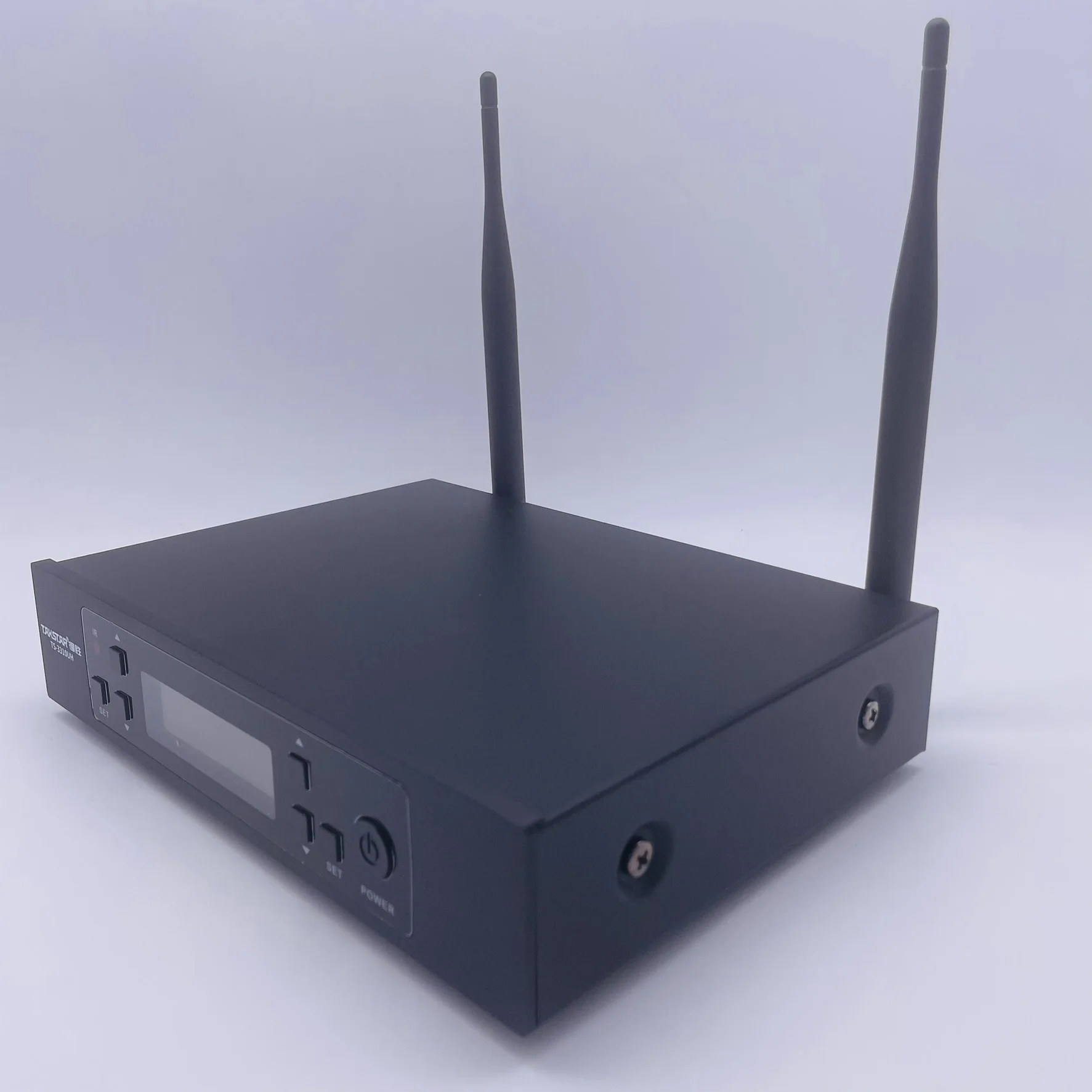

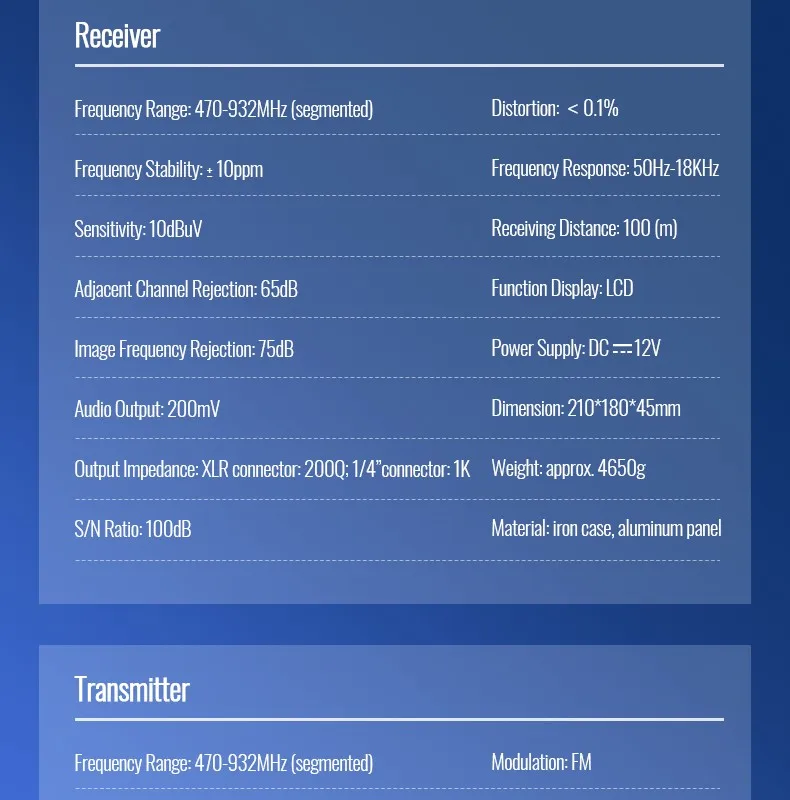

Receiver:
• Frequency Range: 470-932MHz (segmented)
• Frequency Stability:± 10ppm
• Sensitivity: 10dBuV
• Adjacent Channel Rejection: 65dB
• Image Frequency Rejection: 75dB
• Audio Output: 200mV
• Output Impedance: XLR connector: 200Q; 1/4”connector: 1K
• S/N Ratio: 100dB
• Distortion: ＜0.1%
• Frequency Response: 50Hz-18KHz

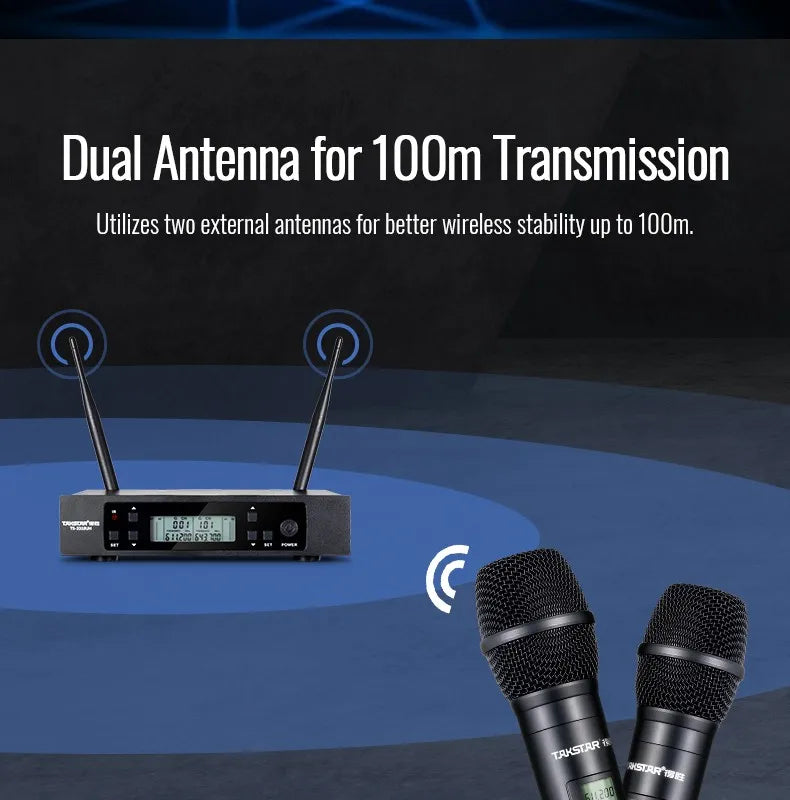

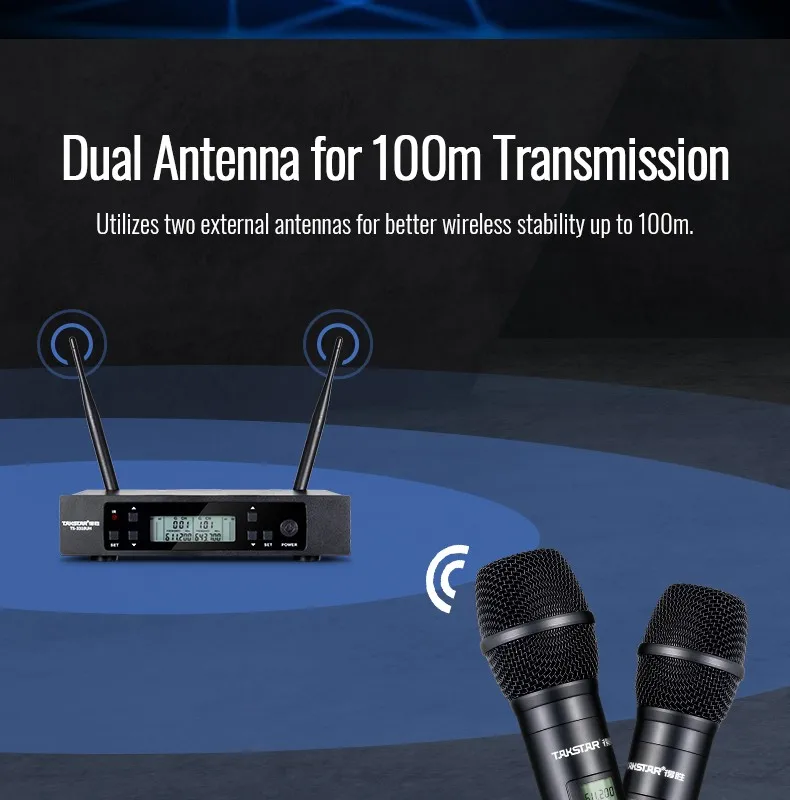

• Receiving Distance: 100 (m)
• Function Display: LCD
• Power Supply: DC12V
• Dimension: 482*490*44mm
• Weight: approx. 4650g
• Material: iron case, aluminum panel

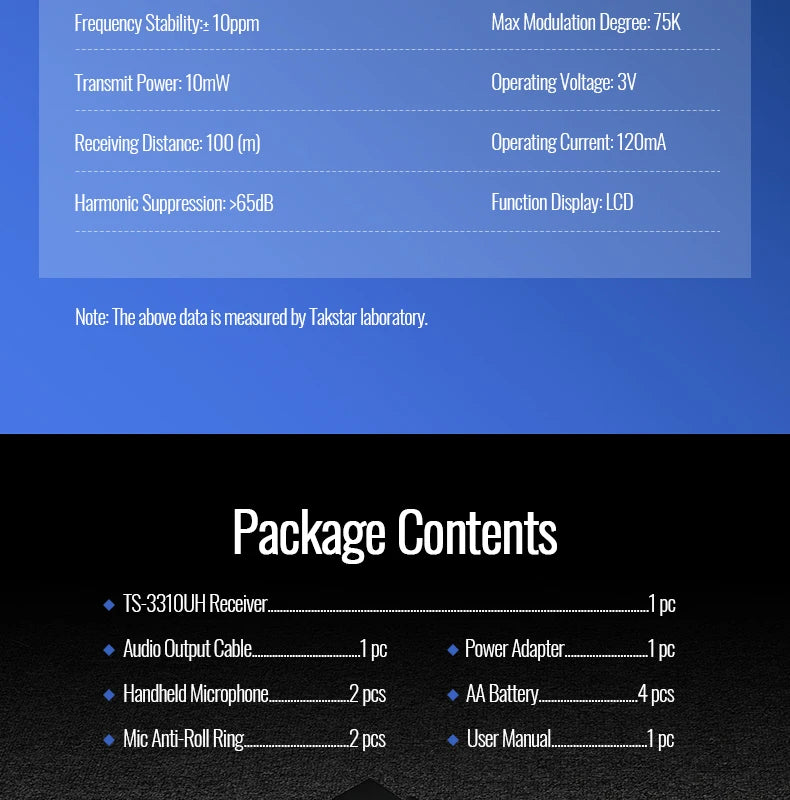

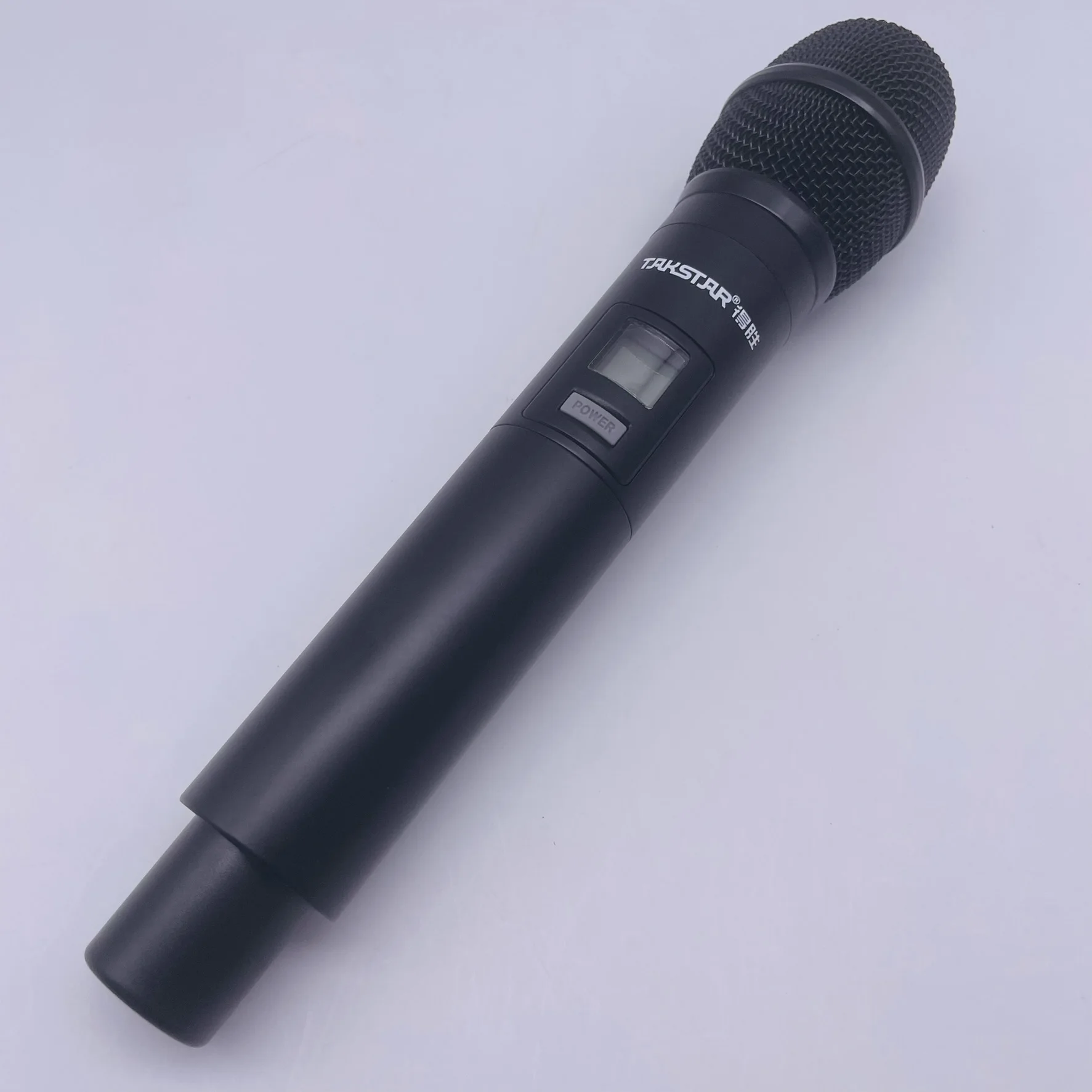

Transmitter:
• Frequency Range: 470-932MHz (segmented)
• Frequency Stability:± 10ppm
• Transmit Power: 10mW
• Receiving Distance: 100 (m)
• Harmonic Suppression: >65dB
• Modulation: FM
• Max Modulation Degree: 75K
• Operating Voltage: 3V
• Operating Current: 120mA
• Function Display: LCD
Note: The above data is measured by Takstar laboratory.
