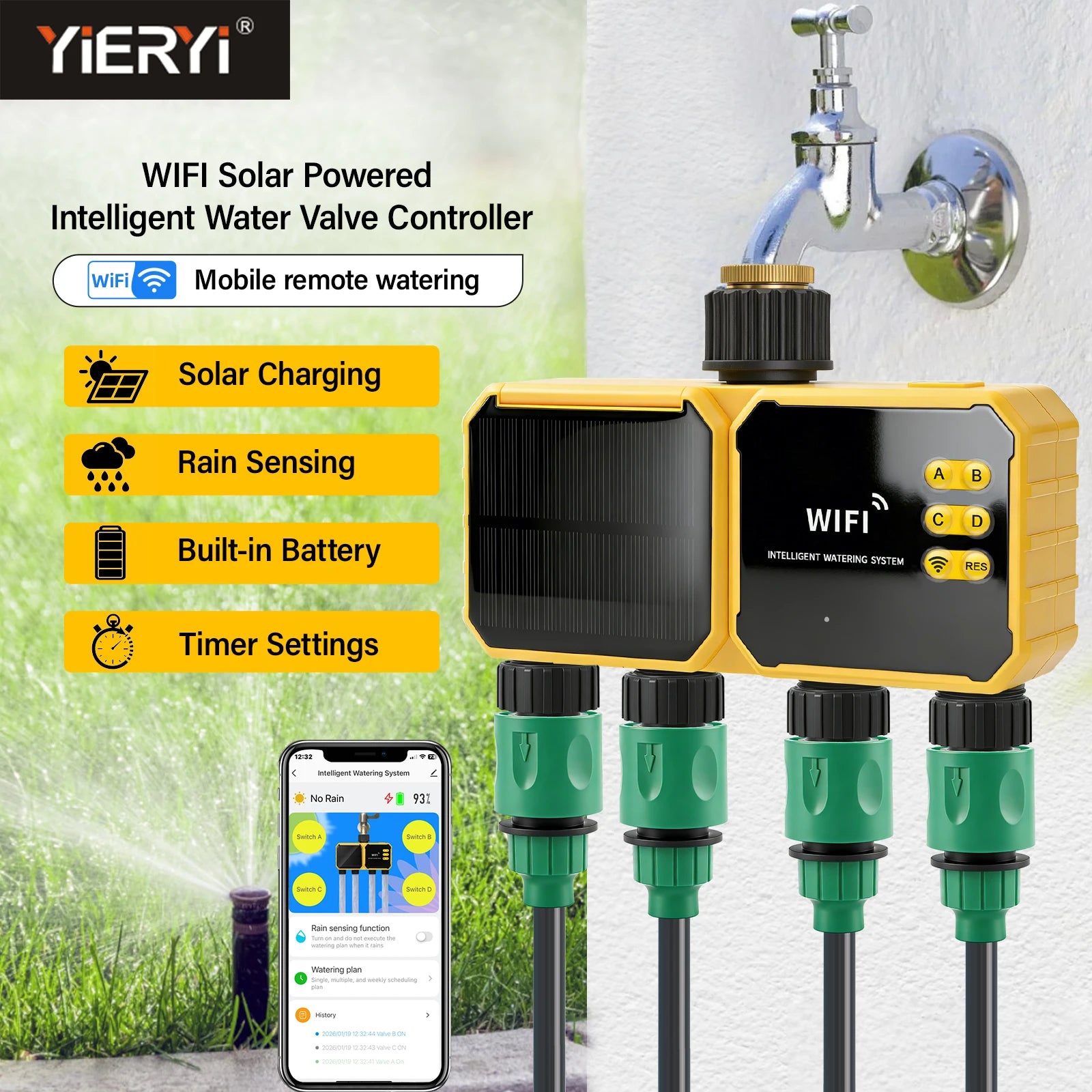

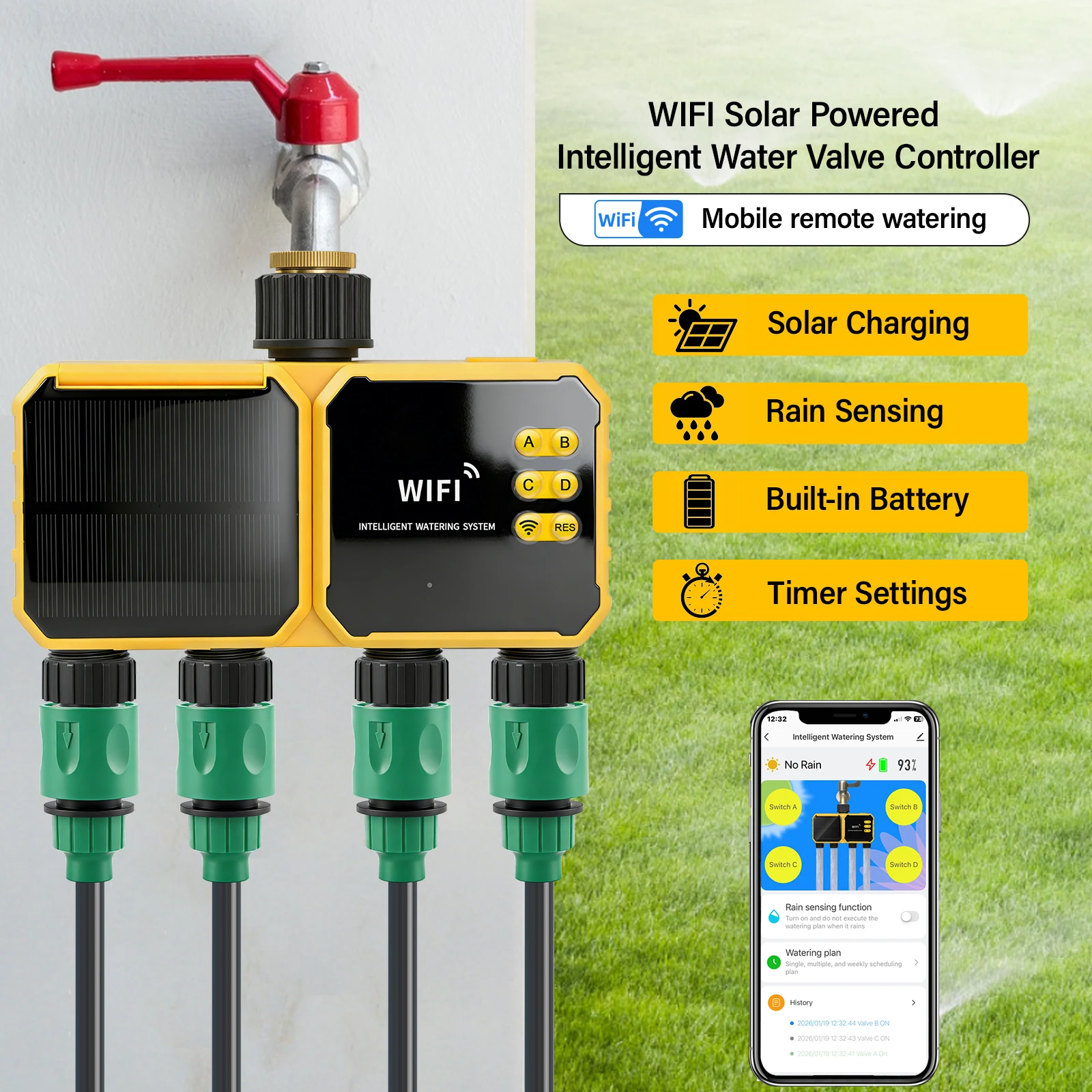

Yieryi Solar WiFi Smart Water Timer 4 Zone Independent Control Automatic Irrigation System IPX6 Rain Sensor Garden Water Valve

Watering Timer Features:

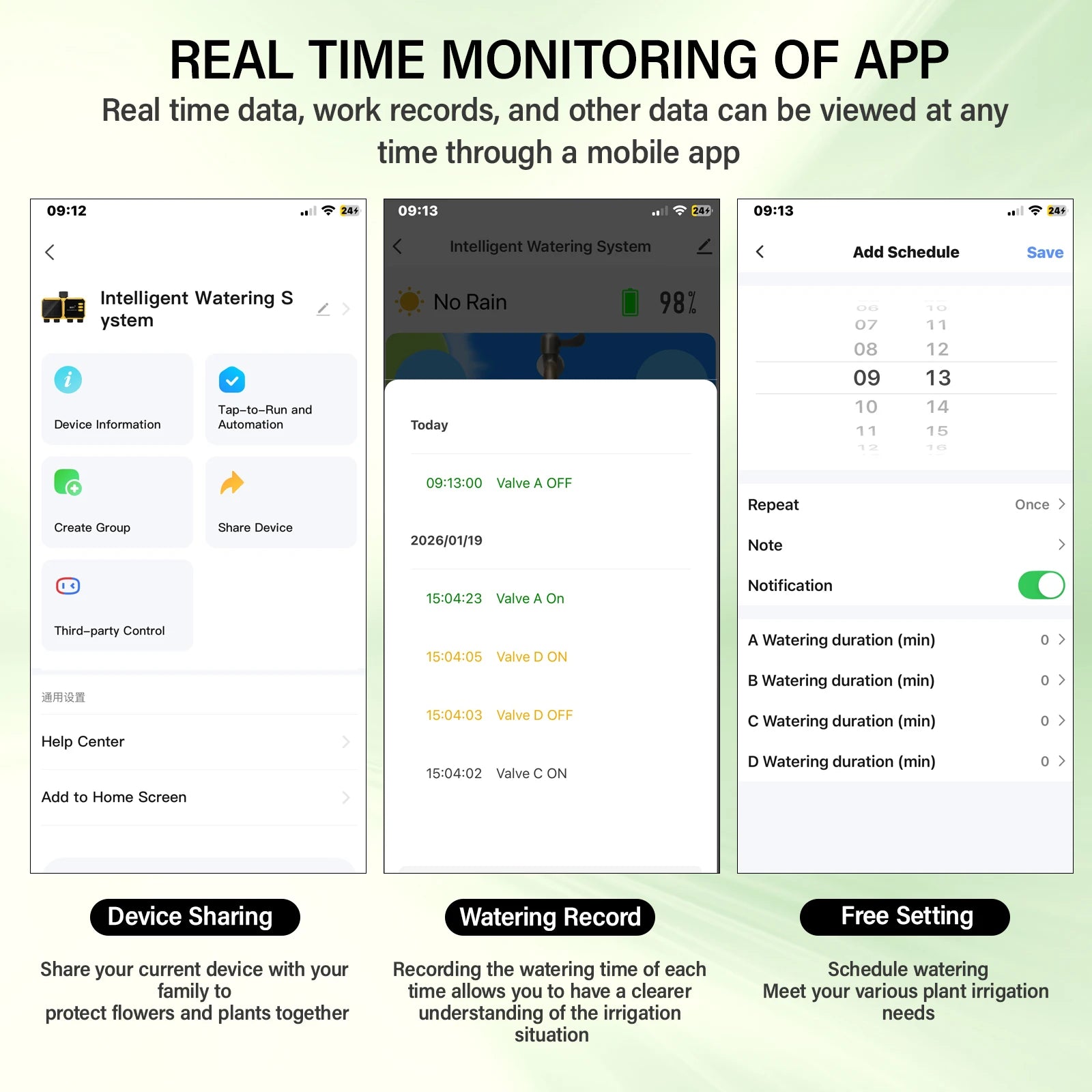

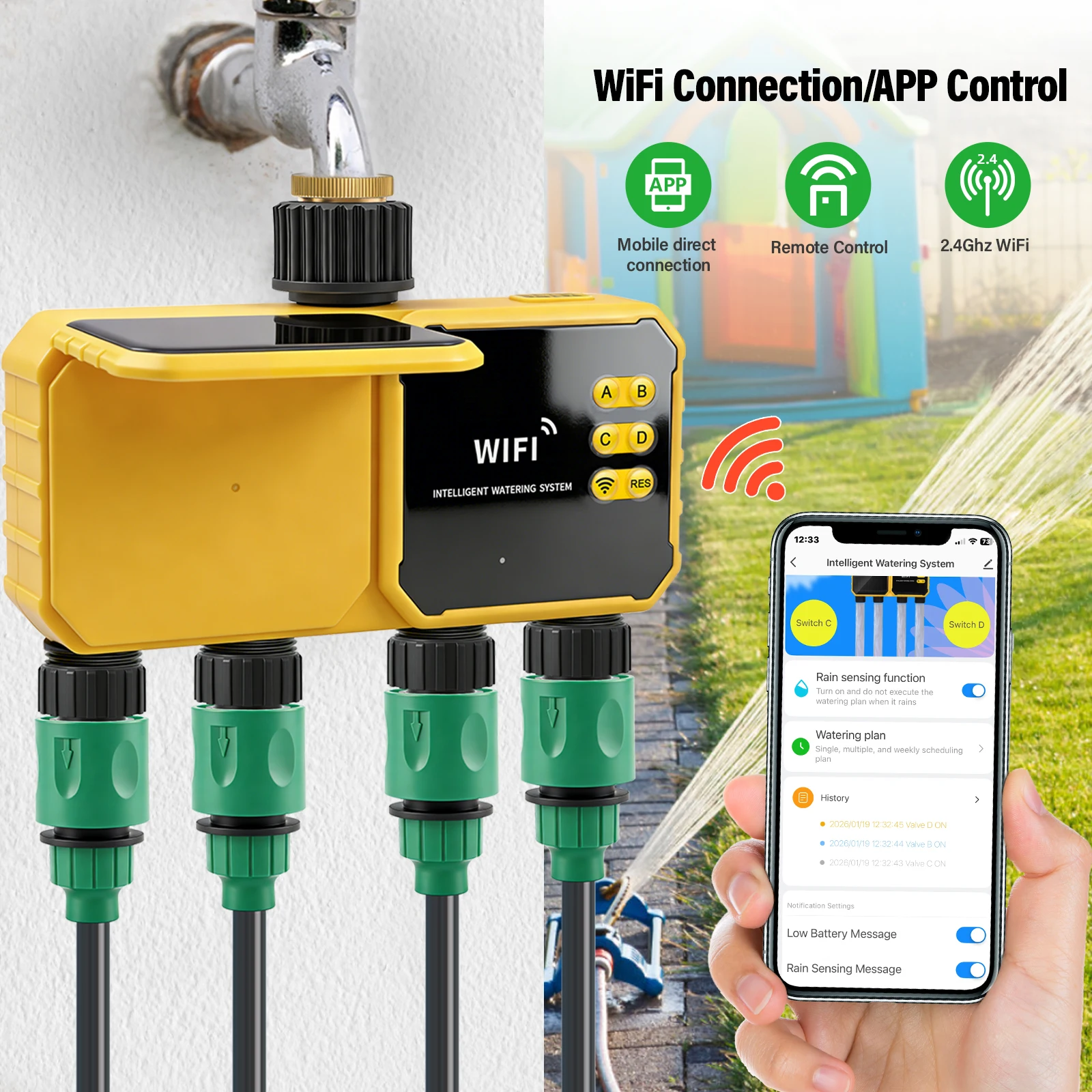

Smart WiFi remote control & real-time monitoring

Connect to 2.4GHz WiFi to manage your garden irrigation from anywhere via the Smart Life App. This Yieryi smart water timer allows you to start, pause, or adjust watering schedules remotely. Receive real-time notifications on battery status and history logs, ensuring your lawn stays healthy even when you are traveling or at the office.

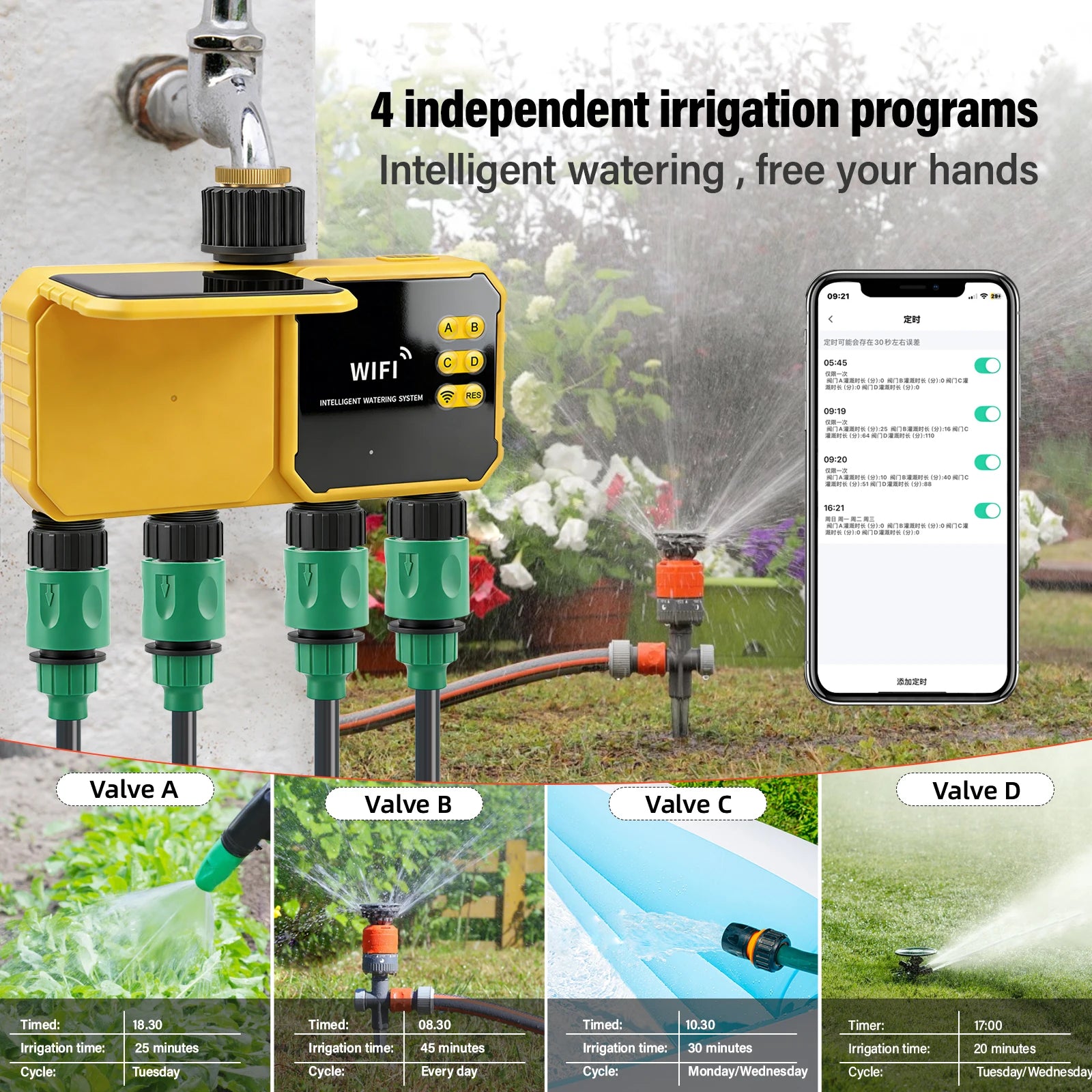

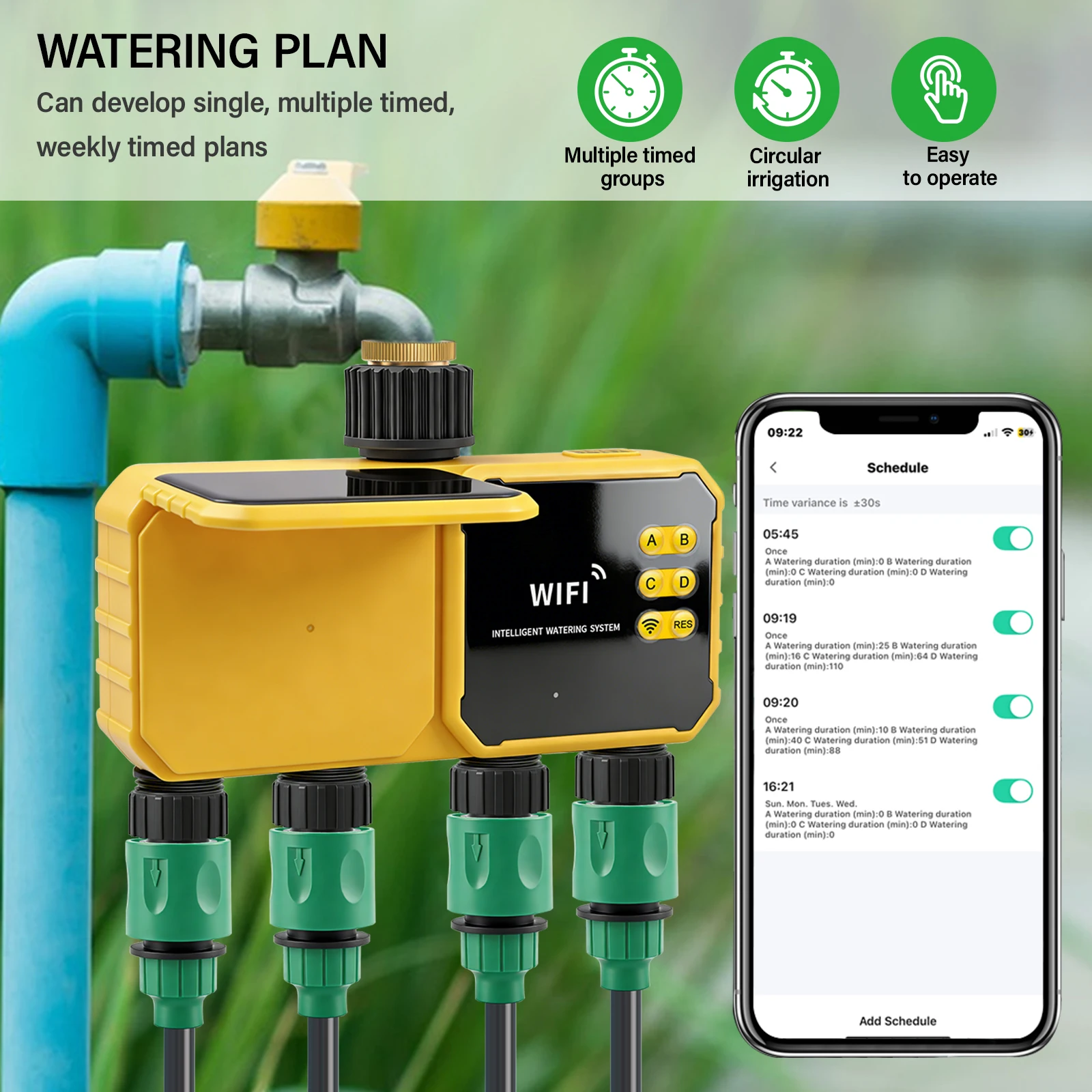

4 Independent outlets for multi-zone precision

Featuring 4 separate water valves, this system provides 4 independent irrigation programs. You can customize Valve A for the lawn, Valve B for the vegetable garden, and Valve C/D for delicate flower beds. Each zone can be programmed with specific start times, durations, and frequencies without interference.

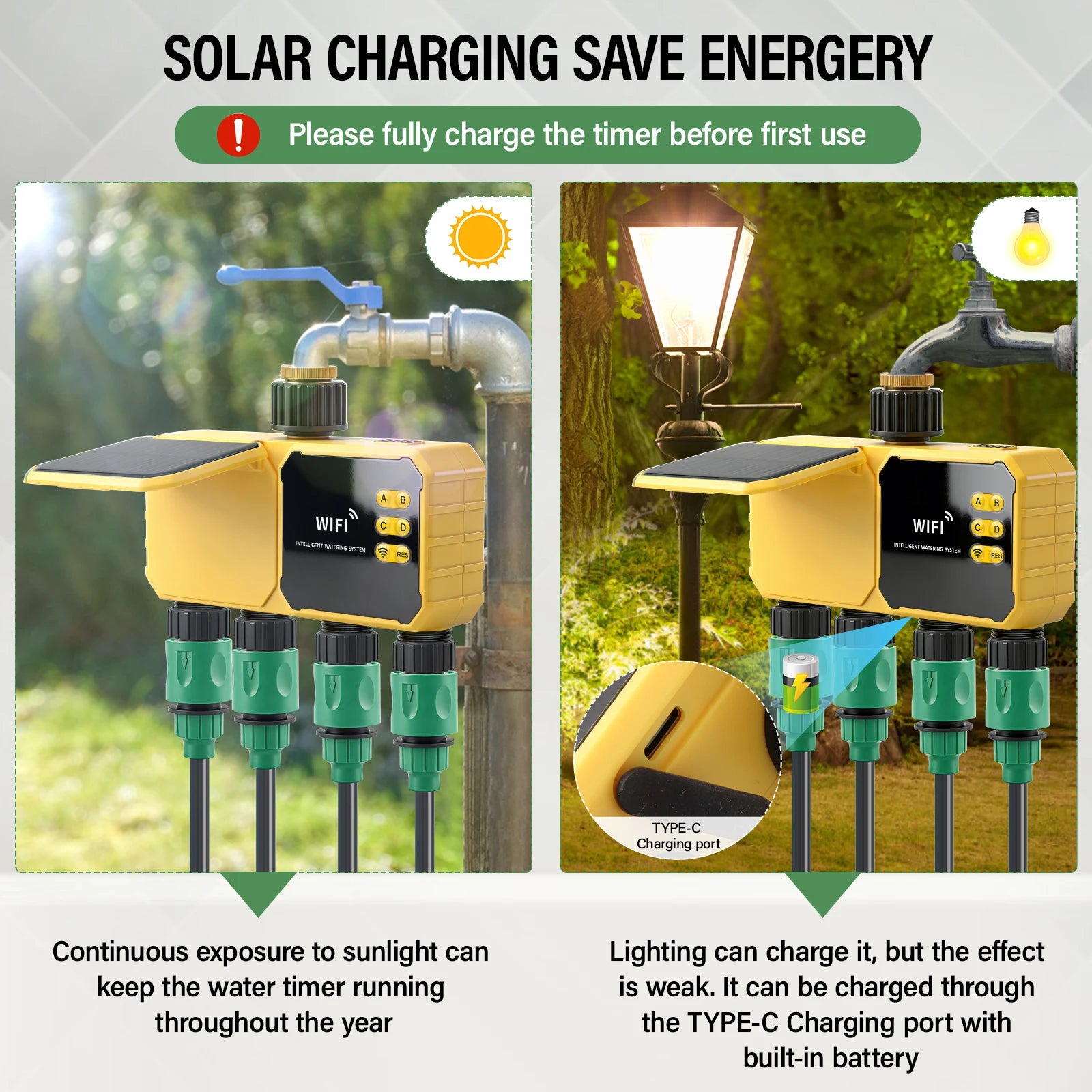

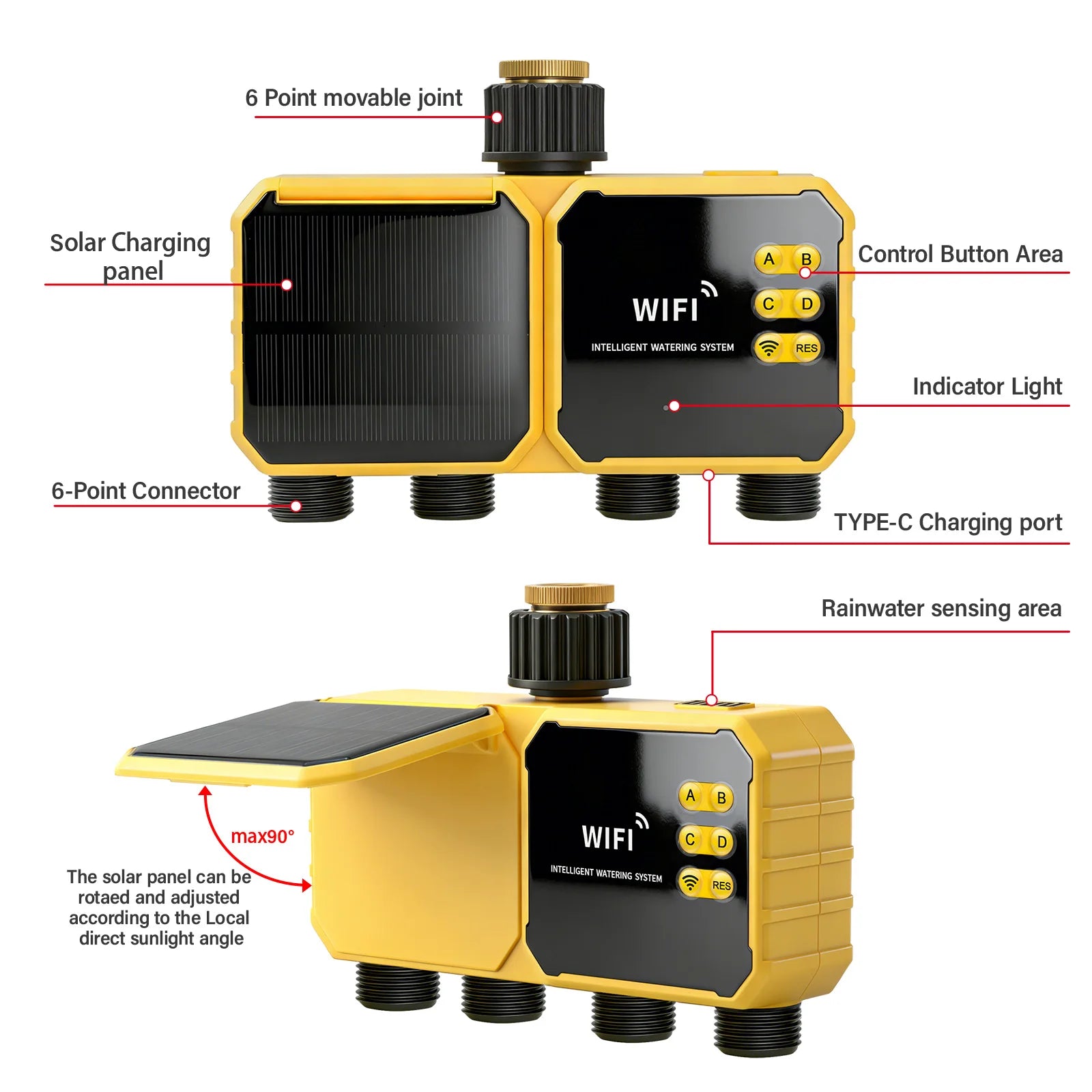

Solar powered & Type-C dual charging system

Equipped with a high-efficiency solar panel and a built-in large-capacity rechargeable battery, this timer harnesses sunlight to stay powered year-round. For indoor use or during extended rainy seasons, the integrated Type-C charging port ensures a quick emergency power boost. It’s an eco-friendly, cost-saving solution.

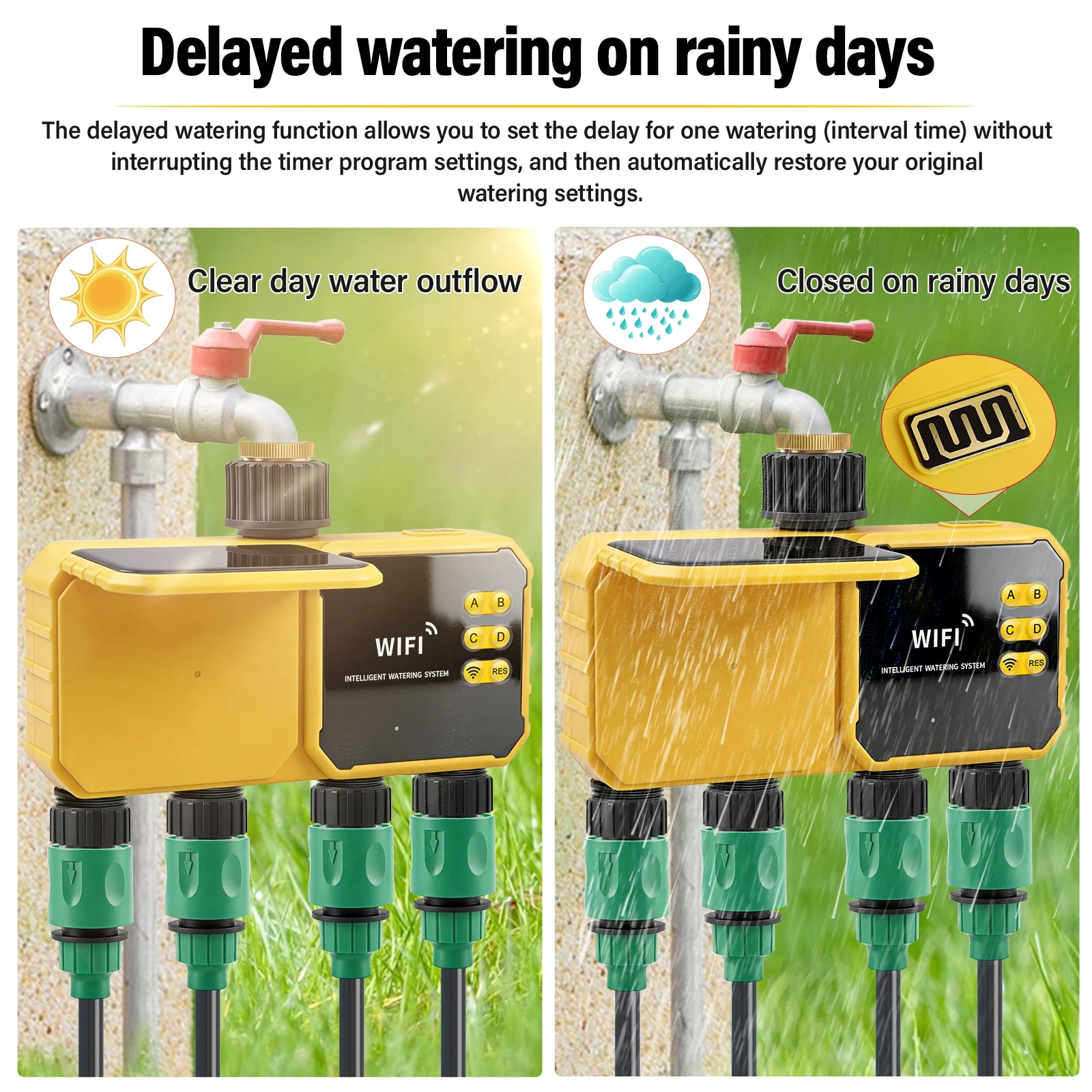

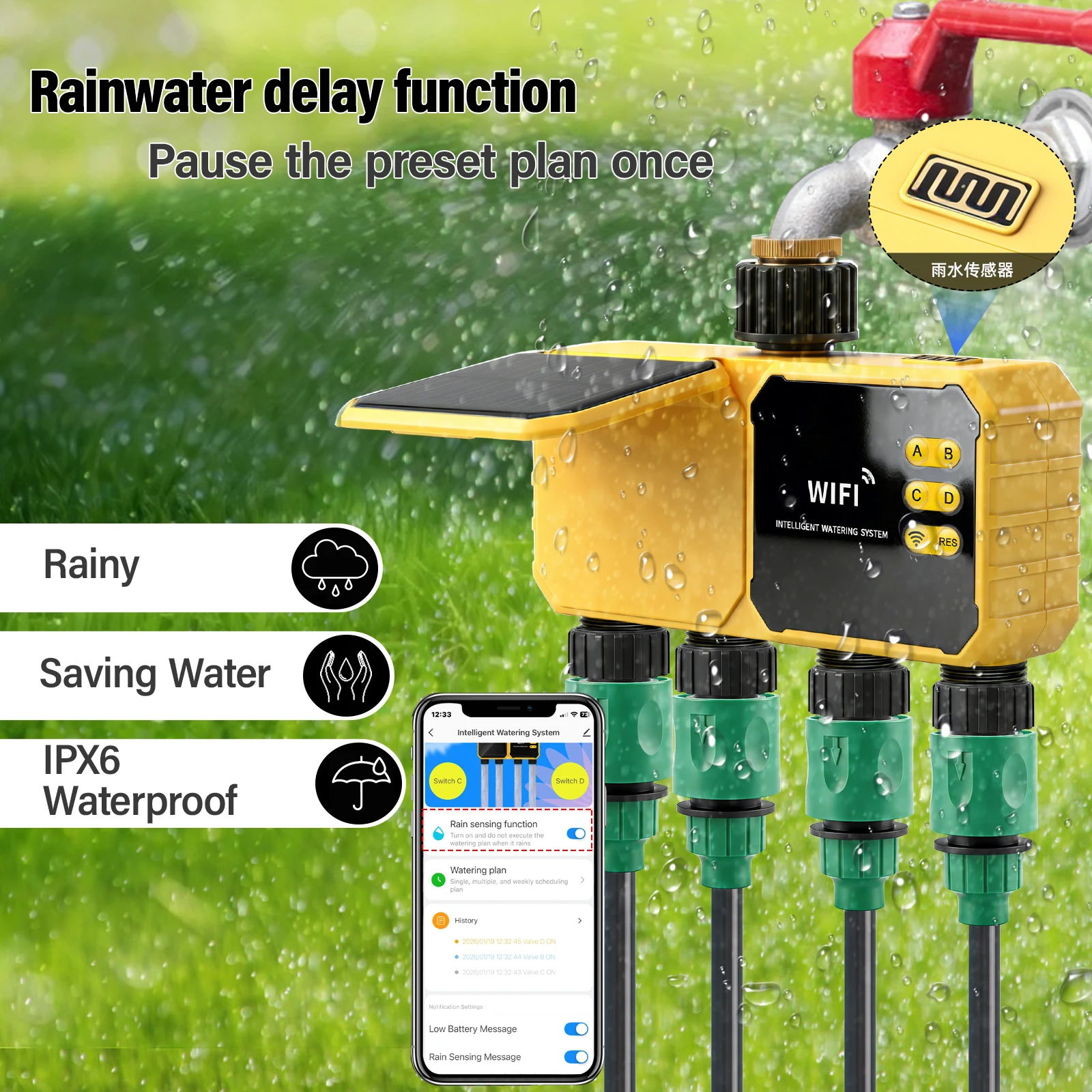

Upgraded rain sensing & IPX6 waterproof design

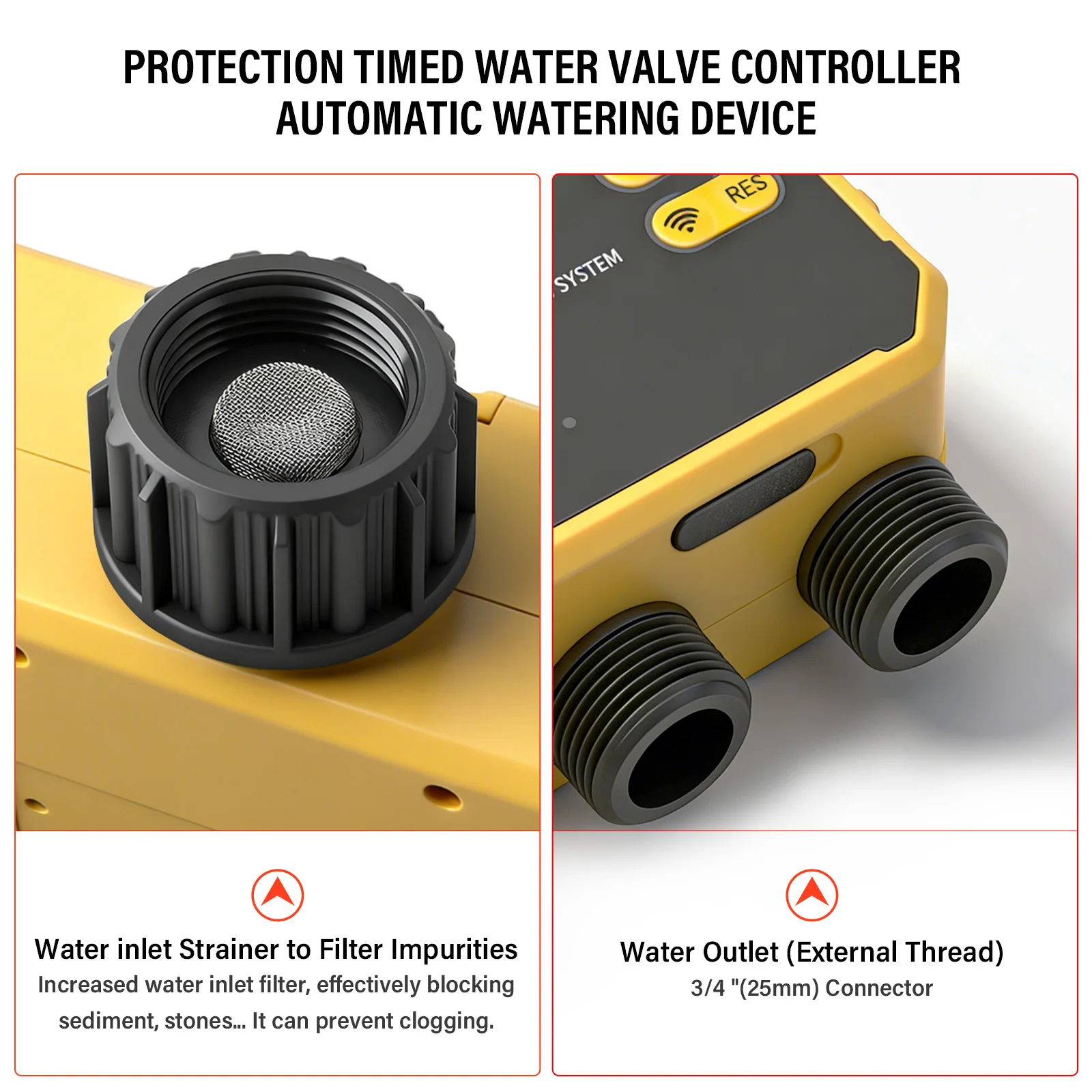

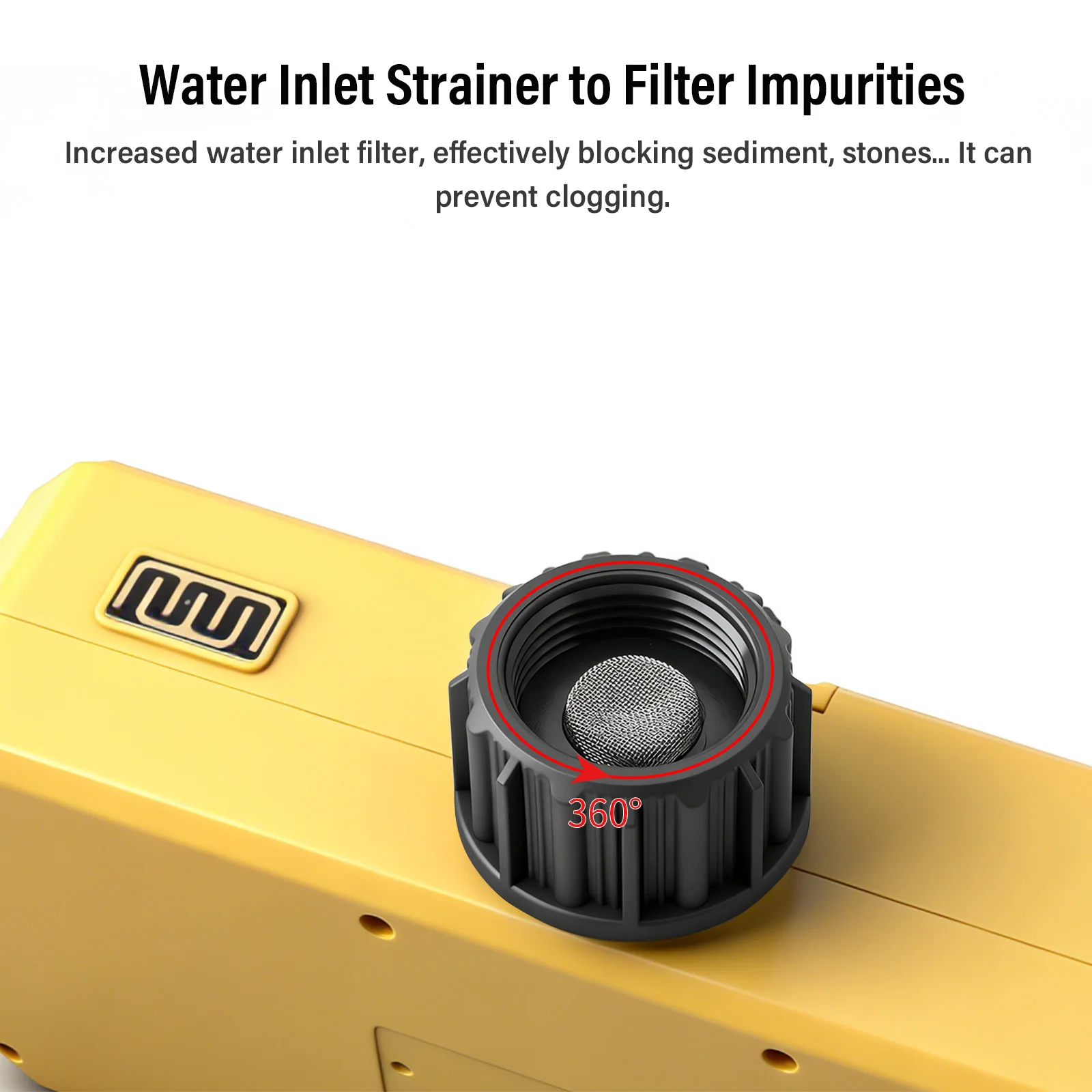

Stop wasting water on rainy days! The highly sensitive rain sensor chip automatically detects precipitation and pauses your preset schedules to prevent over-watering. Built with IPX6 waterproof, UV-resistant materials and featuring an inlet filter to block impurities, this controller is engineered for durable outdoor performance.

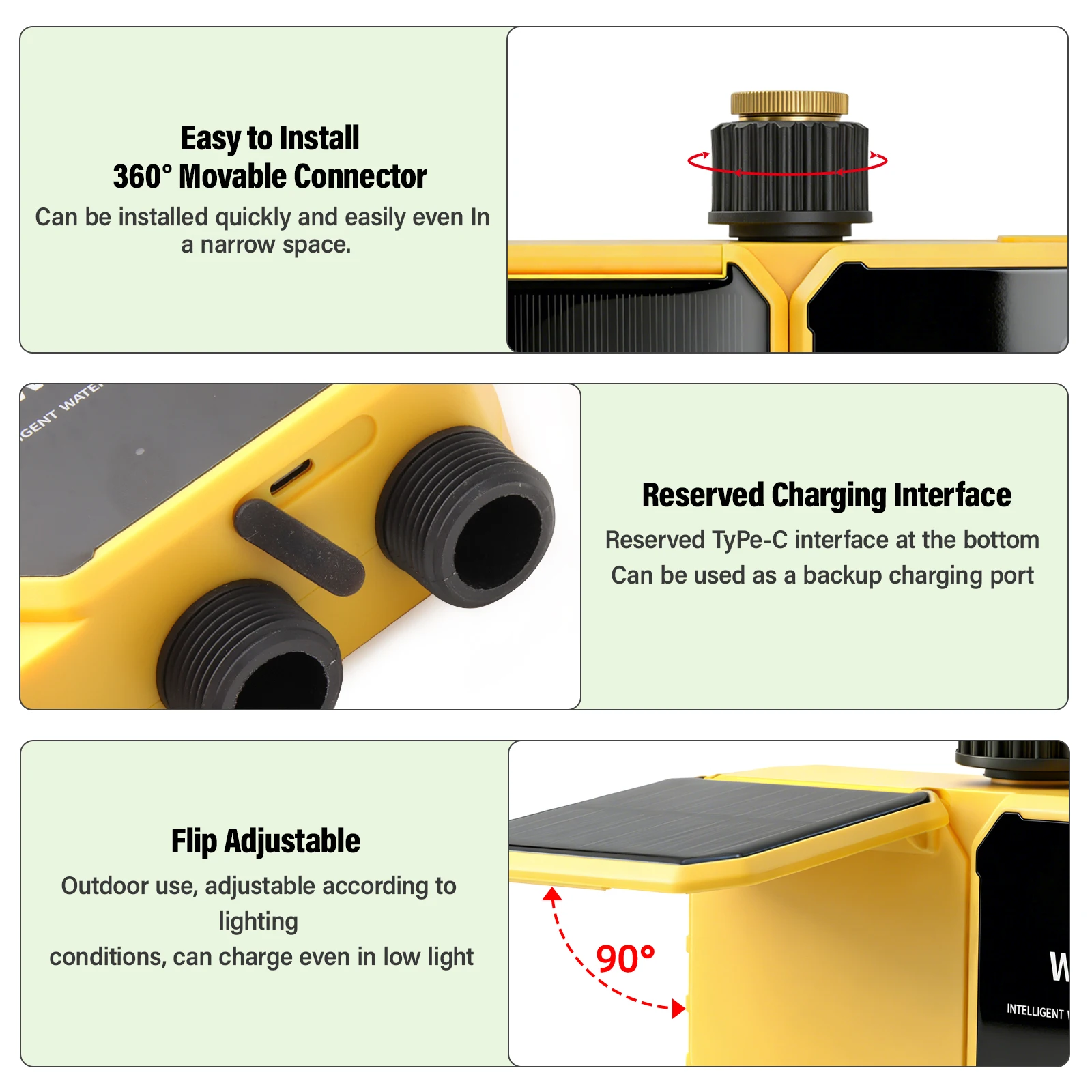

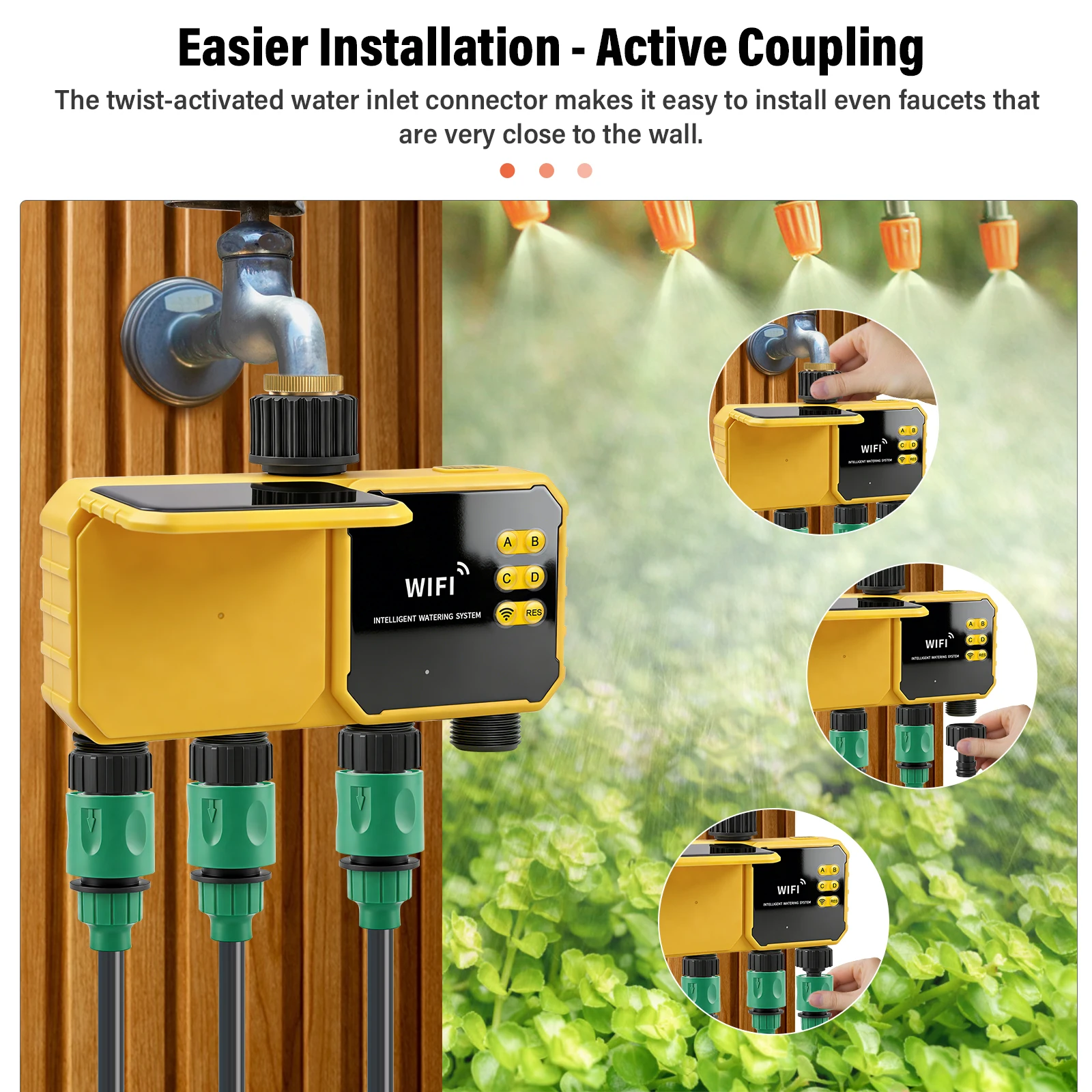

Easy Installation & Precision Irrigation

The 360° active coupling connector allows for quick, tool-free installation even in tight spaces near walls. For specialized needs, the circular irrigation mode supports short-interval watering, making it an ideal solution for misting and cooling applications.

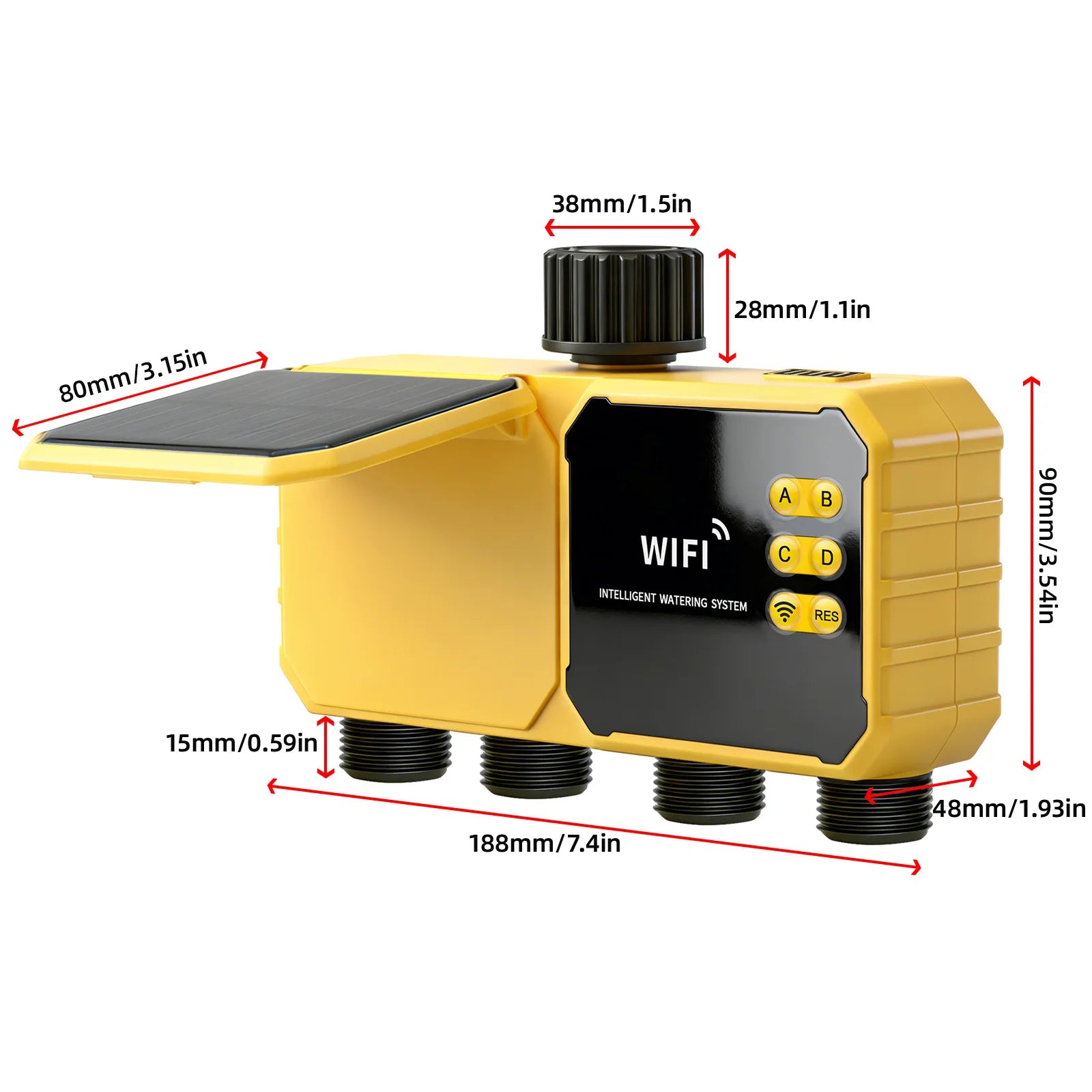

Specifications：

Model: WiFi Solar 4-Way Water Timer

Power Supply: Solar Powered + Type-C USB

Working Voltage: DC 5V

Wireless Protocol: 2.4GHz WiFi

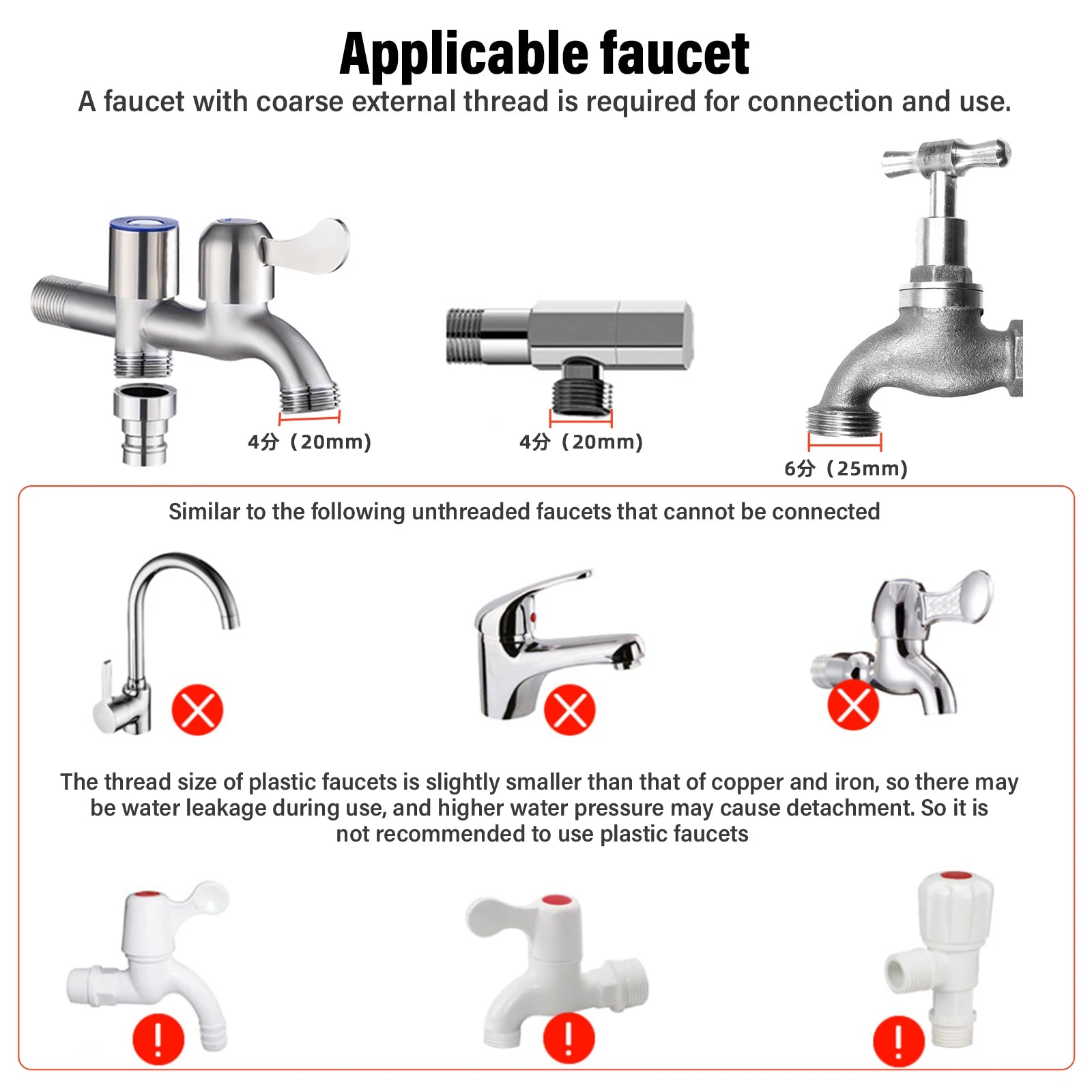

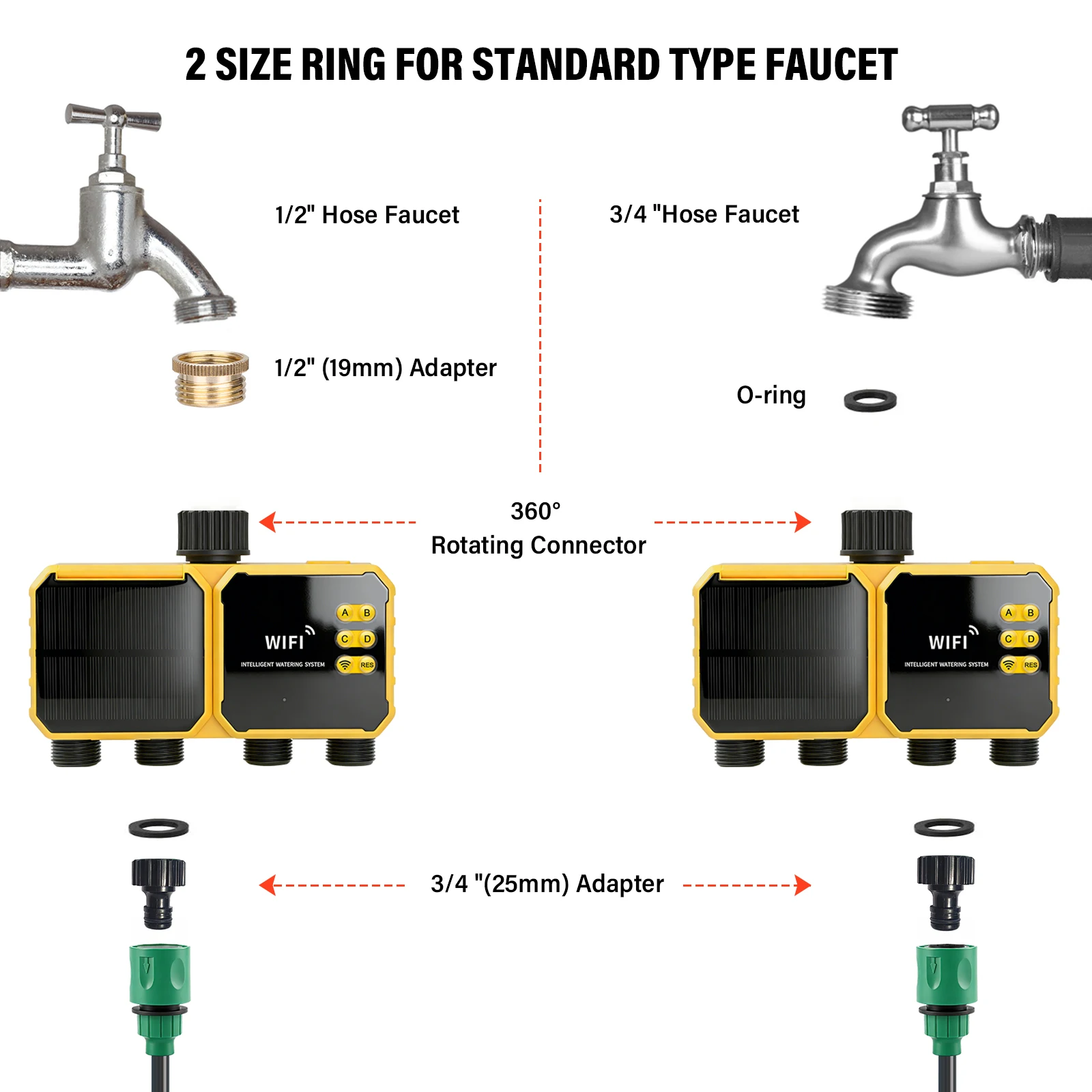

Water Inlet Thread: 1/2" or 3/4" (with adapter)

Water Outlet Thread: 3/4" Standard G/NH Thread

Waterproof Rating: IPX6

Rain Sensing: Automatic Pause Function

Watering Zones: 4 Independent Outlets

Working Water Pressure: 0.5 bar - 8 bar (7.25 psi - 116 psi)

Max Water Flow: 35 L/min

Irrigation Duration: 1 minute to 24 hours

Watering Frequency: Daily, Weekly, Specific Days

Working Temperature: 1°C - 50°C (33.8°F - 122°F)

App Support: Smart Life / Tuya Smart

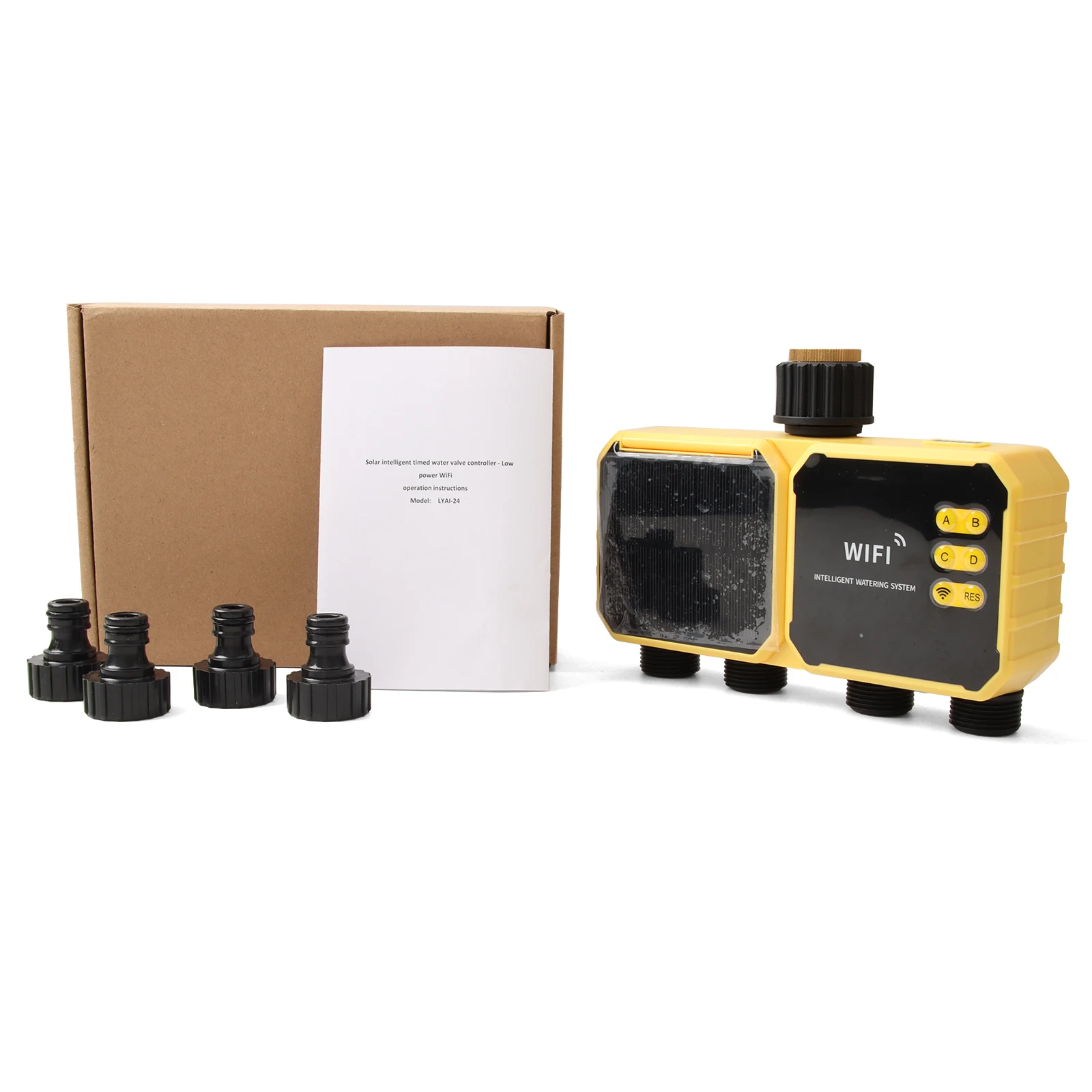

Packaging List:

Watering timer: 1

Manual: 1

Type-C to USB Cable1：1

4 point thread connector: 4

Application：The irrigation timer is suitable for home gardening enthusiasts, professional gardeners and those engaged in agricultural cultivation. It can be used in home gardens, community green spaces, greenhouses, small farms and other scenarios, which is convenient to accurately control the amount and time of plant watering .

How to Connect to the Smart Life App

Step 1: Preparation App Download: Search and install "Smart Life" in the App Store or Google Play, or scan the QR code in the manual.

Network Requirement: Ensure your phone is connected to a 2.4GHz WiFi network with Bluetooth turned on.

Step 2: Enter Pairing Mode Device Wake-up: Press and hold the WiFi button for 5 seconds to wake up the host.

Indicator Status: When the red light starts flashing, the device is in distribution network mode.

Step 3: Add Device in App Auto Search: Open the App, and it will automatically search for devices via Bluetooth; follow the prompts to add.

Manual Add: Tap the "+" in the upper right, select [Industry and Agriculture] -> [Water Valve Controller (Wi-Fi)], and follow the steps.

QR Scan: Tap the "+" and scan the device QR code in the manual to add quickly.

Step 4: Finish Connection Success Signal: Once the red light stops flashing and turns off, the connection is successful.

Retry Tip: If connection fails, press and hold the WiFi button for 5 seconds again until the red light flashes to retry.

FAQ - Frequently Asked Questions

Question 1: Can the timer still work if the WiFi is disconnected?

Answer: Yes. Once the watering schedule is successfully set in the App, the timer will continue to execute the preset plan offline even if the WiFi connection is lost.

Question 2: Does it support 5GHz WiFi?

Answer: No. This smart water timer currently only supports 2.4GHz WiFi signals to ensure better wall-penetration and stable long-distance connection in the garden.

Question 3: How long can the built-in battery last without sunlight?

Answer: With a full charge via Type-C, the built-in large-capacity battery can support normal operation for about 2-3 months even in continuous rainy weather.

Question 4: Does the rain sensing function require manual activation?

Answer: You need to turn on the "Rain Sensing" toggle in the App. Once enabled, the timer will automatically pause the watering plan when the sensor detects rain.

Question 5: Can I control the timer from two different smartphones?

Answer: Yes. You can use the "Share Device" function in the Smart Life or Tuya App to grant family members access to manage the irrigation system.

Question 6: What should I do during the winter or freezing temperatures?

Answer: To prevent freezing damage, we recommend removing the timer from the faucet and storing it indoors when temperatures drop below 1°C (33.8°F).
